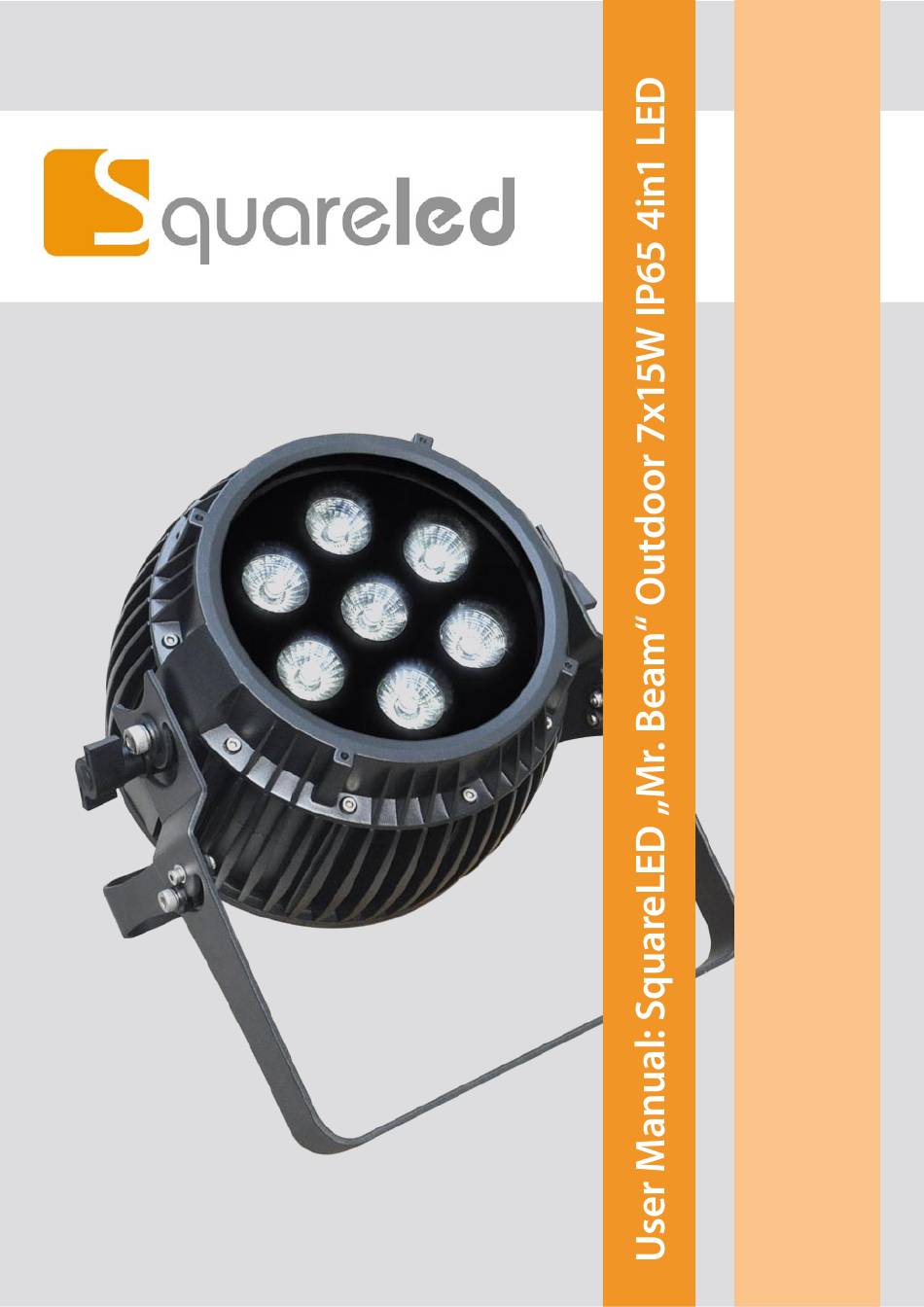

Squareled Mr. Beam User Manual

Outdoor 7x15w ip65 4in1 led
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mr. Beam and is the answer not in the manual?

Questions and answers

Related Manuals for Squareled Mr. Beam

Summary of Contents for Squareled Mr. Beam

  • Page 2: Brief Introduction

    Manual | „Mr Beam“ 1. Introduction Brief Introduction Thank you for purchasing our „Mr. Beam“. Please read these instructions carefully before begin and operate the fixtures according to these instructions to avoid any possible damages and accidents causes by misusage Product introduction „Mr.

  • Page 3: Outside Size Picture

    Manual | „Mr Beam“ Safety instruction » Make sure the power supply voltage are consistent with this lights, Ensure the use of voltage is in the range of the request technical parameter » Before the installation, please check the light’s fasteners and mechanical structure have been received in good condition and appear no damage »...

  • Page 4: Main Function

    Manual | „Mr Beam“ 4. Main Function » high quality LED: low consumption, brightness, stable capability and long life » each color of LED with 16666 dimming. RGB can make over 16.7 million colors, adding W can achieve many effects. »...
  • Page 5 Manual | „Mr Beam“ DMX Channel (9CH) Channel DMX Value Control Function 0–255 General dimming 0–255 R 0–100% 0–255 G 0–100% 0–255 B 0–100% 0–255 W 0–100% 0–10 Close Strobe 11–255 Adjust Strobe Speed (1–20Hz) 0–14 Dimming 15–29 30–44 45–59 60–74 75–89 90–104...

  • Page 6: Display Operation

    Manual | „Mr Beam“ 6. Display Operation » MENU: access the menu or return to a previous menu option » ENTER: select the current menu option » UP: menu selection or parameter increments » DOWN: menu selection or parameters decrease 7.
  • Page 7 Manual | „Mr Beam“ Operating instruction: MENU (UP/DOWN) + ENTER + UP/DOWN + ENTER Exp: Select the DMX mode, Here are the operation details: » Press the MENU, go back to the initial setting » Press UP/DOWN, display “Addr” » Press ENTER to change the content, the display will glinting at this moment »...

  • Page 8: Operating Control Instruction

    Manual | „Mr Beam“ 8. Operating Control Instruction Master The master should always working as a master as long as it is not set in a DMX mode whatever other modes it is. And it send out the signal so that the slave synchronous with it. To avoid the host signal and DMX512 signals interfere with each other, should cut off the DMX512 signals.
  • Page 9 Manual | „Mr Beam“ Noted: In order to avoid failures and interference signal transmission, we connect a resistance 120Ω (1/4W) at the end of the DMX connecting as below: Termination reduces signal errors and avoids signal transmission problems and interference. It is always advisable to connect a DMX terminal, (Resistance 120 Ohm 1/4 W) between Pin 2 (DMX –) and Pin 3 (DMX +) of the last fixture.

  • Page 10: Troubleshooting

    Manual | „Mr Beam“ 11. Trouble Shooting Problem Checking Way Can not turn on the light » Check the power source plug is in normal or not » Check the switch of the lights is off or on » Check the fuse if in normal DMX can not control it »...
  • Page 11 Manual | „Mr Beam“ » Life span: 50000~100000hours » Control Signal: DMX512, sound activated, auto run » Control mode: stand alone/ sound activated » Channel: 5CH, 6CH, 9CH » Color effect: RGBW mixing » Function Effect: dimmer, strobe, gradual change, sound activated »...
