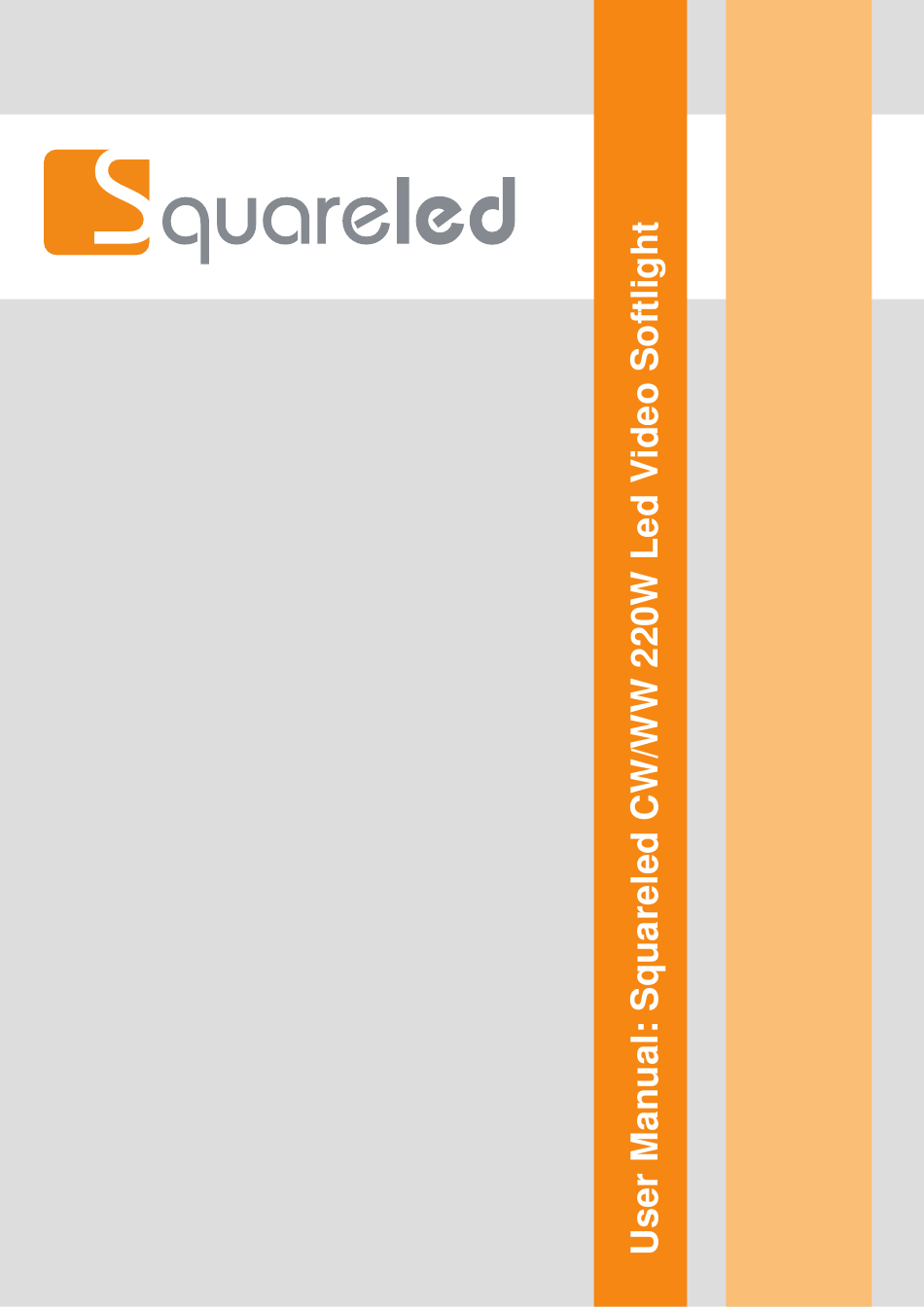

- Page 2 SQUARELED CW/WW 220W LED Video Softlight IP20 User Manual...
-
Page 3: Safety Instructions
SAFETY INSTRUCTIONS CAUTION Be careful with your operations.With a dangerous voltage you can suffer a dangerous electric shock when touching wires! This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. - Page 4 Unpacking Thank you for choosing our 220W LED Video Panel Light. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs.
-
Page 5: Specifications
FEATURES & SPECIFICATIONS Features •1920PCS premium quality and high CRI LED (Cool White+Warm White) •Accurate color temperatures tunable from 3000K to 6000K •50,000 hours life span and low power consumption •Color Rendering Index(CRI): Ra≥95 •Flat and even projection with soft edge •High intensity, long throw and 180°... -
Page 6: Product Structure
PRODUCT STRUCTURE:： DMX-512 CONTROL CONNECTIONS Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors. - Page 7 DMX IN DMX OUT POWER IN COMMON 1:Ground 2:Data(-) 3:Data(+) DMX- DMX512 OUT DMX512 OUT DMX IN DMX OUT 3-Pin XLR 3-Pin XLR 3-Pin XLR Socket 3-Pin XLR Socket For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator.
-
Page 8: Menu Operations
120 Ω PIN3 PIN2 MENU OPERATIONS 1. Main Menu 1.1. Main Menu Reverse Display Running Status Vice Menu Button 1.2. Operation Status Mode Display Description DMX Mode Dxxx “D”stand for DMX mode Temperature M-WP “M”stand for stand Master, “WP”stand for“White Mode Point”... - Page 9 2. DMX Menu & Channel data 3. DMX menu Enter DMX mode: 1. If you are in DMX mode,the main menu will turn into DMX menu automatically after 5 seconds 2. Menu of DMX address (DMX mode) will turn into DMX menu automatically after 5 seconds Quit DMX mode 1.
- Page 10 4.Vice Menu n u t a t e p e r a t i o n e n u t a t e p t i o n a r k...
-
Page 11: Operation
5.Operation 5.1 Screw operation For example of “changing the brightness under the master mode” 1. In main menu, turn the knob 1 and choose “Master”, press knob 1 for enter. 2. In the menu of “white point”, turn the knob 1, choose the “Intensity” 3. - Page 12 OPERATION INSTRUCTION ·The 220W LED Video Panel Light is an LED light for on-site decoration purpose. ·Don’t turn on the fixture if it’s been through severe temperature difference like after transportation because it might damage the light due to the environment changes. So make sure to operate the fixture until it is in normal temperature.
-
Page 13: Installations
·Keep the original packages if any second shipment is needed. ·Don’t try to change the fixtures without any instruction by the manufacturer or the appointed repairing agencies. ·It is not in warranty range if there are any malfunctions from not following the user manual to operate or any illegal operation, like shock short circuit, electronic shock, lamp broke, etc. -
Page 14: Cleaning And Maintenance
Cleaning and maintenance Now ignoring maintenance and cleaning is very good way of creating problems "down the road" and many companies and installations do just that. However the net result is, no matter what the fixture, premature failure! Changing the oil in a car, most people do on a regular basis. So with the fixtures, regular maintenance it an excellent practice, if you want the fixtures to last. - Page 15 Clean the fans! Turn off the led video panel light. Using a small vacuum cleaner, suck the dust and “fur balls” out. Do not use a can of co². That will just blast the dust and dirt everywhere! The fans keep the LED cool and keep the electronics cool too. Without the fan working efficiently and dust free, the fixtures will fail and that will be a lot more costly than having someone vacuum the fixtures on a regular basis.
- Page 16 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
