Squareled Element 19X40W Washlight User Manual

Ip65
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Element 19X40W Washlight and is the answer not in the manual?

Questions and answers

Related Manuals for Squareled Element 19X40W Washlight

Summary of Contents for Squareled Element 19X40W Washlight

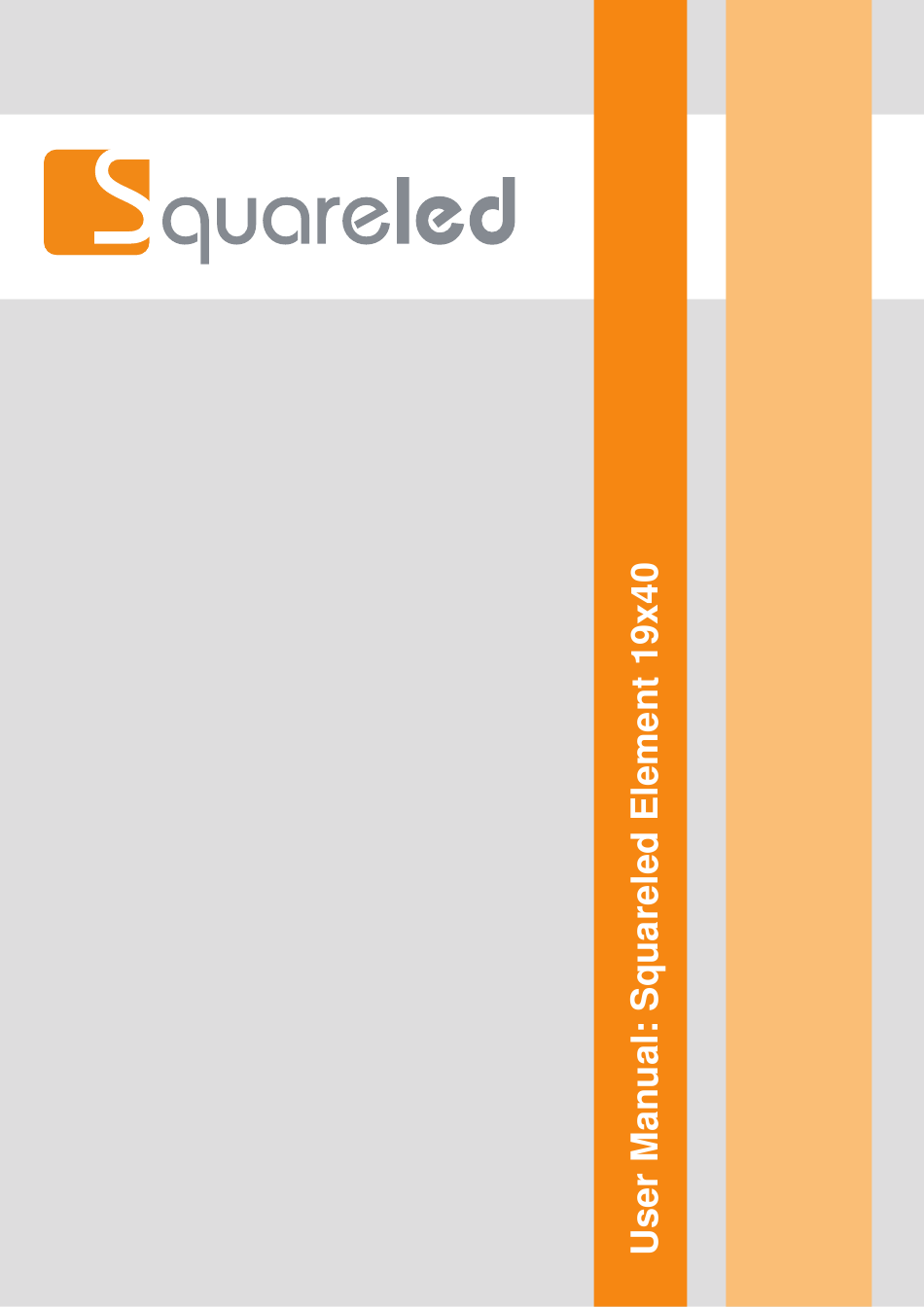

  • Page 2 SquareLED Element 19X40W Washlight IP65 User Manual...
  • Page 3 1. Unpacking Thank you for choosing our fixture. For your own safety, please read this manual before installing the device. This manual covers the important information on installation and applications. Please install and operate the fixture with following instructions. Meanwhile, please keep this manual well for future needs. This fixture is made of a new type of high temperature strength of engineering plastics and cast aluminum casing with nice outlook.
  • Page 4 ( mm) 2 . Product dimension...
  • Page 5 3. Safety Instructions This device has left the factory in perfect condition. In order to maintain this condition and to ensure a safe operation, it is absolutely necessary for the user to follow the safety instructions and warning notes written in this user manual. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately.
  • Page 6 does not necessarily mean that the device is defective, it should decrease gradually. Please don't project the beam onto combustible substances. Fixtures cannot be installed on combustible substances, keep more than 50cm distance with wall for smooth air flow, so there should be no shelter for fans and ventilation for heat radiation.
  • Page 7 -Make sure the lens are in good condition. It’s recommended to replace the units if there are any damages or severe scratch. -Make sure the fixture is operated by qualified personnel who knows the fixture before using. -Keep the original packages if any second shipment is needed. -Don’t try to change the fixtures without any instruction by the manufacturer or the appointed repairing agencies.
  • Page 8 Fixture installation must always be secured with a secondary safety attachment, such as an appropriate safety cable. Never stand directly below the device when mounting, removing, or servicing the fixture from a periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself.
  • Page 9 Regardless of the rigging option you choose for our fixture, always be sure to secure your fixture with a safety cable. The fixture provides a built-in rigging point for a safety cable on the hanging bracket as illustrated above. Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle.
  • Page 10 For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.
  • Page 11 201-255 Random strobe from slow to fast 0-255 1- 100% Red linear dimmer from dark to bright 0-255 1- 100% Green linear dimmer from dark to bright 0-255 1- 100% Blue linear dimmer from dark to bright 0-255 1- 100% White linear dimmer from dark to bright Color temperature 0-255 Linear color temperature control...
  • Page 12 26 channels mode Function Details 0-255 Pan movement control Pan fine 0-255 Pan fine control Tilt 0-255 Tilt movement control Tilt fine 0-255 Tilt fine control Pan/Tilt speed 0-255 Speed from fast to slow ZOOM 0-255 ZOOM movement control 0- 127 0 to 60 degree 128- 189 Unlimited anticlockwise rotation from fast to slow...
  • Page 13 Clockwise rotate from fast to slow, operate against 17CH 0- 127 128-255 Anti-Clockwise rotate from slow to fast, operate Dynamic effect speed against 17CH Backgroup R 0-255 Backgroup in Red color Backgroup G 0-255 Backgroup in Green color Backgroup B 0-255 Backgroup in Blue color Backgroup W...
  • Page 14 0-255 Macro color Marco color effect No function, Light off 4- 103 Strobe with the same step from slow to fast 104- 107 No function, light up 108-207 Pulse strobe from fast to slow Strobe 208-212 No function, light up 213-251 Random strobe from slow to fast 252-255...
  • Page 15 8- 14 Static effects 15-87 Dynamic effects 88-255 No function Dynamic shape anti-clockwise rotate from fast to 0- 127 Shape Speed ( 22th slow channel in dynamic effect) 128-255 Dynamic shape clockwise rotate from slow to fast 0-255 Reversed channel, no function temporary Reversed Shape R 0-255...
  • Page 16 White Fine 0-255 White dimmer Linear CTO 0-255 White Fine White fine control 0-255 Color temperature linear control 0-255 Macro color Marco color effect No function, Light off 4- 103 Strobe with the same step from slow to fast 104- 107 No function, light up 108-207 Pulse strobe from fast to slow...
  • Page 17 dynamic effect) 0-255 Reversed channel, no function temporary Reversed 0-255 Shape R Shape in Red color Shape G 0-255 Shape in Green color Shape B 0-255 Shape in Blue color Shape W 0-255 Shape in White color Shape Dimmer 0-255 Shape dimmer 0- 100% Background Dimmer 0-255...
  • Page 18 78 Channels mode Function DMX Value Details 0-255 Red dimmer 0-255 Red Fine Red fine control 0-255 Green Green dimmer 0-255 Green Fine Green fine control 0-255 Blue Blue dimmer 0-255 Blue Fine Blue fine control 0-255 White White dimmer 0-255 White Fine White fine control...
  • Page 19 LENS Rotation 192-255 Unlimited clockwise rotation from slow to fast 0-255 Red dimmer 1 LED 1 red dimmer 0-255 LED 1 green dimmer Green dimmer 1 0-255 Blue dimmer 1 LED 1 blue dimmer 0-255 Red dimmer 2 LED 2 red dimmer 0-255 LED 2 green dimmer Green dimmer 2...
  • Page 20 0-255 0- 100 linear dimmer from dark to bright Dimmer 0-255 Dimmer Fine Dimmer fine control 0-255 Pan movement control 0-255 Pan Fine Pan fine control 0-255 Tilt Tilt movement control 0-255 Tilt Fine Pan fine control 0-255 Reversed channel, no function temporary Reversed 0-239 No function...
  • Page 21 9- 15 Every 1 DMX value is one kind of background shape Background shape (needs to light up the LED via 1st to 12th 16-255 No function channel) 0-255 Reversed channel, no function temporary Reversed LED ring dimmer 0-255 LED ring 0- 100% linear dimmer No function, Light on LED ring strobe 5-250...

  • Page 22: Display Instruction

    0-255 LED 18 Blue LED 18 Blue 0- 100% linear dimmer 0-255 LED 18 White LED 18 White 0- 100% linear dimmer 0-255 LED 19 Red LED 19 Red 0- 100% linear dimmer 0-255 LED 19 Green LED 19 Green 0- 100% linear dimmer 0-255 LED 19 Blue LED 19 Blue 0- 100% linear dimmer...

  • Page 23: Photometric Data

    Language Language EN/CH Smooth Smooth dimmer mode Fast Fast dimmer mode Dimmer Speed Linear Linear dimmer Setting SCurve S curve dimmer Dimmer Curve Square Square dimmer I Square I Square dimmer Pan/Tilt Pan/Tilt reset Reset Functions Zoom Zoom reset All reset Factory Reset Factory mode YES/NO...
  • Page 24 LUX Data of 30 degree beam angle: 3470 lux@2m 909 lux@4m 425 lux@6m 237 lux@8m 155 lux@10m 9060 lux@2m 2350 lux@4m 1110 lux@6m 625 lux@8m 403 lux@10m 17720 lux@2m 4650 lux@4m 2200 lux@6m 1230 lux@8m 795 lux@10m 11000 lux@2m 2830 lux@4m 1350 lux@6m 750 lux@ 8m 488 lux@10m...
  • Page 25 10. Key Features Voltage: AC100V~240V 50-60HZ Rated Power: 760W LED Source: 19x40W high power RGBW 4 in 1 LEDs Zoom: 1:6 zoom range from 7 to 42 degree...
  • Page 26 Control Mode: DMX512, Sound-actived, Master/slave DMX Channels: 22/26/36/43/78/119 six channel mode Dimmer: 0-100% linear dimmer with 4 kinds of dimmer curve. Pan: 540°+16 bit fine Tilt: 250°+16 bit fine Display: LCD display with touch buttons. IP: IP65 Fixture dimension: 434*260*577mm N.W: 22 Kg G.W: 26 Kg (1pc/ctn) G.W: 75 Kg (2pcs/case)
  • Page 27 11. Maintenance and Cleaning The following points have to be considered during the inspection: 1. All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded. 2. There must not be any deformations on the housing, color lenses, fixations and installation spots (ceiling, suspension, trussing).
  • Page 28 Das Lichttechnikhaus Vertriebs GmbH Rudolf-Diesel-Str. 3, D-89312 Günzburg Telefon +49 (0) 82 21 207 98-0 +49 (0) 82 21 207 98-69 E-Mail info@lth-gmbh.de www.lth-gmbh.de...
