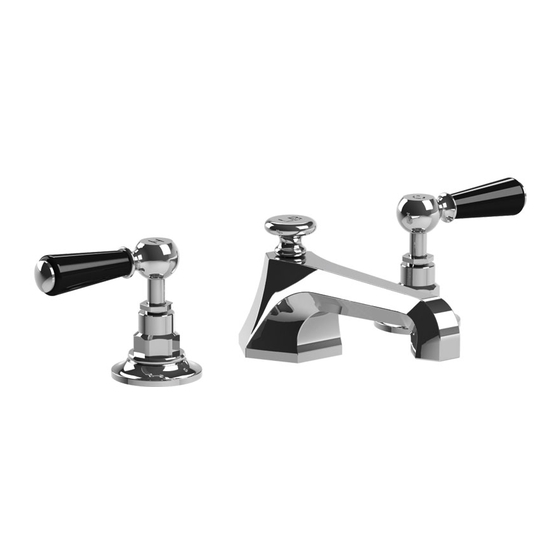

Cross handle mackintosh 3-hole basin mixer with pop-up waste , white lever mackintosh 3-hole basin mixer with pop-up waste , black lever mackintosh 3-hole basin mixer with pop-up waste
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTIONS
C1-1103 (LB1228)
CROSS HANDLE MACKINTOSH 3-HOLE BASIN MIXER WITH POP-UP WASTE
CW-1103 (WL1228)
WHITE LEVER MACKINTOSH 3-HOLE BASIN MIXER WITH POP-UP WASTE
CB-1103 (BL1228)
BLACK LEVER MACKINTOSH 3-HOLE BASIN MIXER WITH POP-UP WASTE
C1-1103 (LB1228)
CW-1103 (WL1228)
CB-1103 (BL1228)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1-1103 (LB1228) and is the answer not in the manual?

Questions and answers

Related Manuals for Lefroy Brooks C1-1103 (LB1228)

Summary of Contents for Lefroy Brooks C1-1103 (LB1228)

  • Page 1 INSTALLATION INSTRUCTIONS C1-1103 (LB1228) CROSS HANDLE MACKINTOSH 3-HOLE BASIN MIXER WITH POP-UP WASTE CW-1103 (WL1228) WHITE LEVER MACKINTOSH 3-HOLE BASIN MIXER WITH POP-UP WASTE CB-1103 (BL1228) BLACK LEVER MACKINTOSH 3-HOLE BASIN MIXER WITH POP-UP WASTE C1-1103 (LB1228) CW-1103 (WL1228) CB-1103 (BL1228)
  • Page 2 Dimensions in Inches (& Millimetres) C1-1103 (LB1228) 6 5/16” (160mm) 5 1/2” (140mm) 2 3/16” (55mm) 1/2-14NPSM-2A 2 1/8” (54mm) 1 1/2-18UNEF 12”Max (305mmMax) 1 1/4” (31.75mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
  • Page 3 Dimensions in Inches (& Millimetres) CW-1103 (WL1228) 3 5/16” 6 5/16” (84mm) (160mm) 5 1/2” (140mm) 2 3/16” (55mm) 2 1/8” 1/2-14NPSM-2M (54mm) 1 1/2-18UNEF 12”Max (305mmMax) 1 1/4” (31.75mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.
  • Page 4 Dimensions in Inches (& Millimetres) CB-1103 (BL1228) 6 5/16” 3 5/16” (84mm) (160mm) 5 1/2” (140mm) 2 3/16” (55mm) 1/2-14NPSM 2 1/8” (54mm) 1 1/2-18UNEF 12”Max (305mmMax) 1 1/4” (31.75mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process.

  • Page 5: What You Need To Know

    What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula...

  • Page 6: Installation Procedure

    Steps 1-2 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Cold Install the Hot and Cold side-body and Fix the spout. handle assembly.
  • Page 7 Steps 3-4 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install the Pop-Up Waste. Install the hose.
  • Page 8 Steps 5 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. After installing faucet, open the hot and cold supplies to check for leaks. Turn on faucet handle for one minute to flush debris from faucet.

  • Page 9: Exploded View

    Exploded View Parts List C1-1103 (LB1228) Ceramic cap (129312C) Ceramic cap (129312-50) Connector (015001W) Set screw (292598) Pop-up knob (124408) Nut (009002) Handle (029721) O-ring (048027N) Oil-seal (010095N) O-ring (048085) Spout (002252W) Aerator insert (553648N) Canopy (018220) O-ring (004072N) Aerator housing (305800N-50) Clip (012242) O-ring (004001N) Pop-up rod (125412)
  • Page 10 Exploded View Parts List CW-1103 (WL1228) Screw (017094) Ceramic cap (129312-50) Washer (013202) Lever cap (109376) Pop-up knob (124408) Washer (060041) Handle sleeve (108924) Lever seat (205144) Pop-up rod (110041) O-ring (048085) O-ring (048027N) Adaptor (077125) Washer (013224) Canopy (018220) Aerator housing (305800N-50) Clip (012242) Spout (002252W)
  • Page 11 Exploded View Parts List CB-1103 (BL1228) Handle sleeve (108924) Connector (015001W) Aerator insert (553648N) Screw (017094) O-ring (004115N) Aerator housing (305800N-50) Lever cap (109376) Connection tube (014016W) Pop-up rod (125412) Washer (013224) O-ring (004043N) Adaptor (077125) Clip (012242) Brass tube (043412N) O-ring (004005N) Stem extension (110461) O-ring (004001N)
  • Page 12 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
