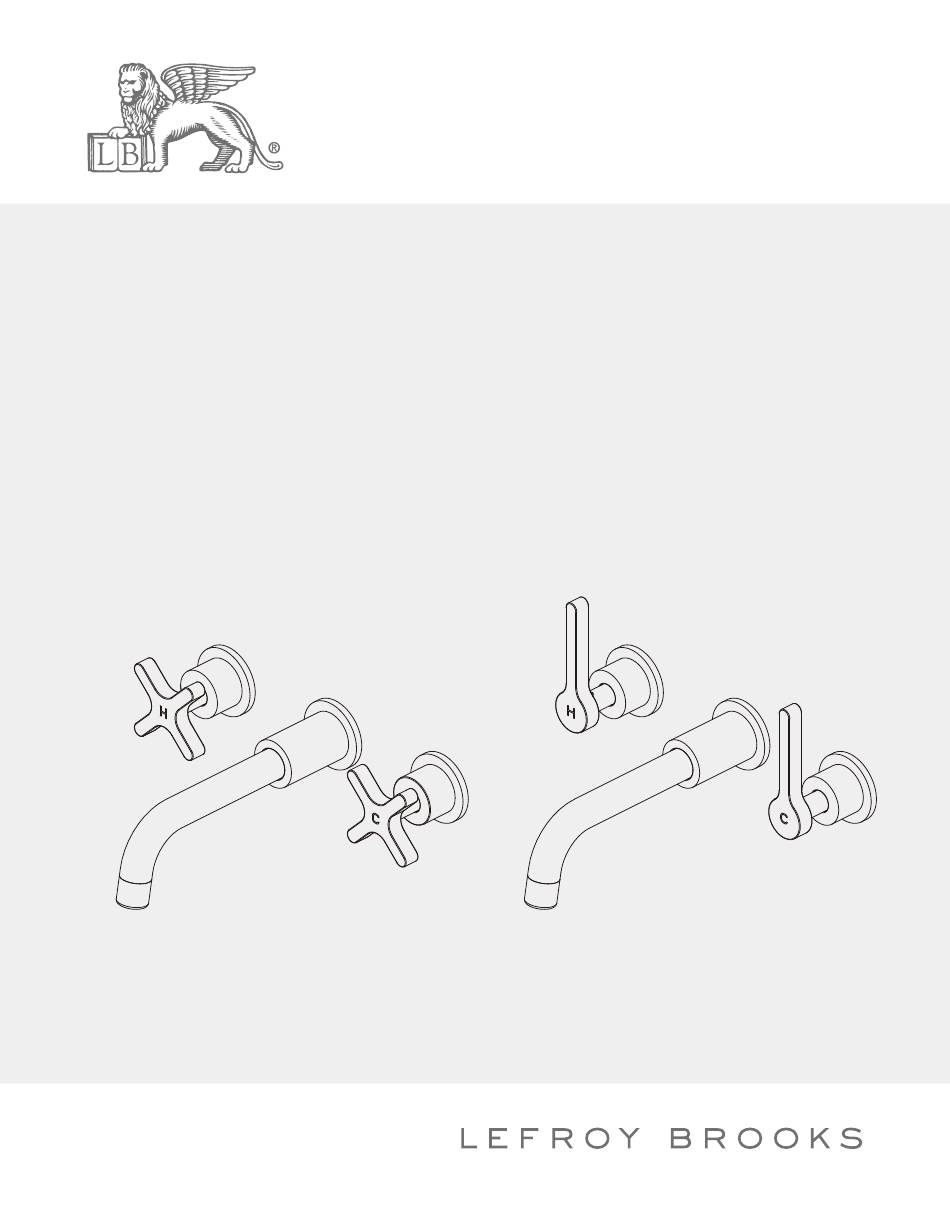

- Page 1 INSTALLATION INSTRUCTIONS K1-1400 CROSS HANDLE 3-HOLE WALL BASIN MIXER TRIM ONLY, TO SUIT R1-4015 ROUGH K1-1401 LEVER 3-HOLE WALL BASIN MIXER TRIM ONLY, TO SUIT R1-4016 ROUGH K1-1400 K1-1401...
- Page 2 Dimensions in Inches (& Millimetres) K1-1400 8" (203.2mm) 1 15/16∼ 2 7/16" (49∼65mm) 3-Ø " 1 1/8" (3-Ø50mm) (29mm) 7 5/8" (194mm) 8 1/16" (205mm) K1-1401 1 15/16∼2 7/16" (203mm) (49∼65mm) 1 1/8" (29mm) 3-Ø 2" (3-Ø50mm) 7 5/8" (194mm) 8 1/16"...
-
Page 3: What You Need To Know
What you need to know Tools: Maintenance Adjustable Wrench Your new bathroom faucet is designed for years Groove Joint Pliers of trouble-free performance. Hacksaw Keep it looking new by cleaning it periodically with Phillips Screwdriver a soft cloth. Avoid abrasive cleaners, wire wool and Pipe Tape harsh chemicals as these will dull the finish and Spatula... -
Page 4: Installation Procedure
Steps 1-4 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Once the front wall is finished, remove the Loosen the two grub screws from the spout. - Page 5 Steps 5-6 Installation Procedure Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install the handle by tightening the fixing After installing faucet, remove aerator and set screw properly.
-
Page 6: Exploded View
Exploded View Parts List K1-1400 Handle ( C ) (506151C) Escutcheon (071475) Screw (008198) Screw (008233) O-ring (004009) O-ring (004007) Screw (292598) Aerator housing (305779N-54) Canopy (018965) Stem extension (110327) Aerator insert (553661N) Escutcheon (071271) O-ring (072028) Oil-seal (010805N) Handle ( H ) (506151H) - Page 7 Exploded View Parts List K1-1401 Handle ( C ) (069699C-50) Canopy (018964) Screw (008198) Adaptor (067964) Escutcheon (071475) O-ring (004007) Screw (008744) O-ring (004009) Canopy (018965) Screw (008233) Aerator housing (305779N-54) Escutcheon (071271) Screw (292598) Aerator insert (553661N) Handle ( H ) (069699H-50) Stem extension (110327) Oil-seal (010805N) Allen key (031000)
- Page 8 The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).
