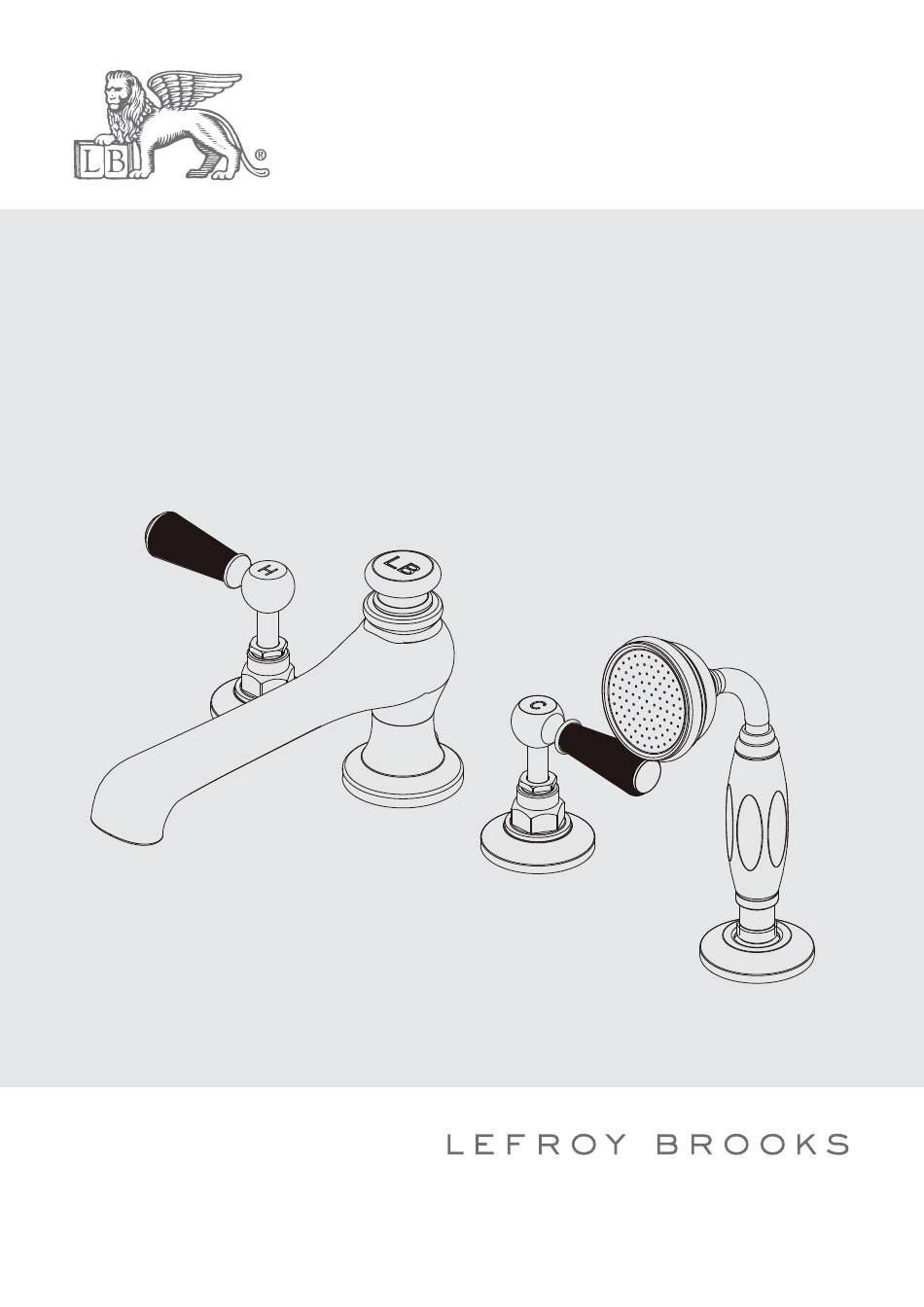

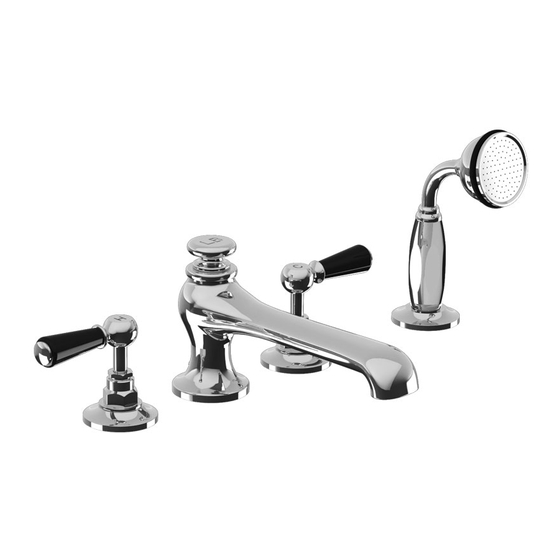

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS CB-2153 BLACK LEVER 4-HOLE BATH SET WITH DIVERTER & PULL-OUT METAL-FINISH HAND SHOWER TRIM ONLY, TO SUIT R1-4025 ROUGH...
-
Page 2: Table Of Contents
Contents Dimensions Instal ation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 8"~12" 203mm~305mm Ø 2 3/8" Ø 2 3/8" Ø 2 3/8" (Ø60mm) (Ø60mm) (Ø60mm) Ø2 1/2" (Ø63.5mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Instal Ation Procedure
Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Make sure that main water supply is shut off before further installation. Take off all rubber protective caps, plugs from valves, as well as the underneath protective bubble bags. - Page 5 Installation Procedure Steps 3-4 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Install the adaptor and diverter rod to the body and screw tightly. Place spout over spout hub.
- Page 6 Installation Procedure Steps 5-6 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Attach hand shower with final trim installation. After installing faucet, open the hot and cold supplies to check for leaks. Turn on faucet handles...
-
Page 7: Parts List
Parts List Exploded view Lever cap (109376) Screw (008486) O-ring (072022) Lever (108924) Escutcheon (215478) O-ring (004079N) Screw (017094) Diverter knob (124411-50) Adaptor (057929) O-ring (072060) O-ring (072098) Lever adaptor ( C ) (205143C) Lever adaptor ( H ) (205143H) Diverter rod (125301) Hand shower (S2110311) O-ring (048085) -
Page 8: Fault Finder
Fault Finder Fault Cause Rectification Leaks around the base of spout. Gasket is misfitted or damaged. Check for gasket placement. Too low flow of showerhead. Showerheads clogged. Remove and clean showerheads. May need to replace if clogged. Leaks around the connection Gasket is misfitted or damaged. -
Page 9: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. -
Page 10: Guarantee
Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 11 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
