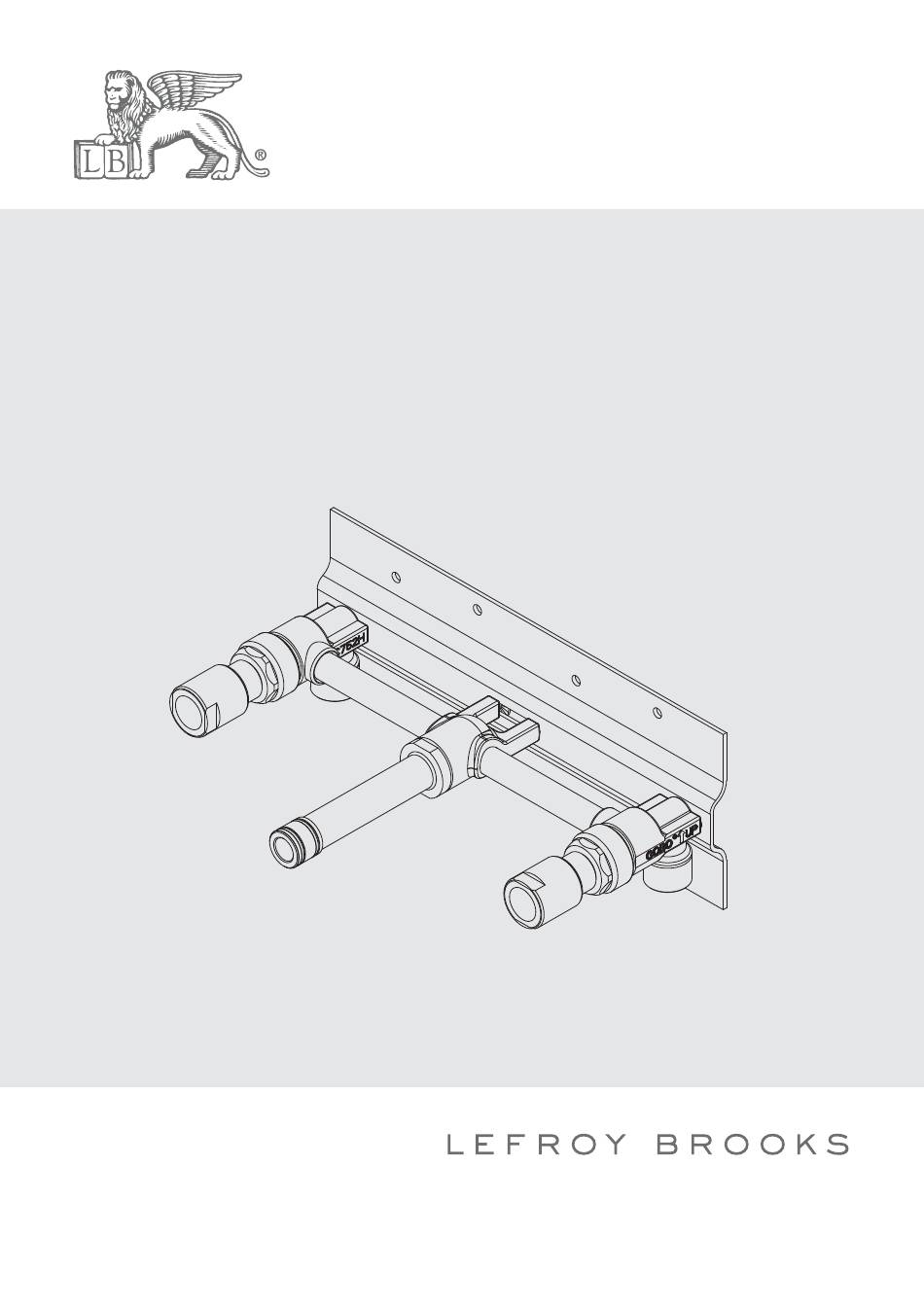

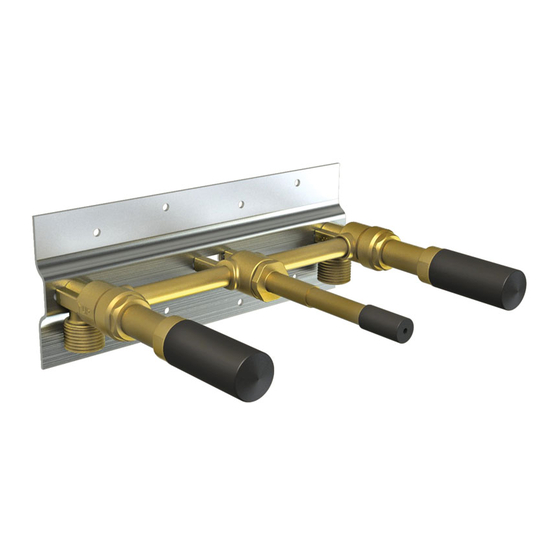

- Page 1 INSTALLATION, OPERATING & MAINTENANCE INSTRUCTIONS R1-4027 CROSS HANDLE WALL-MOUNTED 3-HOLE BASIN MIXER ROUGH TO SUIT M1-1110...
-
Page 2: Table Of Contents
Contents Dimensions Instalation Procedure Parts List Fault Finder Safety Tips, Care and Maintenance Guarantee... -
Page 3: Dimensions
Dimensions in Inches (& Millimetres) 9 7/16" 3 5/8" (239mm) (92mm) Wall surface Protective Cap Ø9/16" (Ø15mm) Protective Cap M24X1.5-6g 7 15/16" Protective Cap (202mm) Whilst every effort is made to ensure accuracy, design and dimensions are subject to change without notice as part of the company’s product development process. -
Page 4: Instalation Procedure
Installation Procedure Steps 1-2 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Wall surface Protective cap Protective cap 3-Ø30mm~35mm 101.6 101.6 Before installation, make sure that the 2 distance between rough and wall is as indicated in the above figure. Install valve body onto internal wall. - Page 5 Installation Procedure Step 3 Lefroy Brooks always recommends that plumbing products be installed by a licensed professional. Shut off main water supply before installation. Connect the inlets with water supply.
-
Page 6: Parts List
Parts List Exploded view Protective cap (038007) Back plate (126671-S) Body (002727W) Adaptor (067733) O-ring (004010N) Retainer nut (016231) Adaptor (077126W) Cartridge assembly (507909N) O-ring (072042N) Teflon tape (203000) Protective cap (045225) Screw (008013) -
Page 7: Fault Finder
Fault Finder Fault Cause Rectification Drips from spout. Gasket is misfitted or damaged. Check for gasket placement. Leaks around handle. Cartridge has come loose or Tighten/reinstall the cartridge or damaged. replacement the cartridge if it is damaged. -
Page 8: Safety Tips, Care And Maintenance
Safety Tips, Care and Maintenance Safety Tips If you are soldering during faucet installation,remove cartridges, seats, gaskets and washers prior to applying flame, otherwise you will void the warranty. Cover drain openings to avoid losing small parts. When cutting or soldering pipe, use safety glasses to protect your eyes. Important Points Prior to beginning installation. turn off the cold and hot water lines and open the old faucet to release built-up pressure. Overtightening nuts may cause damage. Wrap all threaded connections with pipe tape available at your local plumbing supply store. Always wrap in a clockwise direction. The fittings should be installed by a state-licenced plumber. Please note: When there is a difference in water pressure between hot and cold supplies to the mixing valve, the pressures should be equalized by a plumber in accordance with best practice and legislation. Maintenance Your new bathroom faucet is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with a soft cloth. Avoid abrasive cleaners, wire wool and harsh chemicals as these will dull the finish and void your warranty. Routine Maintenance The frequency and extent of attention required will vary according to prevailing site and operational conditions, however a 12 monthly maintenance schedule is recommended. If the product has operated satisfactorily for some time, but performance has been degraded, please check the Fault Finder section to identify the problem. Maintenance Check List • Worn or damaged seals and washers • Damaged seal faces • Thread wear • Incorrect adjustment • Component failure • Debris or limescale build-up... -
Page 9: Guarantee
Guarantee Guarantee of Quality This product is guaranteed against faulty materials and workmanship for 12 months from date of purchase. For the guarantee to be valid, the unit must be installed by a competent person, in accordance with the instruction booklet. Any part found to be defective during the guarantee period, will (at our option) be repaired or replaced, free of charge, provided the unit has been installed, and properly used in accordance with the instruction booklet. Our products correspond to the valid technical and water supply standards as well as the relevant approvals requirements. We guarantee them to be free of design and production faults at the time of delivery and that with correct use and care in accordance with our printed instructions they will function reliabl y. Guarantee period The guarantee is valid in private homes for 5 years from the purchase date. Proof of purchase • has to be provided when making a guarantee claim. By use in commercial or institutional applications the guarantee is valid for 1 year after first use. • To make a guarantee claim, proof of purchase or, the beginning of use is required. Not Covered by this Guarantee Damage or defects arising from incorrect installation, improper use or lack of maintenance. Installed product damaged in transit Consequential loss, damage or product removal and installation costs. Lefroy Brooks is not responsible for any on site labour charges. - Page 10 TELEPHONE: 718-302-5292. FAX: 718-302-4177 The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.
