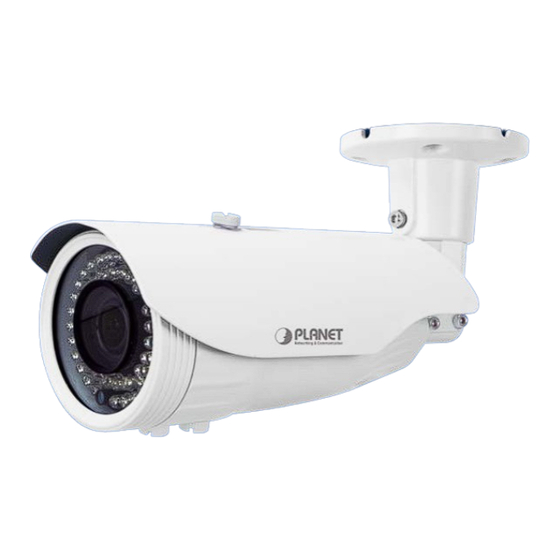

Planet Networking & Communication ICA-3460V User Manual

H.265 4mp poe bullet ir ip camera with vari-focal lens
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1080p IR Bullet PoE IP Camera
ICA-3460V
H.265 4MP PoE Bullet IR IP
Camera with Vari-focal Lens
ICA-3460V
- 1 -

Advertisement

Table of Contents
loading

Related Manuals for Planet Networking & Communication ICA-3460V

Summary of Contents for Planet Networking & Communication ICA-3460V

  • Page 1 1080p IR Bullet PoE IP Camera ICA-3460V H.265 4MP PoE Bullet IR IP Camera with Vari-focal Lens ICA-3460V - 1 -...
  • Page 2 1080p IR Bullet PoE IP Camera ICA-3460V Copyright Copyright  2019 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.
  • Page 3 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision User’s Manual of PLANET H.265 4MP PoE Bullet IR IP Camera with Vari-focal Lens Model: ICA-3460V Rev: 1.0 (June, 2019) Part No. EM-ICA-3460V_v1.0 - 3 -...

  • Page 4: Table Of Contents

    Features ........................11 Product Specifications ..................... 12 Chapter 2. Hardware Interface ................... 14 Physical Descriptions ....................14 2.1.1 ICA-3460V Physical Details ..............14 2.1.2 I/O Control Instruction ................15 Hardware Installation ....................17 Initial Utility Installation .................... 18 2.3.1 Installing PLANET IP Finder II .............. 18 2.3.2...
  • Page 5 1080p IR Bullet PoE IP Camera ICA-3460V Cloud Setting ......................47 Advanced Tool ......................48 3.7.1 Time Setting ..................48 3.7.2 Motion Detection ................... 49 3.7.3 User Management ................51 SysInfo Management ....................51 3.8.1 System Update ..................51 3.8.2 Reboot System ..................

  • Page 6: Chapter 1. Product Introduction

    1.2 Overview Compact and Cost-effective 4MP Outdoor Surveillance PLANET ICA-3460V PoE IP Camera delivers excellent picture quality in H.265 four mega-pixel resolutions at 30 frames per second (fps). Incorporating the new CMOS image sensor and 30- to 45-meter IR illuminators, which are specially designed for surveillance applications, the ICA-3460V provides sharp images under all lighting conditions.
  • Page 7 ICA-3460V High Efficiency Video Compression The ICA-3460V employs the H.265 technology to enable the camera to provide higher and more efficient image compression rates. If the same image quality level of H.264 is compared with that of H.265, the latter is able to save around 50% of bandwidth, meaning H.265 offers much higher quality video for less bandwidth.
  • Page 8 1080p IR Bullet PoE IP Camera ICA-3460V backlight surrounding a subject and remove noises from video signal. The result is that an extremely clear and exquisite picture quality can be produced even under any challenging lighting conditions. Water Resistance and Dust-proof Protection...
  • Page 9 Flexible Installation and Power Functionality The ICA-3460V incorporates IEEE 802.3af/at Power over Ethernet standard and is able to be powered via the network cable from a PoE power sourcing equipment such as PoE switch or PoE injector.
  • Page 10 1080p IR Bullet PoE IP Camera ICA-3460V - 10 -...

  • Page 11: Features

    1080p IR Bullet PoE IP Camera ICA-3460V 1.3 Features  Camera  1/3" progressive scan CMOS sensor  2.8~12 mm vari-focal, fixed-iris lens  0.01 lux minimum illumination at F1.2  Maximum resolution 2592 x 1520  48 built-in powerful IR illuminators, effective up to 30~45 meters ...

  • Page 12: Product Specifications

    1080p IR Bullet PoE IP Camera ICA-3460V 1.4 Product Specifications Model ICA-3460V Camera Image device 1/3" 4 mega-pixel progressive scan CMOS sensor Vari-focal 2.8~12mm, F1.2 Angle of view: Lens Horizontal: 27~90 degrees Vertical: 27~90 degrees 0.01 lux (color) @ F1.2 Min.
  • Page 13 1080p IR Bullet PoE IP Camera ICA-3460V Programming ONVIF compliant Interface Alarm Triggering Motion detection Event snapshot upload via FTP Alarm Events Notification via email, and HTTP General 12V DC, 1A Power Requirements IEEE 802.3af/at Class 3 Power Consumption 9W (IR on)

  • Page 14: Chapter 2. Hardware Interface

    1080p IR Bullet PoE IP Camera ICA-3460V Chapter 2. Hardware Interface 2.1 Physical Descriptions 2.1.1 ICA-3460V Physical Details  Front view: Item Description Keep the lens clean for excellent video quality. Lens IR LED Emits infrared light to provide light source in dark places.

  • Page 15: I/O Control Instruction

    1080p IR Bullet PoE IP Camera ICA-3460V Item Description Adjust the Zoom adjuster to zoom in/out. Zoom Focus Adjust the Focus adjuster to get clear image. To prevent damaging the device, please adjust the adjuster gently. 2.1.2 I/O Control Instruction...
  • Page 16 1080p IR Bullet PoE IP Camera ICA-3460V Interface Description Connects the onboard LAN port to your local area network by Ethernet cable. For connection to 10BASE-T Ethernet or 100BASE-TX or Fast Ethernet cabling, this Ethernet port built auto-negotiation protocol can detect or negotiate the transmission speed of the network automatically.

  • Page 17: Hardware Installation

    1080p IR Bullet PoE IP Camera ICA-3460V 2.2 Hardware Installation 1. Place the Camera on the ceiling or fix it onto wall Use three screws to fix the camera onto the ceiling or wall. 2. Plug an Ethernet cable into the camera Connect the Ethernet cable (not included in the package) to the LAN socket.

  • Page 18: Initial Utility Installation

    1080p IR Bullet PoE IP Camera ICA-3460V 2.3 Initial Utility Installation This chapter shows how to quickly set up your IP camera. The camera is with the default settings. However to help you find the networked camera quickly, the windows utility PLANET IP Finder II can search the cameras in the network that can help you to configure some basic settings before you start advanced management and monitoring.
  • Page 19 1080p IR Bullet PoE IP Camera ICA-3460V 3. Please click “Next” to install with original settings, or you may click the “Browse…” button to modify the install folder and then press “Next” to continue. 4. Please click “Install” to start the installation.
  • Page 20 1080p IR Bullet PoE IP Camera ICA-3460V Please click “Finish” to complete the installation and launch program immediately. 6. The search tool will run as shown in the picture below. - 20 -...

  • Page 21: Search Function

    1080p IR Bullet PoE IP Camera ICA-3460V 2.3.2 Search Function IP Finder II will search all IP cameras connected to LAN. The user can click “Search” to search again. A quick way to access IP camera is to left-click the mouse twice on a selected IP camera listed on “Device list”...
  • Page 22 1080p IR Bullet PoE IP Camera ICA-3460V If user wants to set device as DHCP client, please refer to the following steps to set. Step 1. Select an IP cam from the device list. Step 2. Check the “Enable DHCP” box.

  • Page 23: Remote Update Function

    1080p IR Bullet PoE IP Camera ICA-3460V Please make sure the IP address of PC is in the same subnet as device’s IP address. 2.3.4 Remote Update Function  Device Update: User can update firmware with the function. Please select a device and click “Select File”...
  • Page 24 1080p IR Bullet PoE IP Camera ICA-3460V click “Synchro Time” to change time.  Reboot Device: Re-start the device. Please select a device and click “Reboot Device” to reboot device. - 24 -...

  • Page 25: Activex Setup To Use The Ip Camera

    1080p IR Bullet PoE IP Camera ICA-3460V 2.4 ActiveX Setup to Use the IP Camera The IP Camera web pages communicate with the IP camera using an ActiveX control. The ActiveX control must be downloaded from the IP camera and installed on your PC. Your Internet Explorer security settings must allow for the web page to work correctly.

  • Page 26: Internet Explorer 7 For Windows Xp

    1080p IR Bullet PoE IP Camera ICA-3460V By now, you have finished your entire PC configuration for the camera. 2.4.2 Internet Explorer 7 for Windows XP From your IE browser  ”Tools”  ”Internet Options…”  ”Security” ”Custom Level…”, please set up your “Settings” as follows: Set the first 3 items: •...

  • Page 27: Internet Explorer 11 For Windows 8/10

    1080p IR Bullet PoE IP Camera ICA-3460V • Enable “Automatic prompting for ActiveX controls” • Prompt “Initialize and script active controls not marked….” From your IE browser  ”Tools”  ”Internet Options…”  ”Security”  ”Trusted Sites”  ”Sites”, please add the camera’s IP address as follows: •Add the device’s IP, then click the Close button.
  • Page 28 1080p IR Bullet PoE IP Camera ICA-3460V Please add the camera’s IP address as follows: •Add the device’s IP, then click the Close button. - 28 -...
  • Page 29 1080p IR Bullet PoE IP Camera ICA-3460V From your IE browser  ”Tool”  ”Internet Options…”  ”Security”  ”Trusted Sites”  ”Custom Level…”, please set up your “Settings” as follows: - 29 -...
  • Page 30 1080p IR Bullet PoE IP Camera ICA-3460V • Disable “Allow ActiveX Filtering” •Prompt “Allow Scriptlets” • Enable “Automatic prompting for ActiveX controls” - 30 -...
  • Page 31 1080p IR Bullet PoE IP Camera ICA-3460V • Prompt “Download unsigned ActiveX controls” - 31 -...
  • Page 32 1080p IR Bullet PoE IP Camera ICA-3460V By now, you have finished your entire PC configuration for the camera. - 32 -...

  • Page 33: Chapter 3. Web-Based Management

    1080p IR Bullet PoE IP Camera ICA-3460V Chapter 3. Web-based Management This chapter provides setup details of the IP camera’s Web-based Interface. 3.1 Introduction The IP camera can be configured with your Web browser. Before configuring, please make sure your PC is under the same IP segment with Internet camera.
  • Page 34 1080p IR Bullet PoE IP Camera ICA-3460V Please install the player “ie.exe” If you can’t install the ActiveX, please refer the chapter 2.4 ActiveX Setup to Use the IP Camera to configure your IE browser setting. The login window of Internet camera will appear.

  • Page 35: Live View

    1080p IR Bullet PoE IP Camera ICA-3460V When you see this message, click Run to install the required ActiveX control After the ActiveX control has been installed and run, the first image will be displayed. You should be able to see the images captured from the Internet camera on the web page now.

  • Page 36: Media Management

    1080p IR Bullet PoE IP Camera ICA-3460V Streaming type Set up the real-time view stream type (Mainstream/Substream). Fluent or Real-time Select the video quality: fluent video or real time video. Turn ON or OFF audio out function. User has to connect an external active speaker.
  • Page 37 1080p IR Bullet PoE IP Camera ICA-3460V Video Format Video codec of the selected profile. Main stream 2592x1520, 2304x1296, 1920x1080, 1280x1024, 1280x960, 1280x720, 704x576, 640x480 Resolution Sub stream 704x576, 640x480, 352x288, 320x240, 176x144 Defines the targeted frame rate of this profile. For example, set...

  • Page 38: Audio Setting

    1080p IR Bullet PoE IP Camera ICA-3460V Frame Rate Interval The max. value is affected by the input resolution you choose. 3.4.2 Audio Setting Check the box to set audio function as enable; uncheck it to set Audio Enable audio function as disable.

  • Page 39: Camera Setting

    1080p IR Bullet PoE IP Camera ICA-3460V 3.4.3 Camera Setting Brightness Large value will brighten camera. Contrast Large value will contrast camera heavily. Large value will color camera heavily. Saturation There are three modes selectable-- Auto/Day/Night. In the Auto Day/Night Mode mode, the camera will change the image quality automatically, based on the light condition.

  • Page 40: Osd & Mask Settings

    1080p IR Bullet PoE IP Camera ICA-3460V 3.4.4 OSD & Mask Settings Display region of Device Title & Time can be settable. OSD Settings Click “Video Mask Settings” to enter the main interface shown below: Select one region on the image; click “Set” to save this setup.

  • Page 41: Tcp/Ip Setting

    1080p IR Bullet PoE IP Camera ICA-3460V 3.5.1 TCP/IP Setting This section provides the menu of connecting the device through Ethernet cable. Enable this checked box when a DHCP server is installed on the network to issue IP address assignment. With this setting, the IP address is assigned automatically.
  • Page 42 1080p IR Bullet PoE IP Camera ICA-3460V on the network's configuration. In IP networking, traffic takes the form of packets. IP subnets advance network security and performance to some level by organizing hosts into logical groups. Subnet masks contain four bytes and usually appear in the same "dotted decimal"...

  • Page 43: Port Management

    1080p IR Bullet PoE IP Camera ICA-3460V 3.5.2 Port Management User may need to assign a different port to avoid conflict when setting up IP assignment. Choose the TCP port. TCP Port HTTP Port Set up web page connecting port and video transmitting port (Default: 80).
  • Page 44 1080p IR Bullet PoE IP Camera ICA-3460V • Connect to a LAN by DHCP or fixed IP • Access the device by entering Setting  Network  PPPoE as shown below: PPPoE Dial-up To enable or disable the PPPoE service here.
  • Page 45 1080p IR Bullet PoE IP Camera ICA-3460V The Internet uses DNS servers to look up domain names and translates them into IP addresses. Domain names are just easy to remember aliases for IP addresses. A dynamic DNS service is unique because it provides a means of updating your IP address so that your listing will remain current when your IP address changes.

  • Page 46: Ftp Setting

    1080p IR Bullet PoE IP Camera ICA-3460V 3.5.4 FTP Setting You may set up FTP parameters for further operation of Event Schedule. If users want to send the alarm message to an FTP server, it will need to configure parameters here and also add at least one event schedule to enable event triggering as SMTP.

  • Page 47: Cloud Setting

    1080p IR Bullet PoE IP Camera ICA-3460V SMTP Port Set port number of SMTP service. Type the sender’s E-mail address. This address is used for E-mail From replying e-mails. Type the user name for the SMTP server if authentication is User Name enabled.

  • Page 48: Advanced Tool

    1080p IR Bullet PoE IP Camera ICA-3460V When the camera is connected to cloud server, the status will show “OnLine”. Status When the camera is disconnected from cloud server, the status will show “OffLine”. User can use mobile app to watch video only when the status is “OnLine”.

  • Page 49: Motion Detection

    1080p IR Bullet PoE IP Camera ICA-3460V Setting Click this option to enable time synchronization with PC time. Manual Setting: Click this option to set time and date manually. Manual Setting: Click this option to set time and date manually.
  • Page 50 1080p IR Bullet PoE IP Camera ICA-3460V Alarm Enable To enable or disable the Alarm service here. Define the sensitivity value of motion detection. The higher the Sensitivity value is, the more sensitivity it will be. For example, if you select "10 sec" here, once the motion is...

  • Page 51: User Management

    1080p IR Bullet PoE IP Camera ICA-3460V 3.7.3 User Management Refer to this menu to set the user names and password of the Administrator and access right of each user. Add User Manage the user’s account of viewer user. Modify Modify this password of user.

  • Page 52: Reboot System

    1080p IR Bullet PoE IP Camera ICA-3460V Make sure that the firmware only applies to this device; once updated, it will be burned into FLASH ROM of system. The firmware upgrade procedure cannot be interrupted. If the power and/or network connection are/is broken during the download procedure, it might possibly cause serious damage to the device.

  • Page 53: Version Info

    1080p IR Bullet PoE IP Camera ICA-3460V To have a backup of all of the parameters, click this button. If Backup necessary, it will then be possible to return to the previous settings if settings are changed and there is unexpected behavior.

  • Page 54: Alarm Events

    1080p IR Bullet PoE IP Camera ICA-3460V Click Browse to enable you to select the save path and file name prefix, and select OK to continue. Snapshot Path If you like to retrieve the saved image, select the file to display the saved image by using any one of the graph editing tools.

  • Page 55: Appendix A: Ping Ip Address

    1080p IR Bullet PoE IP Camera ICA-3460V Appendix A: Ping IP Address The ping (or Packet Internet Groper) command is used to detect whether a specific IP address is accessible by sending a packet to the specific address and waiting for a reply. It’s also a very useful tool to confirm whether Internet camera is installed or not, or if the IP address conflicts with any other device over the network.

  • Page 56: Appendix B: Bandwidth And Video Size Estimation

    1080p IR Bullet PoE IP Camera ICA-3460V Appendix B: Bandwidth and Video Size Estimation The frame rate of video transmitted from the device depends on connection bandwidth between client and server, video resolution, codec type, and quality setting of server. Here is a guideline to help you roughly estimate the bandwidth requirements from your device.

  • Page 57: Appendix C: Ddns Application

    1080p IR Bullet PoE IP Camera ICA-3460V Appendix C: DDNS Application Configuring PLANET DDNS steps: Step 1: Visit DDNS provider’s web site and register an account if you do not have one yet. For example, register an account at http://planetddns.com Step 2: Enable DDNS option through accessing web page of the camera.

  • Page 58: Appendix D: Configuring Port Forwarding Manually

    1080p IR Bullet PoE IP Camera ICA-3460V Appendix D: Configuring Port Forwarding Manually The device can be used with a router. If the device wants to be accessed from the WAN, its IP address needs to be set up as fixed IP address. Port forwarding or Virtual Server function of router also needs to be set up.
  • Page 59 1080p IR Bullet PoE IP Camera ICA-3460V Your WAN IP address will be listed here. 3. Open/set Virtual Server Ports to enable remote image viewing The firewall security features built into the router and most routers prevent users from accessing the video from the device over the Internet. The router connects to the Internet over a series of numbered ports.
  • Page 60 1080p IR Bullet PoE IP Camera ICA-3460V Enter valid ports in the Virtual Server section of your router. Please make sure to check the box on this line to enable settings. Then the device can be accessed from WAN by the router’s WAN IP address.

  • Page 61: Appendix E: Power Line Frequency

    1080p IR Bullet PoE IP Camera ICA-3460V Appendix E: Power Line Frequency COUNTRY VOLTAGE FREQUENCY COMMENTS *Neutral and line wires are reversed from that Argentina 220V 50 Hz used in Australia and elsewhere. *Outlets typically controlled by adjacent switch. Australia...
  • Page 62 1080p IR Bullet PoE IP Camera ICA-3460V COUNTRY VOLTAGE FREQUENCY COMMENTS Taiwan 110V 60 Hz Thailand 220V 50 Hz *Outlets typically controlled by adjacent switch. United Kingdom 230V* 50 Hz Though nominal voltage has been officially changed to 230V, 240V is within tolerances and commonly found.

  • Page 63: Appendix F: Troubleshooting & Frequently Asked Questions

    1080p IR Bullet PoE IP Camera ICA-3460V Appendix F: Troubleshooting & Frequently Asked Questions Features The video and audio codec is The device utilizes H.265/H.264 compression to provide high-quality adopted in the device. images. The device does not have a built-in audio.
  • Page 64 1080p IR Bullet PoE IP Camera ICA-3460V Check the box of this device. Press the “Restore Factory” button to restore all settings to factory default setting. Forgot the IP address of the Check IP address of device by using PLANET IP Finder II program device.
  • Page 65 1080p IR Bullet PoE IP Camera ICA-3460V Make sure to enter the IP address of Internet Explorer correctly. If the camera has a dynamic address, it may have changed since you last checked it.  Network congestion may prevent the web page from appearing quickly.
  • Page 66 1080p IR Bullet PoE IP Camera ICA-3460V  Network congestion may prevent the Image screen from appearing quickly. You may choose lower resolution to reduce the required bandwidth. Internet Explorer displays following message: “Your current Set up the IE security settings or configure the individual settings to...
  • Page 67 1080p IR Bullet PoE IP Camera ICA-3460V  Default Gateway and DNS server address should be set up correctly. Image Transfer on FTP does not work.  If FTP does not work properly, ask your ISP or network administrator about the transferring mode of FTP server.
