Notifier INA Manual page 25

2.7.2 T M P S (MPS-24B MPS-24BE)
HE AIN OWER UPPLY OR
Four-Wire Smoke Detector/Annunciator Power
Notification Appliance Power
Primary Power
Power Harness
Earth Ground
Secondary Power
+
-
Power Ribbon Connector
LED Indicators

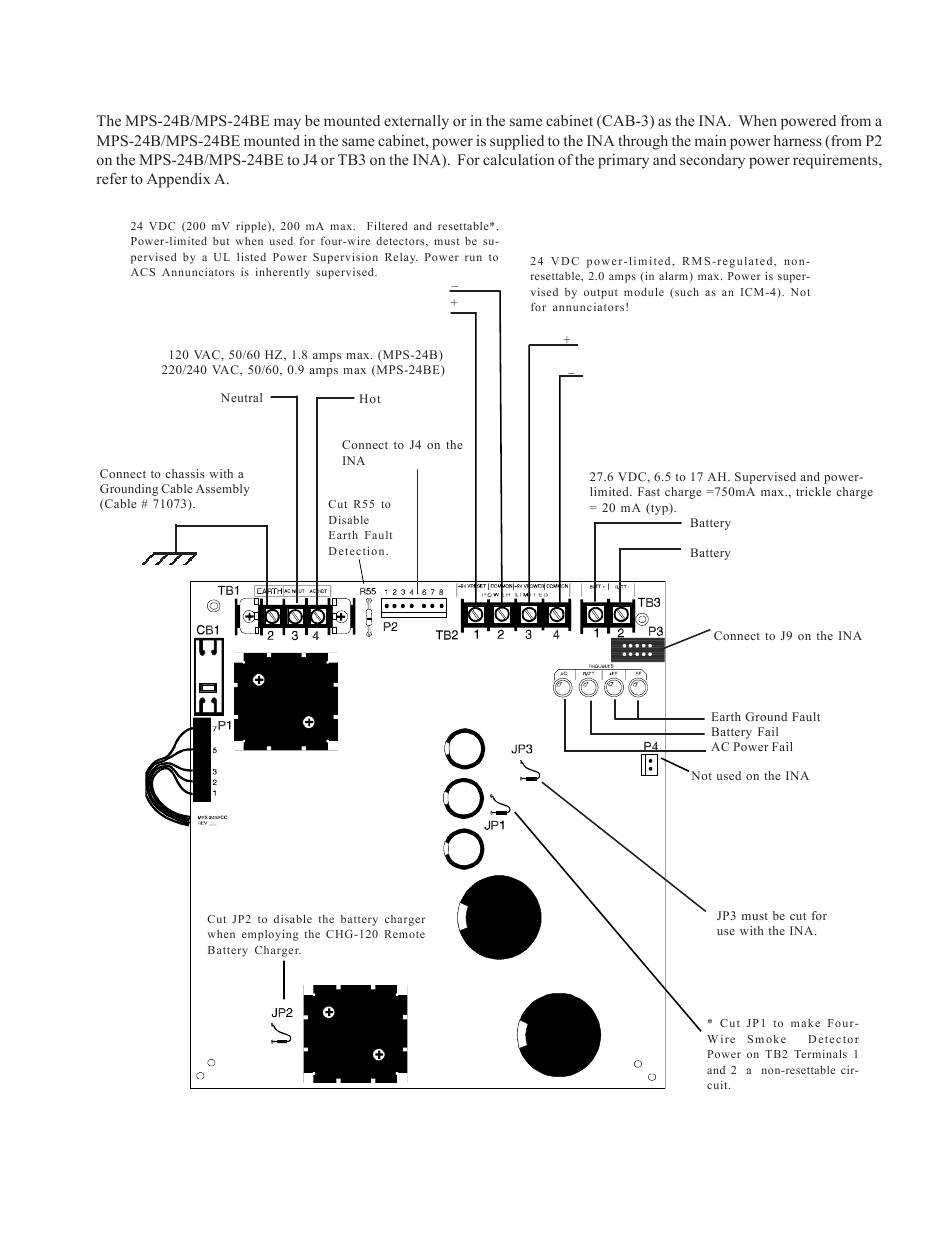

Figure 2.7.2-1 Field Wiring the MPS-24B/MPS-24BE
INA 15092:I 05/30/01 25
