TB3- 3
MPS-24A/
(+)
MPS-24AE
and
TB3-4 (-)

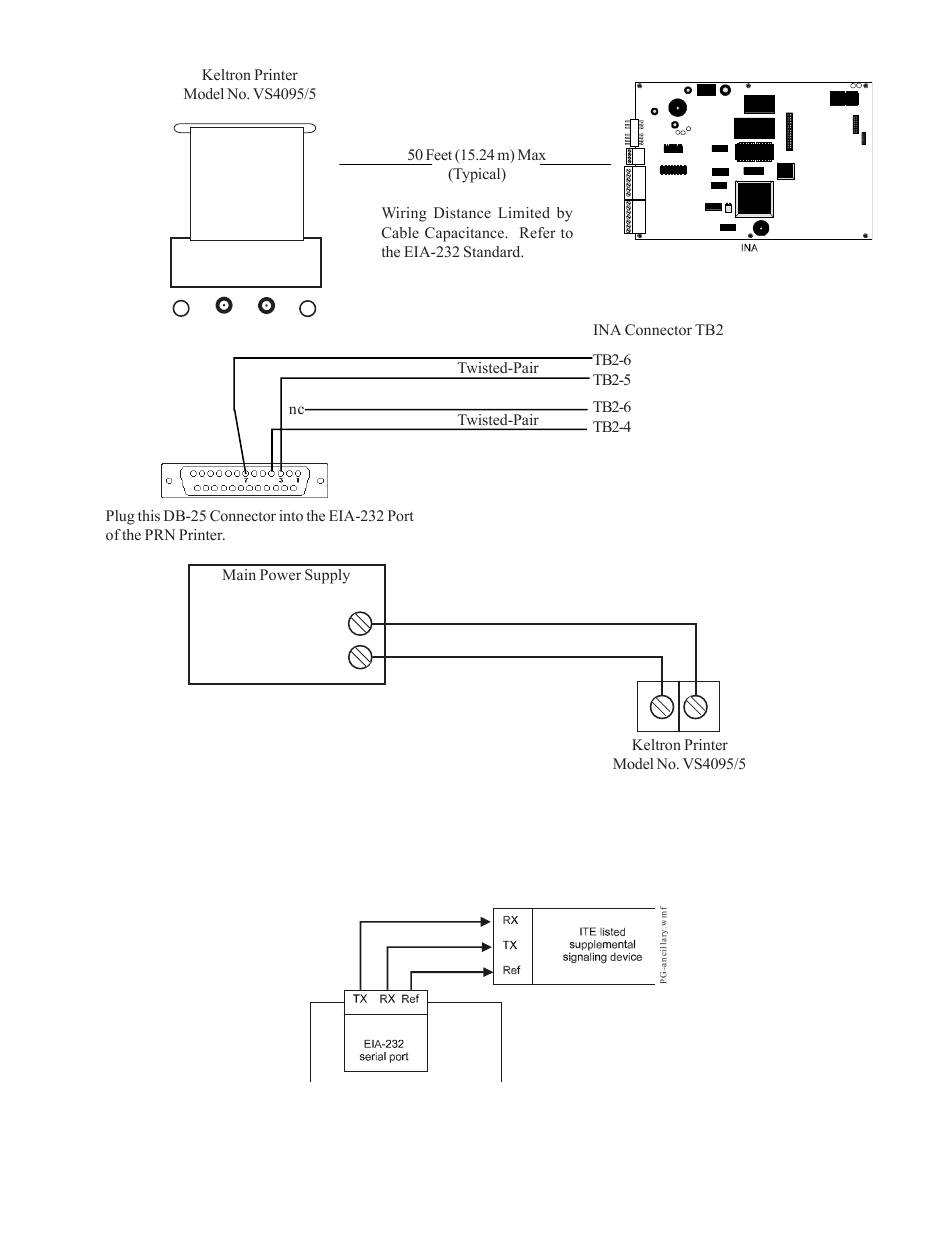

Figure 2.3-4 Keltron Printer Connections
Figure 2.3-5 Ancillary Connections
DC IN -
TB2 on
the INA
EIA-232 Reference
Transmit to Printer
EIA-232 Reference
Ready/Busy from Printer
+ DC IN
