2.7.1 The Main Power Supply (MPS-24A or MPS-24AE)
Secondary Power
Primary Power
Earth Ground
24
www.PDF-Zoo.com
-
+
Battery Fuse (10A, 3AG)

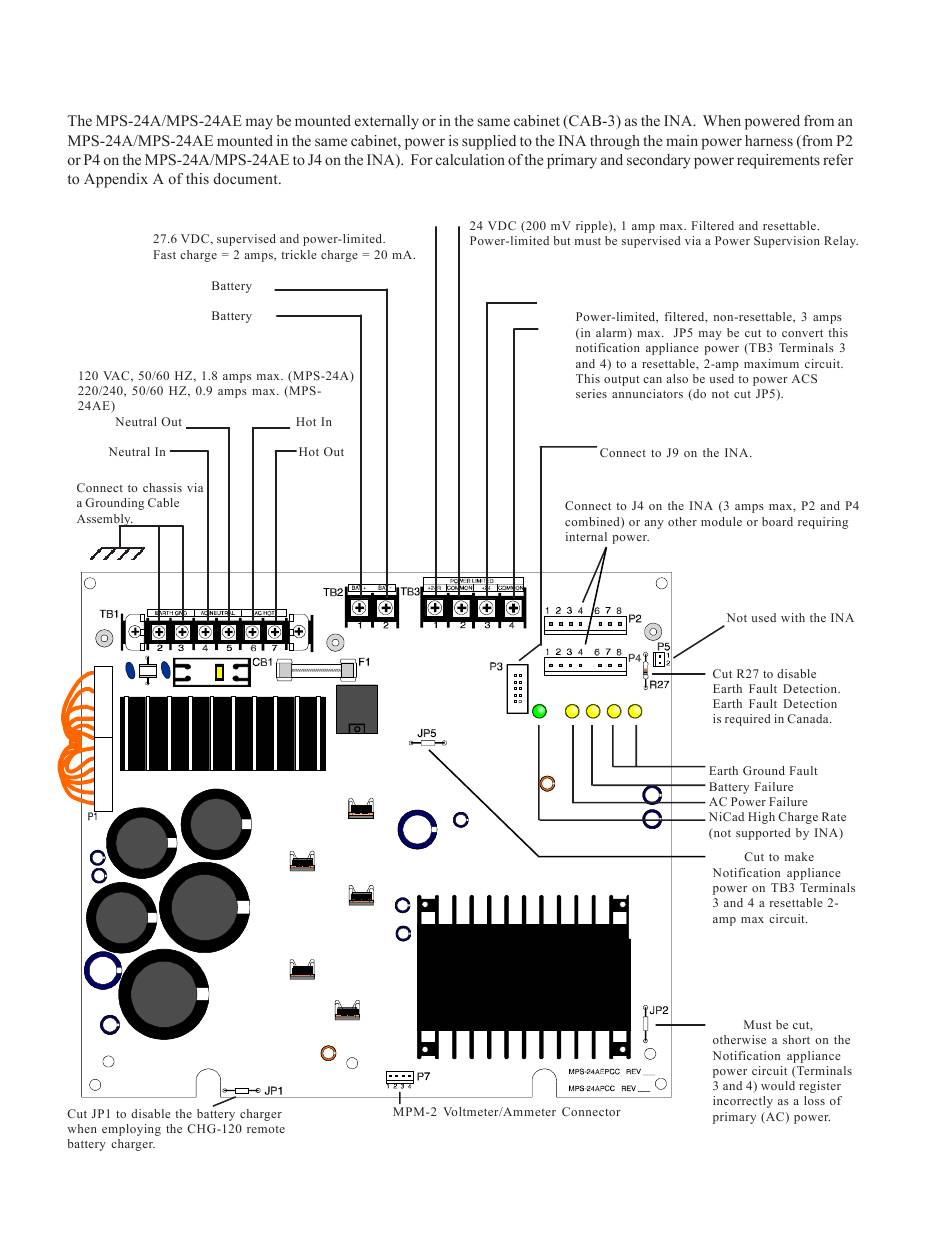

Figure 2.7.1-1 Field Wiring the MPS-24A/MPS-24AE
Four-Wire Smoke Detector Power
+ -
+
Notification Appliance/Annunciator Power
-
Power Supervision Ribbon Cable Connector
Power Harnesses (P2, P4)
LED Indicators
JP5:
JP2:
