EIA-485 circuit characteristic impedance of twisted pair wiring should be approximately 120 ohms.
AMG-1
ACM-32A
ACM-16AT

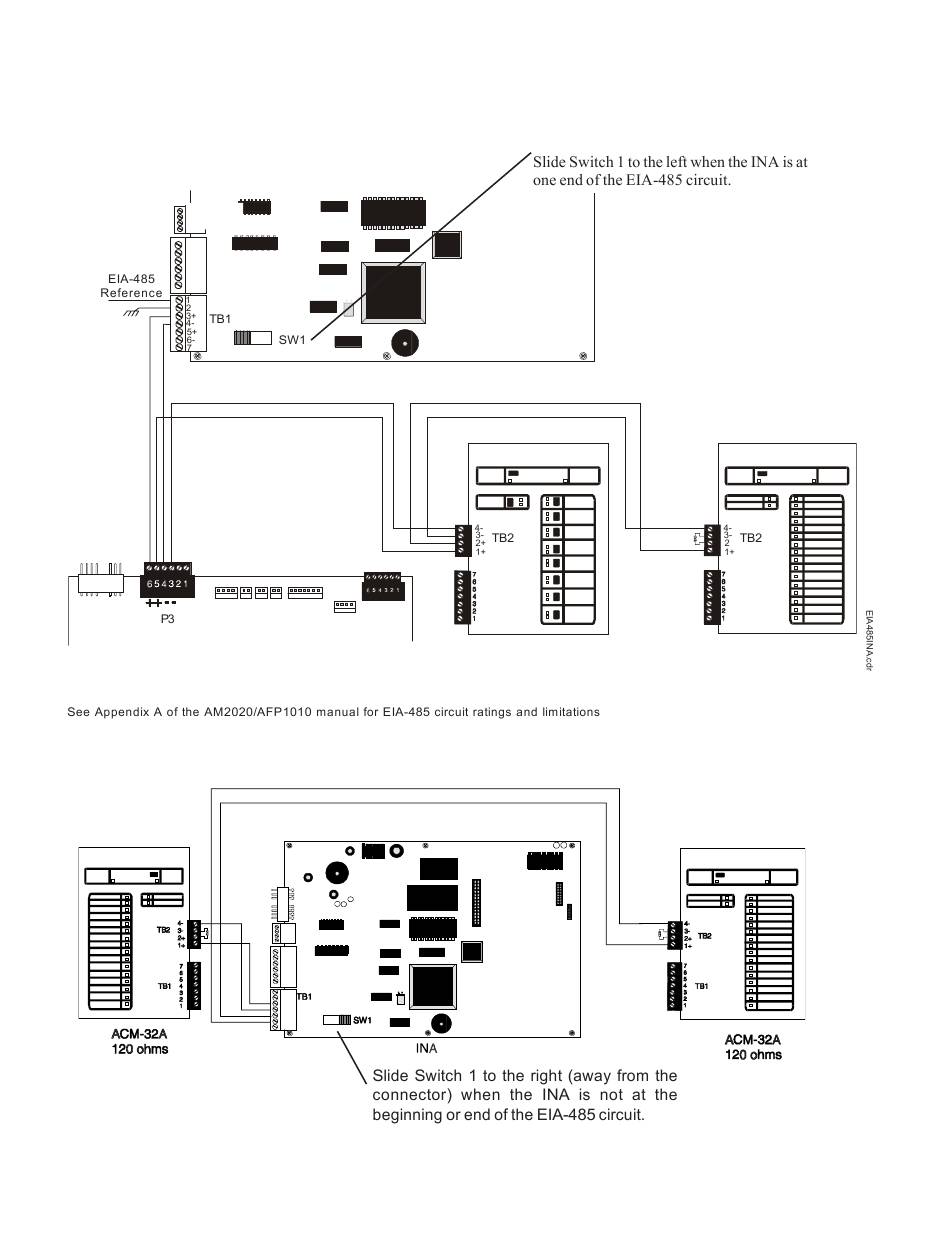

Figure 2.6-1 EIA-485 to INA Connections
Figure 2.6-2 INA/EIA-485 Circuit Terminating Diagram
