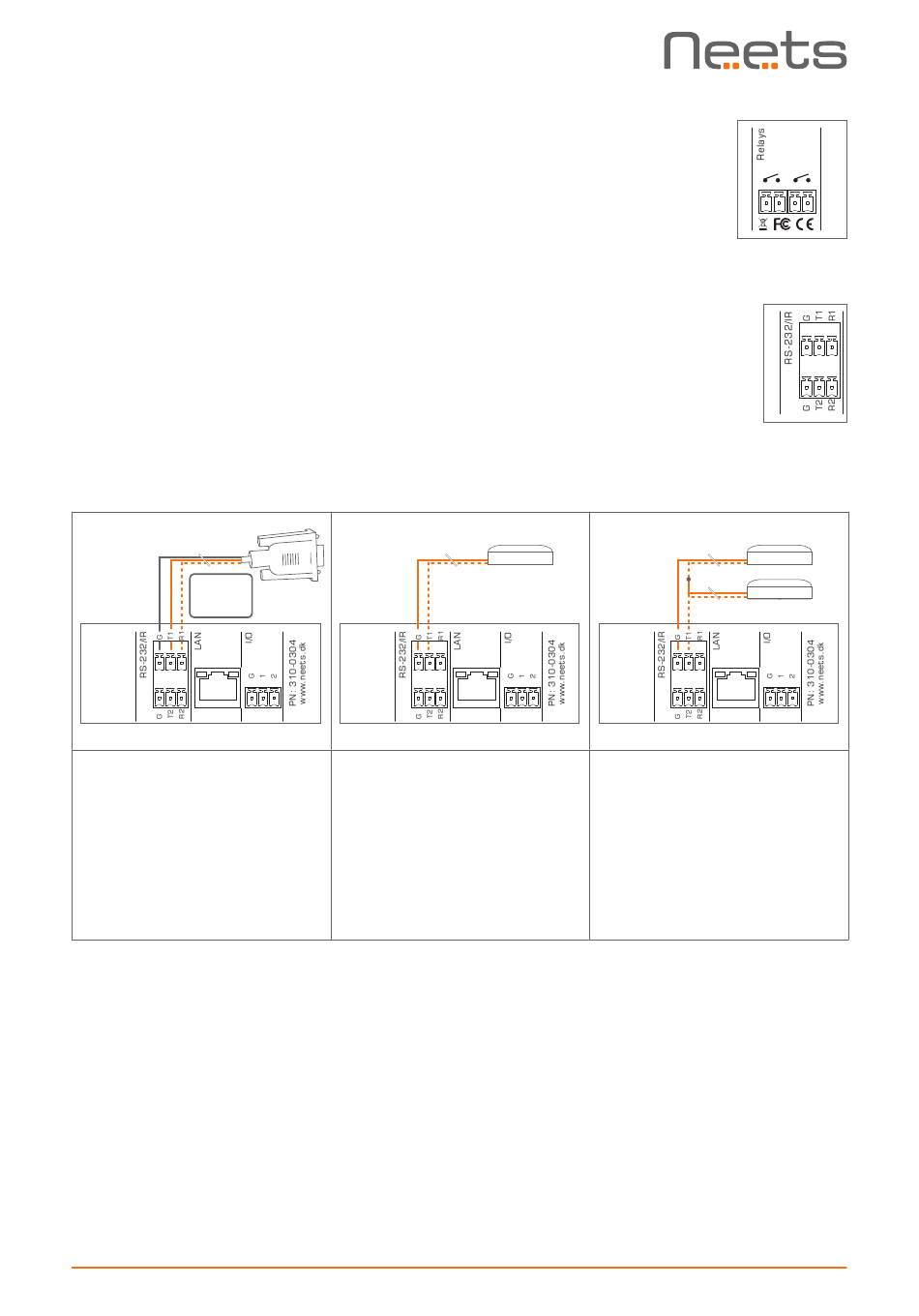

Neets Control LiMa Installation Manual page 9

Relays
Relays are used when a external control is needed where there must be
potential free connection between the control and the LiMa.
The relays are normally open types. This means that the terminals are not
connected when the relay is off.
RS-232 Connectors
The onboard RS-232 ports T1 + R1, T2 + R2 can be used for two-way
communication with external RS-232 compatible devices. Alternatively all
Tx ports can act as IR transmitter ports.
All of the RS-232/IR ports can be configured in the Neets Project Designer
software either as RS-232 or as IR emitter.
2
310-0304-002-003 (Artwork Bottom plate) REV1
When used as RS-232
transmit port: Connect the
device to T1, R1 and GND,
as shown here above.
1 2
PIN 2 to RX
PIN 3 to TX
PIN 5 to GND
PoE IN
1 2
310-0304-002-003 (Artwork Bottom plate) REV1
When used as single IR port:
Connect the IR emitter to
T1 (white striped wire) and
GND, as shown above.
TR-Emitter
PoE IN
310-0304-002-003 (Artwork Bottom plate) REV1
When used as dual IR port:
Connect the IR1 emitter to
T1 (white striped wire) and
black wire on IR1 emitter to
IR2 emitter (white striped
wire), and black wire from
IR2 emitter to GND, as
shown above.
1
310-0304-002-003 (Artwork Bottom plate) R
IR2-Emitter
IR1-Emitter
PoE IN
Page 9 of 12
