Troubleshooting

Error indication using LEDs

If there is a fault in either the configuration or the Neets Control - LiMa unit, this will be
indicated on the front LED indicators.
In all error modes the power LED will flash red alternating with the IO LEDs. The alternating IO
LEDs will indicate type of error. See list below.

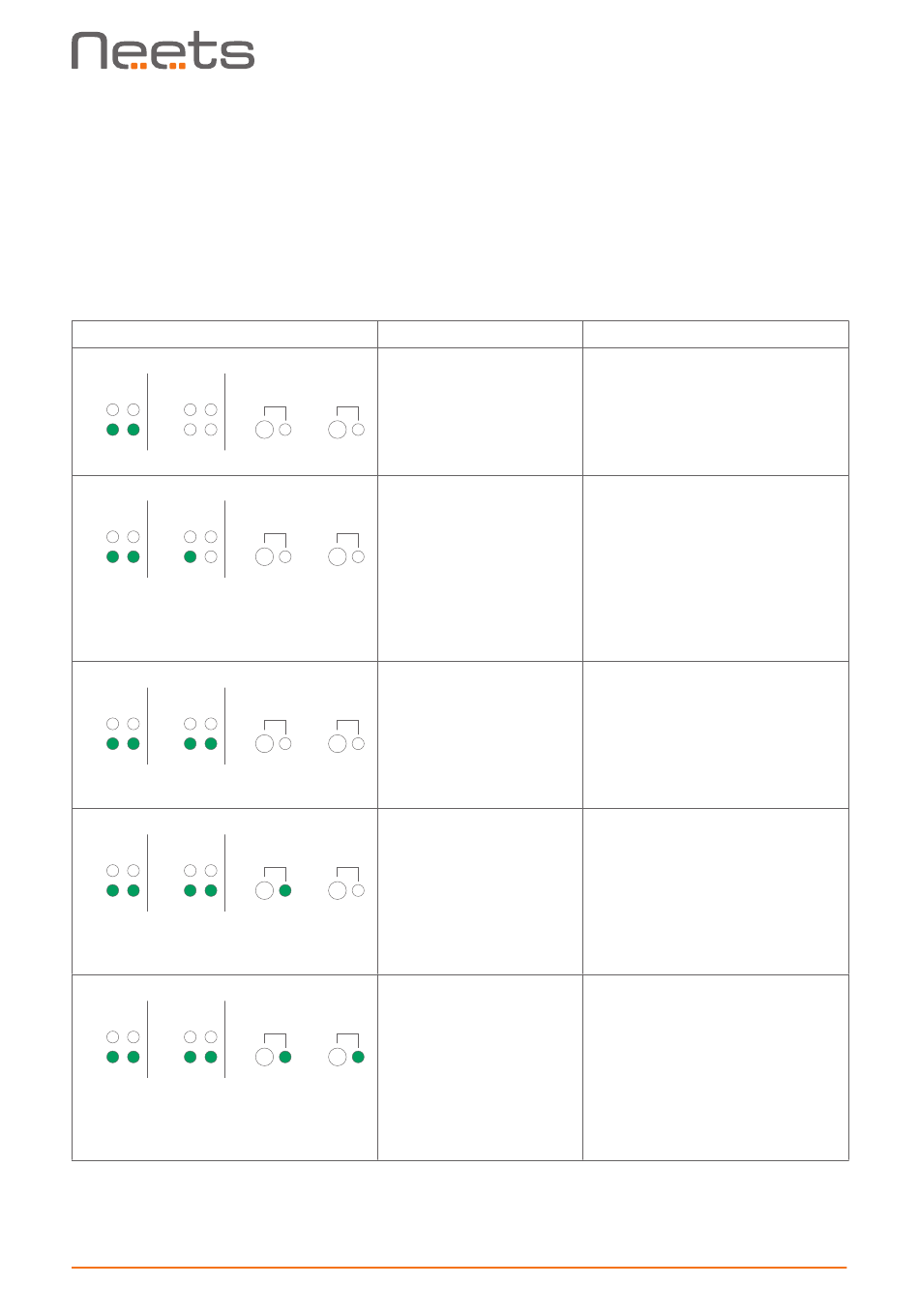

LED shows
control in/out
1 2 1 2
rx in
on
tx out
control in/out
1 2 1 2
rx in
on
tx out
control in/out
1 2 1 2
rx in
on
tx out
control in/out
1 2 1 2
rx in
on
tx out
control in/out
1 2 1 2
rx in
on
tx out
Page 12 of 12
Description
relay No project found on
the control system or
1 2
unable to start the
project.
on
relay
Missing SD card or
error on SD card.
1 2
on
relay Unexpected Error.
1 2
on
relay No contact to Neets
network unit.
1 2
on
relay Wrong firmware version
in Neets extension unit.
1 2
on
Solution
˚ Try to upload the project
again.
If the problem persists after
several successfully uploads,
contact Neets or your local
distributor.
˚ Make sure that there is a SD
card inserted in the Control
System. (Look at the rear
panel)
˚ After doing one of the above,
remove the power to the
Control System for 20
seconds before reconnecting
the power again.
˚ Turn off the power to the
Control System for 20
seconds before turning the
power on again.
˚ If the error is not resolved
contact Neets or your local
distributor.
˚ Check to confirm that the
serial number used in Project
Designer matches the Neets
extension unit.
˚ Check the network or RS-232
connection from the Control
System to the Neets
extension unit.
˚ The Neets extension unit has
a different firmware than the
one in the Control System.
˚ Please upgrade the firmware
by plugging in the USB cable
from the Neets extension unit
into a PC running Project
Designer and follow the
instructions.
