How to connect

PoE power supply to LiMa

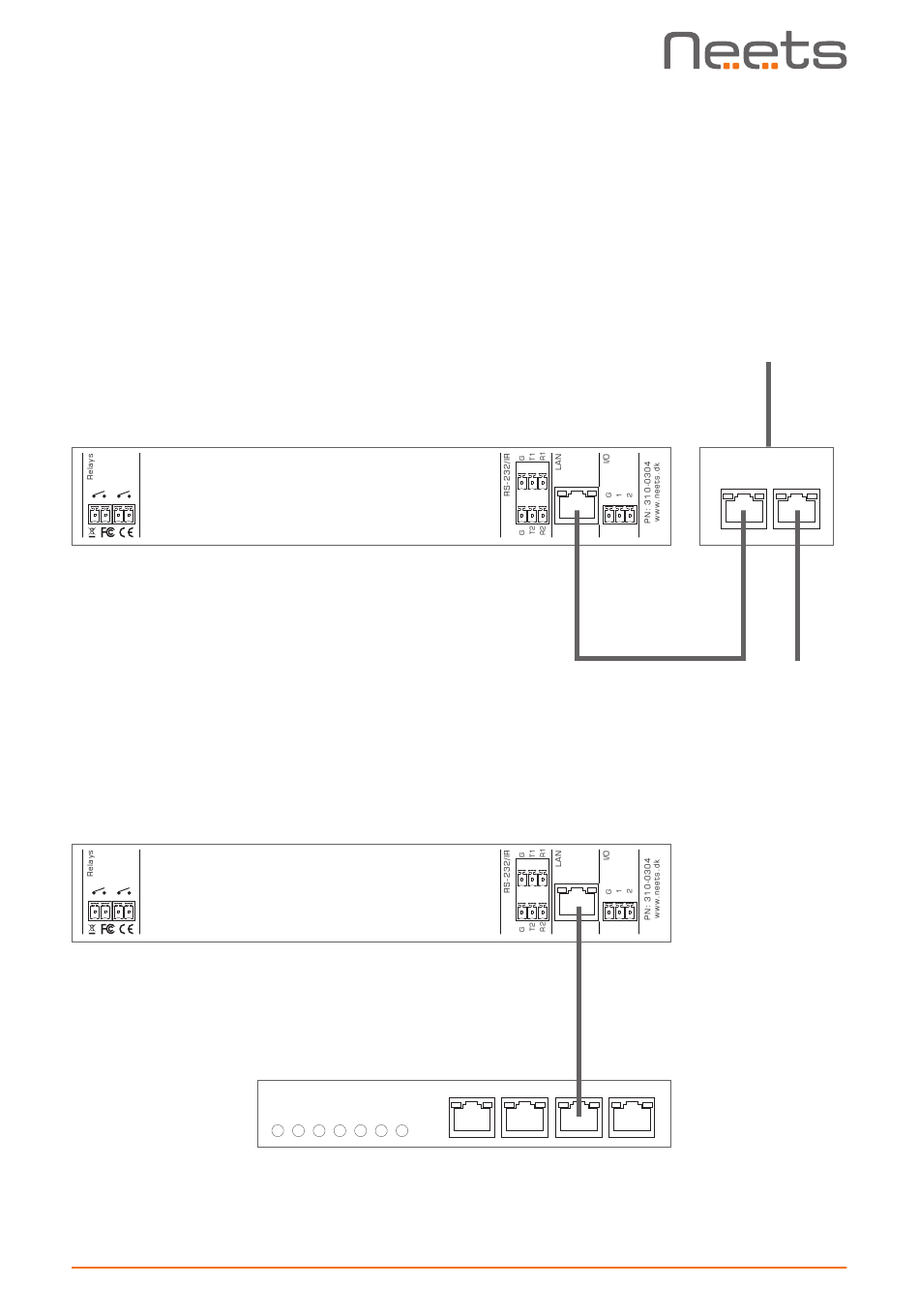

To power up the LiMa, the LAN connector marked with PoE IN should be
connected to a compliant PoE power supply. Or you can use the PoE
Injector (Part number 302-000508). Connect the PoE Injector LAN
connector marked "POE" to the LiMa LAN connector marked PoE IN with a
RJ45 terminated LAN cable. Connect the PoE Injector connector marked
"LAN" to the local network if networking features are required. Connect
the PoE Injector to main power supply using the supplied cable:
1 2
Alternatively the LiMa can be connected to a PoE enabled switch:
1 2
310-0305-002-003 REV2 (Silkscreen Bottom plate)
310-0304-002-003 (Artwork Bottom plate) REV1
310-0304-002-003 (Artwork Bottom plate) REV1
PoE IN PoE OUT
1 2 3 1 4 2 3 4
PoE IN PoE OUT
1 2 3 1 4 2 3 4
310-0305-002-003 REV2 (Silkscreen Bottom plate) 310-0305-002-003 REV2 (Silkscreen Bottom plate)
PoE IN
PoE IN
PoE IN PoE PoE OUT LAN PoE IN PoE PoE OUT
1 2 3 4
PoE IN PoE OUT PoE IN PoE OUT
1 2 3 4
230 V in
PoE LAN
LAN in
LAN
