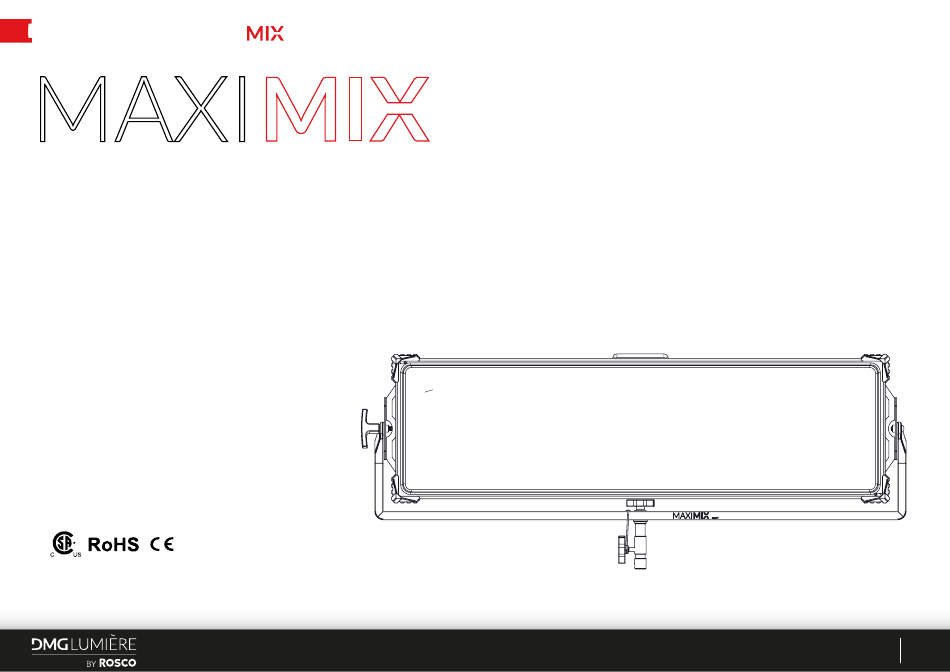

USER MANUAL - MAXI

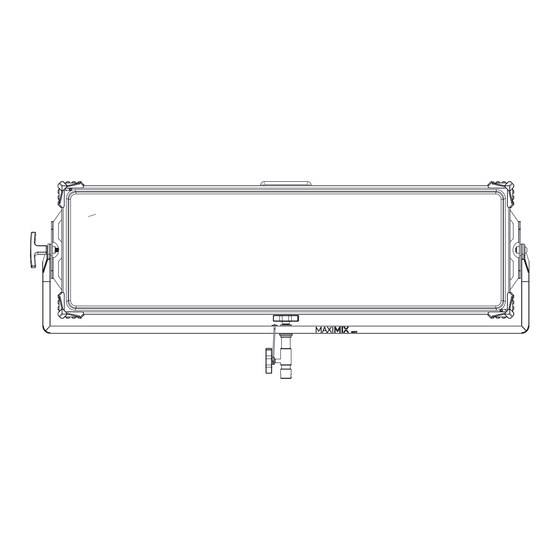

WHAT IS THE MAXI MIX?
120 X 36 X 8,5 cm - 47 X 14 X 3.3 "
•
380 W Max Consumption
•
8 kg - 17.6 lb
•
24 TO 35 VDC - minimum battery load 15 Amp
•
1700K TO 10000K
•
FULL COLOR (MIX TECHNOLOGY)
•
TRUE ROSCO COLOR
TM
•
FLICKER FREE
•
•
USER MANUAL - MAXI MIX
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DMG LUMIERE Maxi Mix and is the answer not in the manual?

Questions and answers

Related Manuals for Rosco DMG LUMIERE Maxi Mix

Summary of Contents for Rosco DMG LUMIERE Maxi Mix

  • Page 1 • 8 kg - 17.6 lb • 24 TO 35 VDC - minimum battery load 15 Amp • 1700K TO 10000K • FULL COLOR (MIX TECHNOLOGY) • TRUE ROSCO COLOR • FLICKER FREE • • USER MANUAL - MAXI MIX...

  • Page 2: Table Of Contents

    THE LIBRARY AND ITS FOLDERS ..................12-14 • SETTING UP ARTNET • EFFECTS FOLDER DMX PROFILES ..................................... 19-23 • SOURCE MATCHING FOLDER • ROSCO GELS FOLDER 13 - 14 THE MYMIX MOBILE APPLICATION ........................ 24-28 CONTROLLER SETTINGS ......................15-17 UPDATING THE MIX FIRMWARE ..........................

  • Page 3: Safety And Precautions

    USER MANUAL - MAXI Power Cut Safety SAFETY AND PRECAUTIONS • If power is cut inadvertently the controls will turn back on automatically when power is back. • The controls will always turn back on in the last state it was. •...

  • Page 4: Assembly And Mounting

    ASSEMBLY AND MOUNTING USER MANUAL - MAXI MAXI MIX POWER SUPPLY UNIT Attaching and securing the power supply: MAXI MIX PSU HOLDER INSTRUCTION 4x M3*8mm screw + spring washer + washer Power supply fixing plaque USER MANUAL - MAXI MIX...
  • Page 5 ASSEMBLY AND MOUNTING USER MANUAL - MAXI CORNERS DIFFUSION Remove the corners to access the diffuser. Push the spring-loaded pin to slide the diffuser out. Use the provided Allen key. USER MANUAL - MAXI MIX...
  • Page 6 ASSEMBLY AND MOUNTING USER MANUAL - MAXI The 1/4 turn locking system ensures speed with security. Using the Allen Key provided, WARNING - If you have not heard the fastener ‘CLICK’ , this means it has not been in a clockwise motion, you will hear a ‘CLICK’ sound, which verifies the fastener is locked locked safely.
  • Page 7 ASSEMBLY AND MOUNTING USER MANUAL - MAXI CORNER RIGGING IMPORTANT NOTICE : This is not to be used on a double MAXI MIX or any configuration where the LINK2 and LINK4 accessories must be used for hanging. Protection corners are designed to enable 4-point rope hanging for specific applications. IMPORTANT NOTICE 1: Protection corners are not to be used for safety slings.

  • Page 8: Mix Controller Usage Example

    MIX CONTROLLER USAGE EXAMPLE USER MANUAL - Our wireless DMX is compatible with any powered devices. LAN/DMX Light 1 Light 2 Light 3 Light console WDMX WDMX LAN/DMX Light 1 Light 2 DMG Lumière lights or any DMX enabled light WIFI Light 1 Light 2...

  • Page 9: Maxi Mix Controller

    MIX CONTROLLER USER MANUAL - MAXI The MAXI MIX controller has the following communication protocols inbuilt: Proprietary "MIX Communication Protocol" via Bluetooth with the myMIX app, up to 14 lights connected at the same time. DMX 512 (with RDM) via XLR-5 or wireless CRMX by LumenRadio (Timo FX transceiver).

  • Page 10: Maxi Mix Controller Local User Interface

    MIX CONTROLLER USER MANUAL - MAXI MAXI MIX CONTROLLER LOCAL USER INTERFACE 1. POWER 2. GEL 3. WHITE 4. DISPLAY SCREEN Turns the fixture ON or OFF. Sets the light in white mode. In white The display shows the current settings Sets the light in gel mode.

  • Page 11: The 3 Operating Modes: White / Gel / Color

    MIX CONTROLLER MIX CONTROLLER USER MANUAL - MAXI USER MANUAL - MAXI THE 3 OPERATING MODES: WHITE / GEL / COLOR • Use the navigation button to go around the screen functions in each corner of the screen. • Change values with the dimmer button. Press the dimmer to access presets.

  • Page 12: The Save Function

    "SAVING PRESET" option. Presets will be saved in the myMIX section. Effects selection mode, this is where all effects are stored. A maximum of 30 presets can be saved in myMIX. To START/STOP the effect, short press the ON/OFF button. DMX CALL ROSCO ROSCO TYPE NAME UP NUMBER...

  • Page 13: Rosco Gels Folder

    MIX CONTROLLER MIX CONTROLLER USER MANUAL - MAXI USER MANUAL - MAXI THE LIBRARY AND ITS FOLDERS (CONTINUED) • ROSCO GELS FOLDER DMX CALL ROSCO ROSCO DMX CALL ROSCO ROSCO DMX CALL ROSCO ROSCO TYPE NAME TYPE NAME TYPE NAME...
  • Page 14 MIX CONTROLLER MIX CONTROLLER USER MANUAL - MAXI USER MANUAL - MAXI THE LIBRARY AND ITS FOLDERS (CONTINUED) DMX CALL ROSCO ROSCO DMX CALL ROSCO ROSCO DMX CALL ROSCO ROSCO TYPE NAME TYPE NAME TYPE NAME UP NUMBER NUMBER SERIE...

  • Page 15: Controller Settings

    MIX CONTROLLER USER MANUAL - MAXI THE LIBRARY AND ITS FOLDERS (CONTINUED) CONTROLLER SETTINGS • MYMIX FOLDER • BLUETOOTH: BT/OFF This is your "personal" space, where you can store your favorite colors, whites, gels etc… BT: Bluetooth is ON, Remote Control is available via Bluetooth and the myMIX app.

  • Page 16: Gel Sorting

    USER MANUAL - MAXI CONTROLLER SETTINGS (CONTINUED) • GEL SORTING • INFORMATION Choose how to sort Rosco gels in the library, by name, color or number. Serial Number/Firmware Version/Hour Count/Operating Temperature. For light version : • RDM (REMOTE DEVICE MANAGEMENT) Digit 1: LED batch number.

  • Page 17: Zone Selection

    MIX CONTROLLER USER MANUAL - MAXI CONTROLLER SETTINGS (CONTINUED) • ZONE SELECTION The MAXI has 2 independent zones. To select the zone you want to control click on «select zone» and choose the zone you want to control. This can also be done via the myMIX APP by pressing the 3 dots next to the MAXI MIX name. USER MANUAL - MAXI MIX CONTROLLER...

  • Page 18: Communication Protocols: Artnet, Dmx512 And The Mymix App

    MIX CONTROLLER USER MANUAL - MAXI COMMUNICATION PROTOCOLS: ARTNET, DMX512 AND SETTING UP ARTNET, DMX AND BLUETOOTH BLUETOOTH WITH myMIX APP To use the MAXI MIX in ArtNet or DMX, go to SETTINGS\ The MIX Controller can be operated remotely via 3 communication protocols: DMX MODE.

  • Page 19: Setting Up Dmx And Bluetooth

    MIX CONTROLLER USER MANUAL - MAXI • SETTING UP BLUETOOTH WITH MYMIX APP SETTING UP DMX AND BLUETOOTH (CONTINUED) To use the MIX in Bluetooth make sure Bluetooth is set to BT in the settings menu: • SETTING UP DMX (WIRED AND WIRELESS) Input XLR or CRMX (wireless DMX by Lumen Radio).
  • Page 20 MIX CONTROLLER USER MANUAL - MAXI DMX PROFILES (CONTINUED) Three basic DMX Profiles replicating the local modes: White/Color/Gel PROFILE NAME PROFILE DESCRIPTION CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4 CHANNEL 5 CHANNEL 6 CHANNEL 7 White mode (same White 8 bits Dimming Green/Magenta as local)
  • Page 21 MIX CONTROLLER USER MANUAL - MAXI DMX PROFILES FOR TWO SEPARATE ZONES Four Pro DMX Profiles for ultimate control with two separate zones PROFILE PROFILE NAME CHANNEL 1 CHANNEL 2 CHANNEL 3 CHANNEL 4 CHANNEL 5 CHANNEL 6 CHANNEL 7 CHANNEL 8 CHANNEL 9 CHANNEL 10...
  • Page 22 MIX CONTROLLER USER MANUAL - MAXI DMX PROFILES FOR TWO SEPARATE ZONES (CONTINUED) Four Pro DMX Profiles for ultimate control with two separate zones (continued) PROFILE PROFILE NAME CHANNEL 24 CHANNEL 25 CHANNEL 26 CHANNEL 27 CHANNEL 28 CHANNEL 29 CHANNEL 30 DESCRIPTION Maxi All modes in...
  • Page 23 MIX CONTROLLER USER MANUAL - MAXI DMX PROFILES (CONTINUED) *The control channel: FONCTION DESCRIPTION No fonction Nothing 11-20 Dim curve linear Dimmer linear 21-30 Dim curve square Dimmer square law 31-40 Dim curve s curve Dimmer in scurve mode 41-50 DIm curve Tungsten Dimmer in Tungsten emulated 51-60...

  • Page 24: The Mymix Mobile Application

    USER MANUAL - MAXI THE myMIX MOBILE APPLICATION The myMIX app is available on Google store & App Store Connect your light: 1. Press SCAN to discover MIX 2. Click on a MIX to connect to it. 3. Click again on your light to Your light is connected.
  • Page 25 USER MANUAL - MAXI THE MYMIX MOBILE APPLICATION (CONTINUED) Select the mode: WHITE / GEL / COLOR / EFFECTS / SOURCE MATCH Sensitive touchpad to change Dial in a value with the keyboard. In color mode, use the touchpad Scroll through presets. values.
  • Page 26 Touch here to acces a wide Find your gel, sort the list by organise your colors. favorite for a quick access. library of true Rosco color. name, color or number. The "Apply Gel" button will remove/ add the gel. USER MANUAL - MAXI MIX...
  • Page 27 USER MANUAL - MAXI THE MYMIX MOBILE APPLICATION (CONTINUED) In the color mode, touch the Chose a picture from your gallery Source Match Mode: select the Effect Mode: press the PLAY camera to access the CAPTURE or take one, you can then pick the source you want to match and button, select the effect, change function.
  • Page 28 USER MANUAL - MAXI THE MYMIX MOBILE APPLICATION (CONTINUED) To control several lights together you must create a group: NEW : the Color xy mode Select Zone Create a group of lights. Click the "+" sign to add a light Check if every light of the group You can select 3 colors spaces on Control...

  • Page 29: Updating The Mix Firmware

    USER MANUAL - MAXI UPDATING THE MIX FIRMWARE • UPDATE YOUR MIX(S) VIA MYMIX • UPDATE YOUR MIX(S) VIA WINDOWS 10 If your MIX controller is not up to date with the latest firmware version, myMIX will prompt you to update. Before updating, please make sure your phone is connected to a This software is for Windows 10 only.
