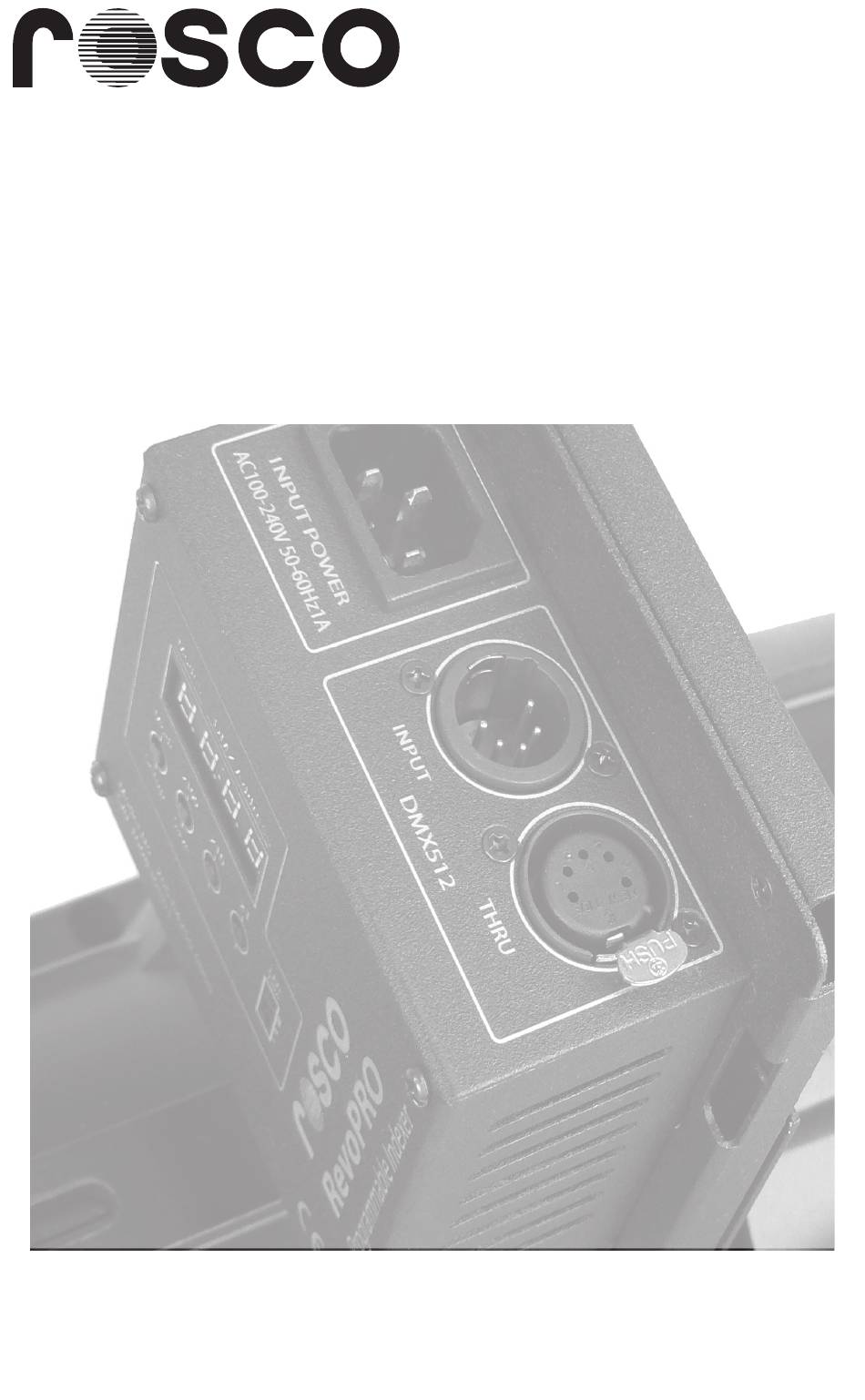

- Page 1 RevoPro ™ Programmable Gobo Rotator Operations Manual ver 1.1 Copyright 2011...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Quick Set Up Guide Getting to Know your RevoPRO What’s in the box Requirements Installing Gobos Installation and Power Supply Choosing the Mode of Operation Setting DMX Address and Operation Mode Precautions Troubleshooting Technical Specifications Accessories and replacement parts... -
Page 3: Quick Set Up Guide
Use LCD Display and buttons B1 – B4 to configure RevoPRO. Press B1 to enter Setup mode. When display begins blinking, press B1 again to select desired Mode (1-7). Note: RevoPRO™ uses 2, 4, or 6 chan- nels of DMX depending on the Operation Mode selected. -
Page 4: Getting To Know Your Revopro
DMX like museums, retail, and commercial buildings. With its internal power supply, RevoPRO is perfectly suited in lighting rigs where an external PSU is not desir- able, like theme parks and cruise ships. RevoPRO™ is a powerful and versatile... - Page 5 RevoPRO Operations Manual p. 5...
-
Page 6: What's In The Box
64.5mm (2.54in). Many modern luminaires have optical systems capable or projecting a larger image area. The RevoPRO™ has an open aperture of 75mm (2.95in) giving you the flexibility to maximize your projection size by using gobos with a larger image area. - Page 7 RevoPRO Operations Manual To load a gobo into the gobo wheels Place the rotator on a stable flat surface. Unscrew the Threaded Collar from each gobo wheel (counter-clockwise to unscrew, clockwise to tighten). There are two flat sections on the collar to give your fingers a place to grip.
- Page 8 5. INSTALLATION, POWER AND DATA CONNECTIONS The RevoPRO™ has been engineered to fit into the bodies of most modern el- lipsoidal luminaires including ETC Source Four, ETC S4 Zoom, Selecon Pacific, Selecon Pacific Zoom, Altman Shakespeare and Strand SL among others.
- Page 9 Note: To install the RevoPRO™ into your luminaire it is necessary that the Friction Lock Slider be in the UP position, with the lock disengaged. Attach a safety cable to the RevoPRO™ and then to the yoke of your luminaire or other secure point.
- Page 10 15 second BOOT process first. Use the LCD display and buttons B1 – B4 to set Mode and DMX Address. Modes DMX Address 1. 0 0 1 Modes x100 Setup Save Test Note: Press = Quick Press ~ 0.25 seconds, Press and Hold = 1 second To Set Operation Mode •...
- Page 11 RevoPRO Operations Manual 7. OPERATION MODES The RevoPRO™ has seven modes of operation to offer the programmer and lighting designer maximum flexibility. • MODE ONE – 2 Channel - Std Forward Control • MODE TWO – 2 CH - ML Center Inverse Control •...
- Page 12 MODE TWO: 2 CH - ML Center Inverse Control Similar to Mode one, Mode Two provides simple two channel control of the RevoPRO™. For programmers who prefer it, the speed and direction control is more similar to that used by automated lighting programmers. Speed control configuration is “center inverse.
- Page 13 RevoPRO Operations Manual Mode 2 Channel assignments Level Function / Result Gobo A - Stop Gobo B - Stop 1-49 1-127 Gobo A - CW (fast to slow) Gobo A - Stop 51-99 129-254 Gobo A - CCW (slow to fast)
- Page 14 Level Function / Result Gobo A - Continuous rotation 1-100 1-255 Gobo A - Index position 0-370° 1.45° per DMX value 1-49 1-127 Gobo B - CW (slow to fast) Gobo B - Stop 51-99 129-254 Gobo B - CCW (slow to fast) Gobo B - Stop Gobo B - Continuous rotation 1-100...
- Page 15 RevoPRO Operations Manual MODE FIVE: 6 CH Indexing – 16 bit resolution - Forward Control 16-Bit or high resolution indexing provides very fine position control over the orientation of the gobo but requires 1 extra control channel per gobo to accomplish this. In 8-bit resolution, each point of DMX value changes the position of the gobo by 1.45-degrees.
- Page 16 Level Function / Result 5 + 6 Gobo B - Continuous rotation 1-100 1-255 Gobo B - Coarse Index 0-370° 1.45° per DMX value 1-100 1-255 Gobo B - Fine Index .005° per DMX value MODE SIX: 6 CH Indexing – 16 bit resolution - ML Center Inverse Mode Six is similar to Mode 5 except Speed and Direction controls are config- ured to Center Inverse like in Modes Two and Four.
- Page 17 Gobo B - Index 0-370° (1.45°/DMX) EFFECTS LIBRARY – NO DMX The RevoPRO can be configured to operate with no DMX signal present by using the LED Display Panel to recall and apply one of 10 pre programmed effects sequences to either Gobo A or Gobo B. By combining any of these 10 sequences, a total of 100 variations can be achieved.
- Page 18 To adjust the speed and direction of this program, repeat steps 1-12 without changing the Effects numbers in steps 1-4. RevoPRO will recall and restore the last programmed effects sequence in the event of a power loss or Operation Mode change.
- Page 19 RevoPRO Operations Manual STAND ALONE MODE - USER DEFINED ROTATION To set and store your own rotation effect, use Effect 0 Continuous Rotation ap- plied to both gobos. This allows you to define the exact speed and direction of each gobo and recall this customized specification without using a DMX console.
-
Page 20: Precautions
Use only properly rated IEC power cord (18AWG 3C SJT) and connect only to compatible voltage supplies (100-240v 50-60hz) • Always use a safety cable to insure the RevoPRO™ cannot fall out of the fixture. • Do not allow power cord to come in contact with the hot body of the luminaire or the rear lamp cap. - Page 21 Confirm DMX addressing for all units. Remember that in some modes, RevoPRO™ will use 2, 4, or 6 channels of DMX. Make sure no two device share DMX address assignments. Check cable connections for faults.
-
Page 22: Technical Specifications
Check DMX Mode and programming. Channel assignments and motor control operation vary by mode. Confirm correct pro- gramming parameters for selected MODE. Gobo rotation appears normal but stops when channel is brought to FULL or 100%. Check MODE selection. In Mode 2, 4, or 6 this is NORMAL opera- tion. -
Page 23: Accessories And Replacement Parts
Part No. 205 65002 0001 Silicon Belts – Set of 2 – Simple Spin Part No. 205 65310 0000 Silicon Belts – Set of 2 – Revo & RevoPRO Part No. 205 65420 0000 Safety Cable Part No. 205 65008 0001 Power Cord 16/3 IEC - 6ft (1.8m) -
Page 24: Compliance And Certifications
52 Harbor View Ave Stamford, CT 06902 United States Hereby declares that the product(s): Rosco DMX Iris, Rosco Simple Spin, Rosco REVO, Rosco RevoPRO Model Number(s) 74500, 63100, 64200, 64250 Conform(s) to the following Product Specifications: European Council Directive 2004 / 108 / EC... -
Page 25: Warranty
This warranty is not transferable and does not extend beyond the first retail purchase of the Product. This warranty does not cover damage to the Rosco product caused by parts not manufactured, distributed or certified by Rosco. Rosco is not obligated to... - Page 26 Internal auto-sensing power supply makes for easy installation anywhere in the world. REVO™ Dual Indexing Rotator Many of the same features as the RevoPro but pow- ered by an external 24v power supply for conve- nient installation with common theatrical accesso- ries like color scrollers and I-Cue mirror.
- Page 27 RevoPRO Operations Manual iPro Image Projector This innovative accessory holds and cools a plastic gobo printed from an ordinary ink jet printer. Project any full color or black and white image you imagine from your Source Four or similar leko within minutes.
- Page 28 Corporate Office 52 Harbor View Ave Stamford CT 06902 M +1 203 708-8900 F +1 203 708-8919 Toll Free (800) ROSCO NY info@rosco.com www.rosco.com Western US Sales Office Rosco Iberica SA - Spain 1265 Los Angeles Street C/Oro, 76 Poligono Industrial Sur...
