USER MANUAL -
myMIX
myMIX
®
DESIGNED BY THE BLACK TANK
WHAT IS myMIX CONNECT?

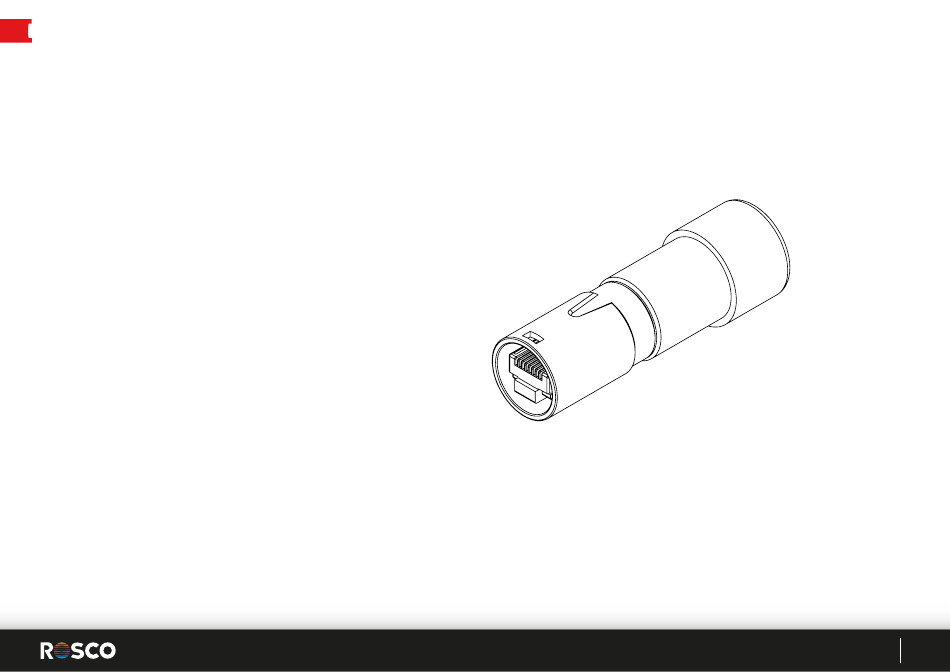

The Rosco myMIX Connect dongle works in conjunction with the
myMIX app, providing the opportunity to preview, save, recall, and
send specified colors and white presets via RDM. Choose from a
database of True Rosco Color
gel matches or build your own color
™
through the myMIX App Color and White Modes.
• RJ45 Connector
• Self-Powered via Miro Cube
2
®
• Secure access via unique pairing code
• 68mm (2.69") long x 21mm (.81")
• 3-year limited warranty
Compatible Rosco Products:
Miro Cube
2 WNC
®
Miro Cube
2 4C
®
Miro Cube
2 4CA
®
Miro Cube
2 UV365
®
CONNECT
®
Connect
USER MANUAL - myMIX
CONNECT
®
1
Advertisement
Related Manuals for Rosco myMIX CONNECT
Summary of Contents for Rosco myMIX CONNECT
- Page 1 DESIGNED BY THE BLACK TANK WHAT IS myMIX CONNECT? The Rosco myMIX Connect dongle works in conjunction with the myMIX app, providing the opportunity to preview, save, recall, and send specified colors and white presets via RDM. Choose from a...
- Page 2 Enter pairing code (found on a label in packaging material). Note: for security purposes, each myMIX Connect comes with a unique pairing code. The label containing the pairing code can be affixed to the dongle. Anyone with this pairing code can control the dongle via the myMIX App.
- Page 3 • White Mode allows you to fine-tune the color temperature with Green and Magenta adjustment. (See Data Sheet for specific ranges by fixture.) • Gel Mode gives you access to up to 54 True Rosco Color gel matches. ™ •...
-
Page 4: Saving Colors
USER MANUAL - myMIX CONNECT ® SAVING COLORS To save a color, press the "save" Name your color, and select or Every saved color is accessible in the Library section. button located on the top right create the folder you want to on the control window. - Page 5 USER MANUAL - myMIX CONNECT ® SHARING COLORS SAVING COLORS You can share a color or a folder via email, text message, or Clicking on the 3 dots next to the color will open its color card. WhatsApp. Please note, "Share this file" will be displayed on an Android device.
- Page 6 RDM VIA myMIX CONNECT Your myMIX Connect can access and modify the controller settings and features via RDM. On Rosco myMIX compatible products this will enable you to assign a DMX address, adjust dimming curves and PWM frequency, and toggle between fixture personalities.
- Page 7 MULTIPLE FIXTURES With the myMIX Connect, it is possible to uniformly control up to 32 myMIX Compatible DMX lights via in/out data looping and proper DMX termination*. Simply link your myMIX app to one of the fixtures and all lights connected will follow these same commands.
- Page 8 • Rosco products are not for household use. • Not for household use. • Rosco myMIX Connect is designed for operation within the range of -4° to 113°F (-20° to +40°C). • Ensure Rosco myMIX Connect Dongle is stored within the range of -4° to 140°F Certifications (-20°...
-
Page 9: Year Limited Warranty
® 3-YEAR LIMITED WARRANTY Rosco Laboratories warrants to the first retail purchaser that this Product will be free from defects in workmanship and material for a period of 36 months from the date of original purchase. For warranty service you must be able to provide proof of purchase. Should this Product prove defective during the warranty period, please contact your local Rosco office for Return Authorization.
