- Page 1 Quick Start Guide Dynamic NFC tag expansion board based on M24LR04E for STM32 Nucleo (X-NUCLEO-NFC02A1) Version 1.1.0 (May 30 , 2016)
- Page 2 Quick Start Guide Contents X-NUCLEO-NFC02A1: Dynamic NFC tag expansion board Hardware and Software overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
-
Page 3: Hardware Overview

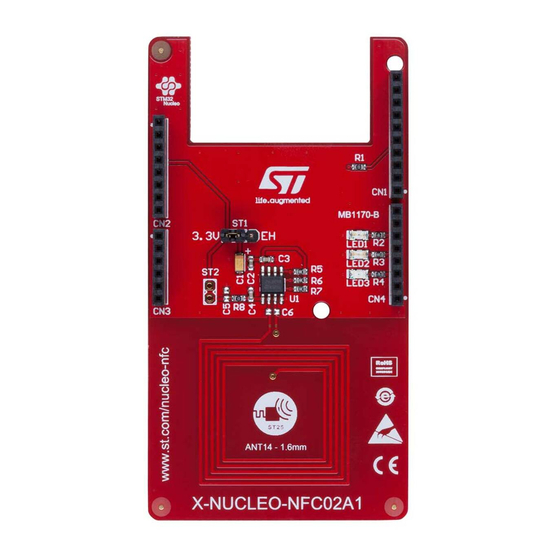

X-NUCLEO-NFC02A1 Hardware description Arduino UNO R3 connector • The X-NUCLEO-NFC02A1 is a dynamic NFC tag – Type V expansion board based on M24LR04E-R for STM32 Nucleo. The expansion board is equipped with a dynamic NFC Type V/RFID tag contactless EEPROM featuring an C interface. -
Page 4: Software Overview
• Development Board Cube driver to operate M24LR04E-R • Complete middleware to build applications using NDEF message for type V tags. Latest info available at www.st.com • Easy portability across different MCU families X-CUBE-NFC2 thanks to the STM32Cube • Sample applications that the developer can use to start experimenting with the code •... - Page 5 Quick Start Guide Contents X-NUCLEO-NFC02A1: Dynamic NFC tag expansion board Hardware and Software overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
- Page 6 Setup & Demo Examples HW prerequisites • 1x Dynamic NFC tag IC expansion board (X-NUCLEO-NFC02A1) • 1x STM32 Nucleo development board (NUCLEO-F401RE or NUCLEO-L053R8) • 1x Laptop/PC with Microsoft Windows 7 or 8 installed NUCLEO-F401RE NUCLEO-L053R8 • 1x USB type A to Mini-B USB cable...
- Page 7 Setup & Demo Examples SW prerequisites • STSW-LINK008: ST-LINK/V2-1 USB driver • STSW-LINK007: ST-LINK/V2-1 firmware upgrade • X-CUBE-NFC2 • copy the .zip file content into: “c:\Program Files (x86)\STMicroelectronics\” folder on your Laptop/PC. The package will contain source code example (Keil, IAR, True...
- Page 8 Start coding in just a few minutes with X-CUBE-NFC2 www.st.com/x-nucleo Go to X-CUBE-NFC2 package Select Generic Nucleo docs & Driver porting X-NUCLEO-NFC02A1 Drivers Serial Utility Application examples Download & unpack X-CUBE-NFC2 Download & install STM32 Nucleo ST-LINK/V2-1 USB driver Modify, build application Open project example WriteUri Application...
- Page 9 X-CUBE-NFC2 Evaluate using X-CUBE-NFC2 From X-CUBE-NFC2 SW resource package Drag and drop STM32L053R8-Nucleo.bin on STM32 Nucleo drive Connect power supply (USB cable)
- Page 10 X-CUBE-NFC2 Evaluate using X-CUBE-NFC2 Enable NFC on your phone and make sure it is also connected to the internet. Bring the phone close to the X-NUCLEO-NFC02A1 Antenna. You are directly redirected to st.com/st25 webpage.
- Page 11 Gerber files, BOM, Schematic • DB2383: Dynamic NFC tag expansion board based on M24LR for STM32 Nucleo – data brief • UM1800: Getting started with X-NUCLEO-NFC02A1 dynamic NFC/RFID tag IC expansion board based on M24LR04E-R for STM32 Nucleo – user manual X-CUBE-NFC2: •...
- Page 12 Quick Start Guide Contents X-NUCLEO-NFC02A1: Dynamic NFC tag expansion board Hardware and Software overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
- Page 13 The STM32 Open Development Environment (ODE) consists of a set of stackable boards and a modular open SW environment designed around the STM32 microcontroller family. STM32 Nucleo STM32Cube expansion boards development software (X-NUCLEO) STM32Cube STM32 Nucleo expansion software development boards (X-CUBE) Function Packs (FP) www.st.com/stm32ode...
- Page 14 Power supply STM32 microcontroller through USB or external source Integrated debugging Complete product range and programming from ultra-low power to high-performance ST-LINK probe ST morpho extension header Arduino™ UNO R3 extension headers www.st.com/stm32nucleo...
- Page 15 Boards with additional functionality that can be plugged directly on top of the STM32 Nucleo development board directly or stacked on another expansion board. Connect Power Move/Actuate Interact Sense Motion MEMS sensors Environmental sensors DIL24 support for new devices Example of STM32 expansion board (X-NUCLEO-IKS01A1) www.st.com/x-nucleo...
-
Page 16: Software Components
Environment is compatible with a number of IDEs including IAR EWARM, Keil MDK, and GCC-based environments. Users can choose from three IDEs from leading vendors, which are free of charge and deployed in close cooperation with ST. These include Eclipse-based IDEs such as Ac6 System Workbench for STM32 and the MDK-ARM environment. - Page 17 NFC, Wi-Fi, GNSS Audio amplifier ACCESS Touch controller Translate Operation Amplifier CREATE Move / Stepper motor driver DC & BLDC motor driver Actuate Industrial input / output POWER Power Energy management & battery General-purpose microcontrollers PROCESS Process Secure microcontrollers www.st.com/stm32ode Software...
