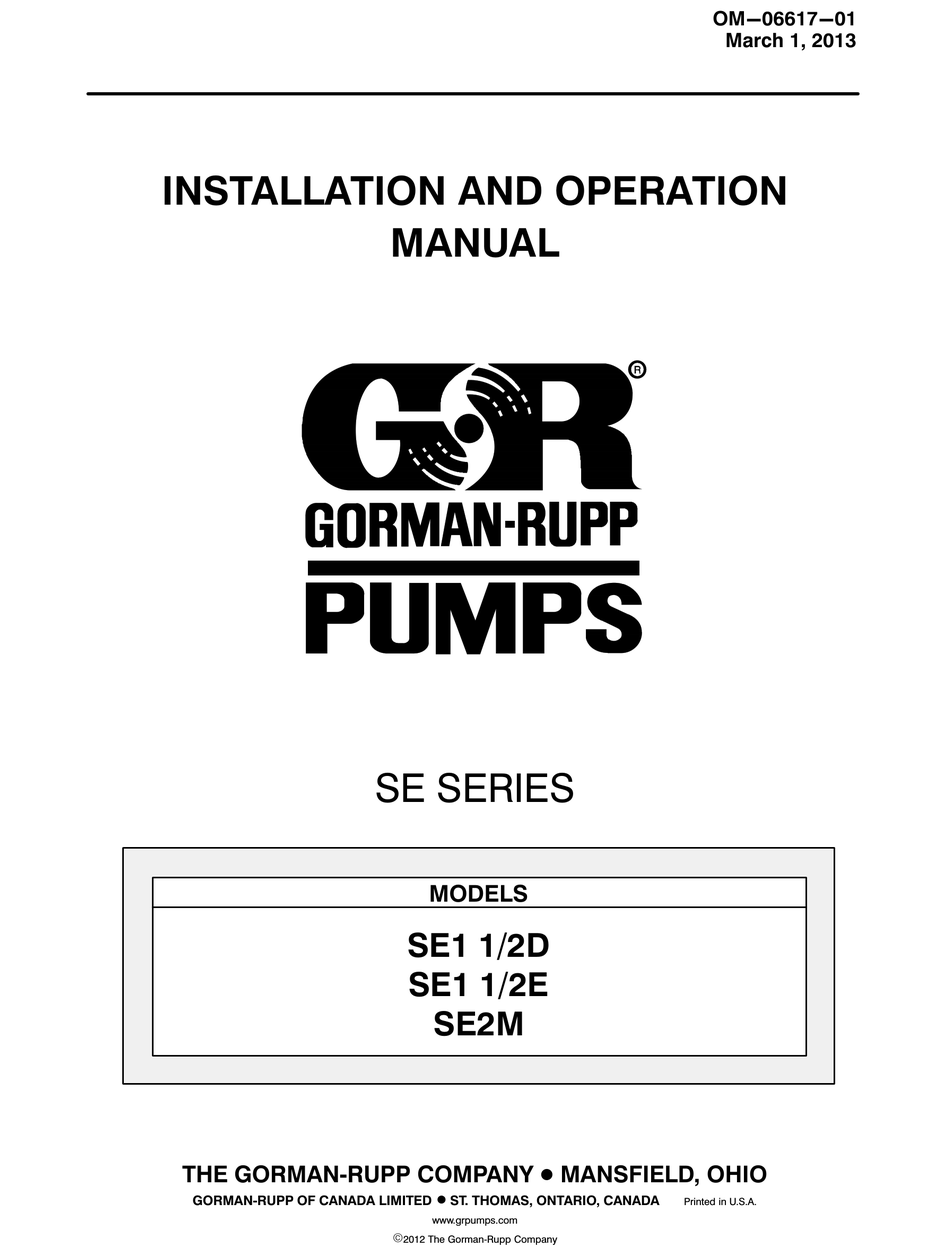

- Page 1 OM-06617-01 March 1, 2013 INSTALLATION AND OPERATION MANUAL SE SERIES MODELS SE1 1/2D SE1 1/2E SE2M THE GORMAN‐RUPP COMPANY D MANSFIELD, OHIO GORMAN‐RUPP OF CANADA LIMITED ST. THOMAS, ONTARIO, CANADA Printed in U.S.A. www.grpumps.com 2012 The Gorman‐Rupp Company...
- Page 2 Register your new Gorman‐Rupp pump online at www.grpumps.com Valid serial number and e‐mail address required. RECORD YOUR PUMP MODEL AND SERIAL NUMBER Please record your pump model and serial number in the spaces provided below. Your Gorman‐Rupp distributor needs this information if you have warranty questions. Pump Model: Serial Number:...
- Page 3 SE SERIES OM-06617 INTRODUCTION Thank You for purchasing a Gorman‐Rupp pump. The following are used to alert maintenance per Read this manual carefully to learn how to safely sonnel to procedures which require special atten install and operate your pump. Failure to do so tion, to those which could damage equipment, and could result in personal injury or damage to the to those which could be dangerous to personnel:...
- Page 4 SE SERIES OM-06617 SAFETY Because pump installations are seldom identical, this manual cannot possibly pro vide detailed instructions and precautions for each specific application. Therefore, it Never attempt to alter the length or repair is the owner/installer's responsibility to en any power cable with a splice.
-
Page 5: Pre-Installation Inspection
SE SERIES OM-06617 INSTALLATION Review all SAFETY information in Section A. charge hoses or piping before attempting to lift ex isting, installed units. If necessary, attach a rope or chain to the lifting handle on the top of the pump. Do not lift the unit by the power cable or the discharge piping. -
Page 6: Electrical Connections
OM-06617 SE SERIES The pump must be installed in a suitable gas‐tight, precedence. All electrical equipment sup properly vented basin which is at least 24 inches plied with this pump was in conformance with N.E.C. requirements in effect on the (610 mm) deep and is at least 18 inches (457 mm) date of manufacture. - Page 7 SE SERIES OM-06617 Never cut off the ground pin or use an adaptor fit PRECAUTIONS ting. Do not use an extension cord. For maximum safety, connect the pump to a circuit equipped with The following may cause severe damage to the a ground fault interrupter (GFI) type receptacle.
-
Page 8: Pump Operation
OM-06617 SE SERIES OPERATION Review all SAFETY information in Section A. Always keep the plug end dry. Follow the instructions on all tags, labels and decals attached to the pump. PUMP OPERATION Do not operate this pump where explo Figure 1. Always Keep Plug End Dry sive vapors or flammable material exist. - Page 9 OM-06617 SE SERIES Plug the pump cable into a grounded receptacle. STOPPING It is strongly recommended that a Ground Fault In terrupter (GFI) type receptacle (or equivalent) be To stop the pump when in manual mode, simply used (see Figure 2). unplug it from the receptacle.
- Page 10 OM-06617 SE SERIES it to dry thoroughly. Run the pump for two or three minutes to dry the inner walls. If the pump freezes, move it into a warm area until completely thawed, or submerge it into the liquid. If Do not attempt to thaw the pump by using the liquid is near freezing, the pump must be sub...
-
Page 11: Troubleshooting
OM-06617 SE SERIES TROUBLESHOOTING Review all SAFETY information in Section A. TROUBLE POSSIBLE CAUSE PROBABLE REMEDY PUMP WILL NOT Power cable loose in receptacle. Check. RUN (MANUAL GFI or circuit breaker tripped, fuse Check and reset GFI or breaker; MODE) blown. - Page 12 OM-06617 SE SERIES TROUBLESHOOTING (Cont'd) Review all SAFETY information in Section A. TROUBLE POSSIBLE CAUSE PROBABLE REMEDY Vertical pumping distance is too high. Reduce distance or change the PUMP RUNS BUT ONLY DELIVERS A discharge fittings of the pump. SMALL AMOUNT Strainer clogged.
- Page 14 For U.S. and International Warranty Information, Please Visit www.grpumps.com/warranty or call: U.S.: 419-755-1280 International: +1-419-755-1352...
