2. With the system disarmed, enter program mode at the
Allegro panel by pressing 8 + CODE.
3. Press the down arrow twice and the # key twice. The
Allegro panel display shows "ZONE XX- TRIP".
4. Locate the DTIM tamper switch and LED (see Figure 1
below).
5. Press and release the DTIM tamper switch as follows:
Press three times, holding the tamper switch down on the
third press until the LED flashes three times, then release
after the third press.
Immediately press two times, holding the tamper switch
down on the second press until the LED flashes two times,
then release after the second flash.
Immediately press and hold, then wait for the panel to
beep once indicating it learned the DTIM. Release the
tamper switch.
Timing is the key to success with this step. Do not wait
more than one second between switch activations. If you
wait too long, the LED will not flash and you must start
over. Do not release the tamper switch before the LED is
done flashing or you must start over.
6. Exit from program mode.
Refer to the Allegro documentation for more information on
programming the DTIM with an Allegro panel.

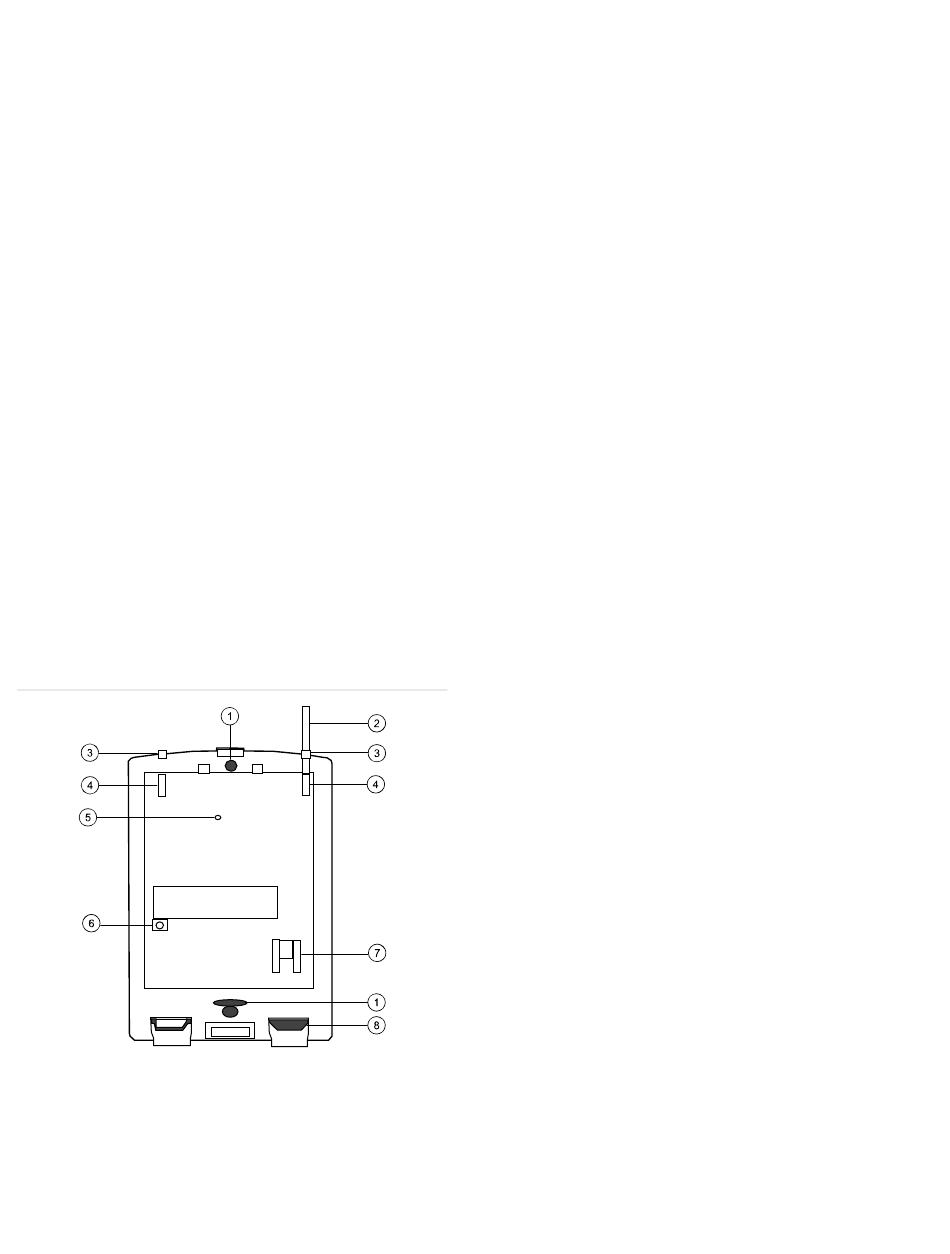

Figure 1: DTIM
1. Mounting hole
2. Antenna
3. Antenna guide
4. Antenna holder
2
5. LED
6. Tamper switch
7. Phone jack
8. Knockout removed
To learn the DTIM into a Simon (v4.1 or newer)
panel:
1. Remove the DTIM cover and install the antennas. Align
each antenna and push down until bare metal is not
visible.
2. Press Add. The panel announces, "Select from Main
Menu".
3. Press Sensor/Remote. The panel announces "Press
button on sensor".
4. Locate the DTIM tamper switch and LED (see Figure 1
above).
5. Press and release the DTIM tamper switch as follows:
Press three times, holding the tamper switch down on the
third press until the LED flashes three times, then release
after the third press.
Immediately press two times, holding the tamper switch
down on the second press until the LED flashes two times,
then release after the second flash.
Immediately press and hold, then wait for the panel to
beep once indicating it learned the DTIM. Release the
tamper switch.
Timing is the key to success with this step. Do not wait
more than one second between switch activations. If you
wait too long, the LED will not flash and you must start
over. Do not release the tamper switch before the LED is
done flashing or you must start over.
6. Press Sensor/Remote repeatedly until you hear the name
or item you want to use (for example, "Phone
communication module"). Each name may be used more
than once.
7. Press Done when you hear the desired name. The panel
announces "Use numbered keys to enter sensor group".
8. Enter the two-digit sensor group (08 or 36). The panel
announces the sensor group and the first available sensor
number, then prompts you to press Done to accept.
9. Press Done. The panel confirms programming by
announcing the sensor number, name, and group.
Refer to the Simon documentation for more information on
programming the DTIM with a Simon panel.
Testing DTIM transmitting range
The following section describes the basic steps for testing
transmitting range from the DTIM to the panel. For complete
testing instructions, refer to the panel's documentation.
