Interlogix ITI SuperBus 2000 Installation Instructions Manual





Document Number: 466-1031-01 Rev. A
August 2000
Product Summary
The SuperBus 2000 Energy Saver Module (ESM) provides a
money-saving and convenient way to monitor and control
temperatures. The ESM uses low- and high-temperature
limits to save energy by overriding the existing HVAC ther-
mostat. When the ESM is on, temperature limits determine
when the heat or air-conditioning turns on. When the ESM
is off, the HVAC thermostat controls heat and air-condition-
ing.
For example, if the thermostat is set for 68°F and the ESM
high limit is 80°F, the ESM prevents the air-conditioner
from turning on until the temperature reaches 80°F. The
ESM limits may be set between 40° and 90°F.
A temperature sensor monitors the temperature and reports
a freeze alarm to the panel if the temperature drops below
the set freeze temperature (default = 42°F). A backup freeze
stat provides additional protection by activating the furnace
if the temperature drops to 45°F (±6°F).
Note
Depending on where the ESM is located, additional
freeze sensors may need to be placed throughout the
residence to provide adequate freeze protection.
This device is backward compatible with Concord
with software versions 1.0–1.6 and UltraGard
SuperBus 2000 vs. SuperBus
Compatible panels (SuperBus 2000) have the ability to
auto-address module unit numbers. When the panel is pow-
ered up, the panel automatically reads the unique SuperBus
2000 device ID number and assigns a unit number to the
module. This eliminates manually setting DIP switches and
the chance of identical unit number conflicts.
Non-Compatible panels (SuperBus) communicate with
SuperBus 2000 modules but require the module unit num-
ber to first be set manually using DIP switches.
SuperBus 2000 Panels
Concord (software versions 2.0 and later)
SuperBus Panels
UltraGard
Concord (software versions 1.0–1.6)
SuperBus® 2000 Energy Saver Module



panels
™
panels.
™
Installation Instructions

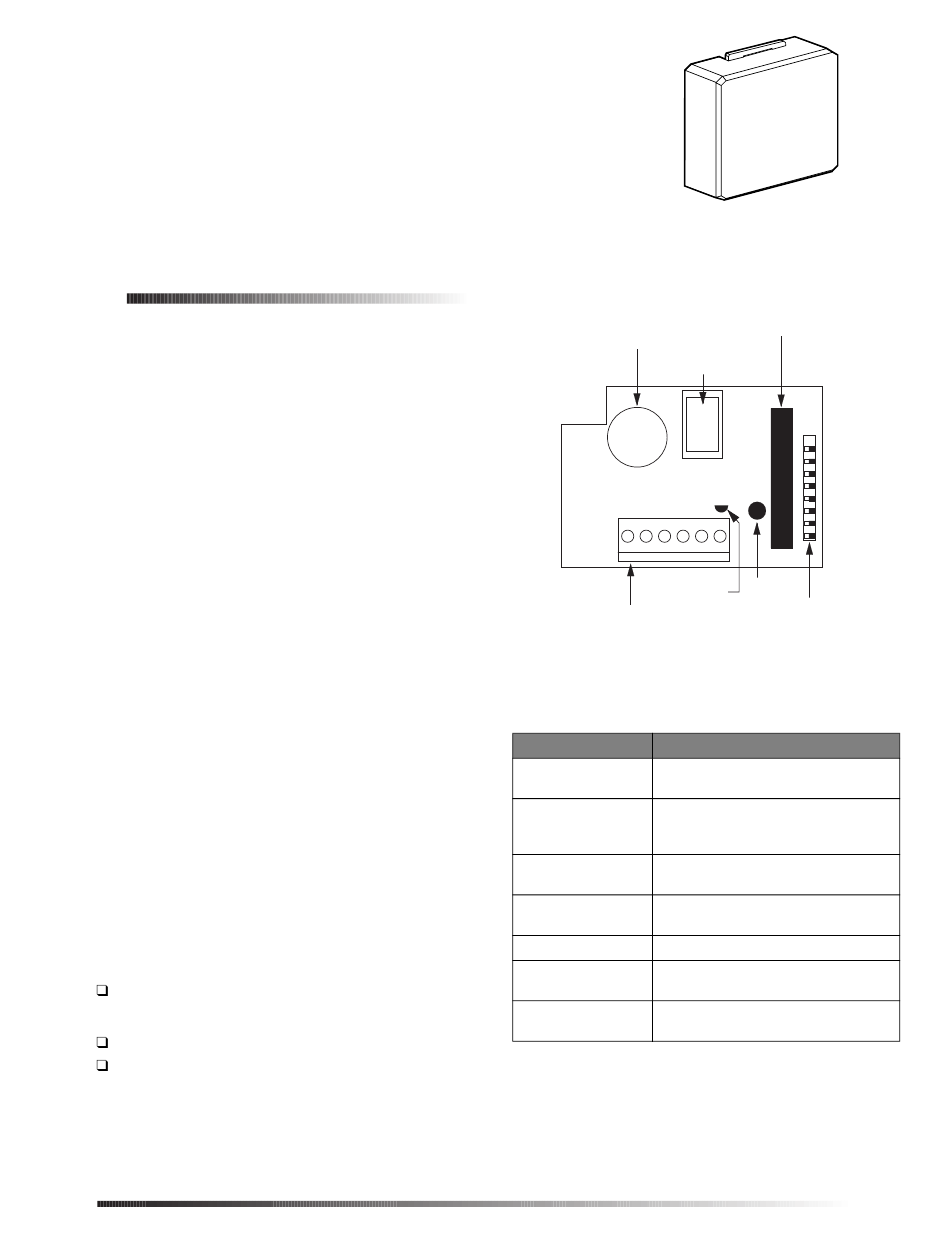

Figure 1 shows the main ESM components and Table 1
describes them.
BACKUP
FREEZE
STAT
SUPERBUS 2000
DEVICE ID
NUMBER LABEL
1 2 3 4
TEMPERATURE
SENSOR
TERMINAL STRIP
Figure 1. ESM Component Locations
Table 1: ESM Component Descriptions
ESM Component
Backup Freeze Stat Activates furnace if temperature drops
to 45°F (±6°F).
SuperBus 2000 Identifies unique device ID number
Device ID Number (SuperBus 2000 panels).
Label
ESM Software Identifies the installed software
Version Label version.
Terminal Strip Used for panel and HVAC thermostat
connections.
Temperature Sensor Monitors the premises temperature.
Bus LED Flashes constantly to indicate normal
communication to the panel bus.
Unit Number DIP Used for manually setting unit
Switches numbers (SuperBus panels).
ITI Part No. 60-620-01
8841G01A.DS4
ESM SOFTWARE
VERSION LABEL
5 6
BUS
LED
UNIT NUMBER
DIP SWITCHES
8557G31C.DS4
Function
