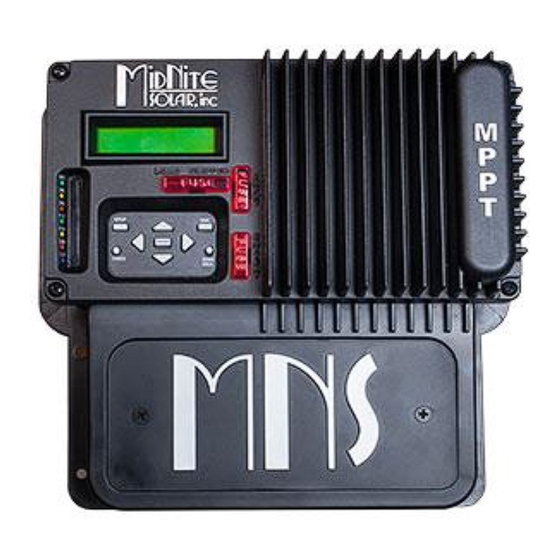

- Page 2 Midnite Kid Basic Solar Charging Kit What does my kit come with? MNKID-B 30-amp MPPT Charge Controller MNBIGBABY- 4 position breaker box 2 pcs MNEPV30- PV and battery breaker 1 pc GFP63 Ground Fault Protection Breaker 2pcs each Strain Relief wire...
- Page 3 Midnite Kid Basic Solar Charging Kit 1 pc MNBTS Battery Temperature Sensor 1- 4 foot pc Flexible Conduit 1 pc MNSBB-W Bus bar for PV negative with white insulated standoffs and mounting screws. Red and black not included with this kit 1 pc MNSBBN uninsulated ground bus bar...
- Page 4 Talk to your renewable energy supplier who will help you purchase the solar modules, module mounting hardware and batteries appropriate for your needs. Then use the Midnite Solar KID Charging Kit to tie it all together as a safe and reliable system.
-
Page 5: Planning Ahead
Midnite Kid Basic Solar Charging Kit Planning Ahead: Things to consider when selecting a location for the BIG BABY and KID: Length of wire- The longer the wire the more voltage drop (power loss) you will have. If you need to run a long distance, it is recommended to use a larger size wire for that specific connection. - Page 6 Midnite Kid Basic Solar Charging Kit P a g e 1 0 - 4 0 4 - 1 R E V -...
- Page 7 Midnite Kid Basic Solar Charging Kit Open the Big Baby by removing the 2 screws in the front. Remove the bottom nut from each strain relief and insert them, with threads to the inside, through the top and bottom knock out holes. Firmly hand tighten the nuts to secure the strain reliefs to the Big Baby.
- Page 8 Midnite Kid Basic Solar Charging Kit All of your Negative wires will come to this busbar. To install it there are 2 screws in the KIT that will attach the black mounting brackets to the BigBaby. Big Baby Wiring NOTE: Please consult your KID manual or see http://www.midnitesolar.com/pdfs/10-293-1_REV- E_KIDManual.pdf for accessories that might need to be wired at this time such as ground wires, load and...
- Page 9 Midnite Kid Basic Solar Charging Kit The breakers when installed should have the letters right side up and the breaker handles should be in the off position. (HINT) When stripping wire, it is recommended to only strip enough insulation off the wire to fit into your connecter, approximately 3/8"...
- Page 10 Midnite Kid Basic Solar Charging Kit Wiring the GFP-63 breaker The positive PV wire connects to the bottom (the ++ end) of the MNDC-GFP63 breaker on the left-hand side. From the top of the MNDC-GFP63 breaker on the left-hand side, the wire wraps around to the bottom of the PV Breaker.
- Page 11 Midnite Kid Basic Solar Charging Kit Mounting the ground bus bar At this time, you can install the non-insulated grounding bus bar in the mounting hole right next to where the battery wires will come into. You will use the fastening hardware for this. Note that the Green wire from the GFP -63 will go right into it.
- Page 12 Midnite Kid Basic Solar Charging Kit Estimate the length of wire needed to go from the Big Baby to the KID terminal block. Cut and install two #10 negative wires of appropriate length to the negative bus bar, then two #10 positive wires to the top of the two breakers (the - - end).
- Page 13 Midnite Kid Basic Solar Charging Kit Marking your wires is ALWAYS a good idea Wiring the KID Controller To make the final connections to the KID, take the two solar wires coming from the top of the Big Baby and pass them through conduit and connect them to the PV Plus and PV Minus terminals.
- Page 14 Midnite Kid Basic Solar Charging Kit Do NOT make the final connection to your battery terminals at this time or you will be working with live wires! We recommend installing the MNKID at the highest point in your installation. Since the wiring comes out the bottom of the MNKID, it is easier to run the conduit straight down to the BIG BABY.
- Page 15 For warranty information please refer to the manuals that came with your equipment. Save all the manuals that came with your equipment and keep them in a system folder. They tend to come in handy at times! For support for all Midnite Solar Products: By phone: 360-403-7207 By email: support@midnitesolar.com...
