MNE300ROSIE-240P MANUAL
Rosie E-Panel Owner's Manual
1| P a g e
1 0 - 5 6 2 - 1
R E V : D

Advertisement

loading
Need help?

Need help?

Do you have a question about the MNE300ROSIE-240F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for MidNite Solar MNE300ROSIE-240F

Summary of Contents for MidNite Solar MNE300ROSIE-240F

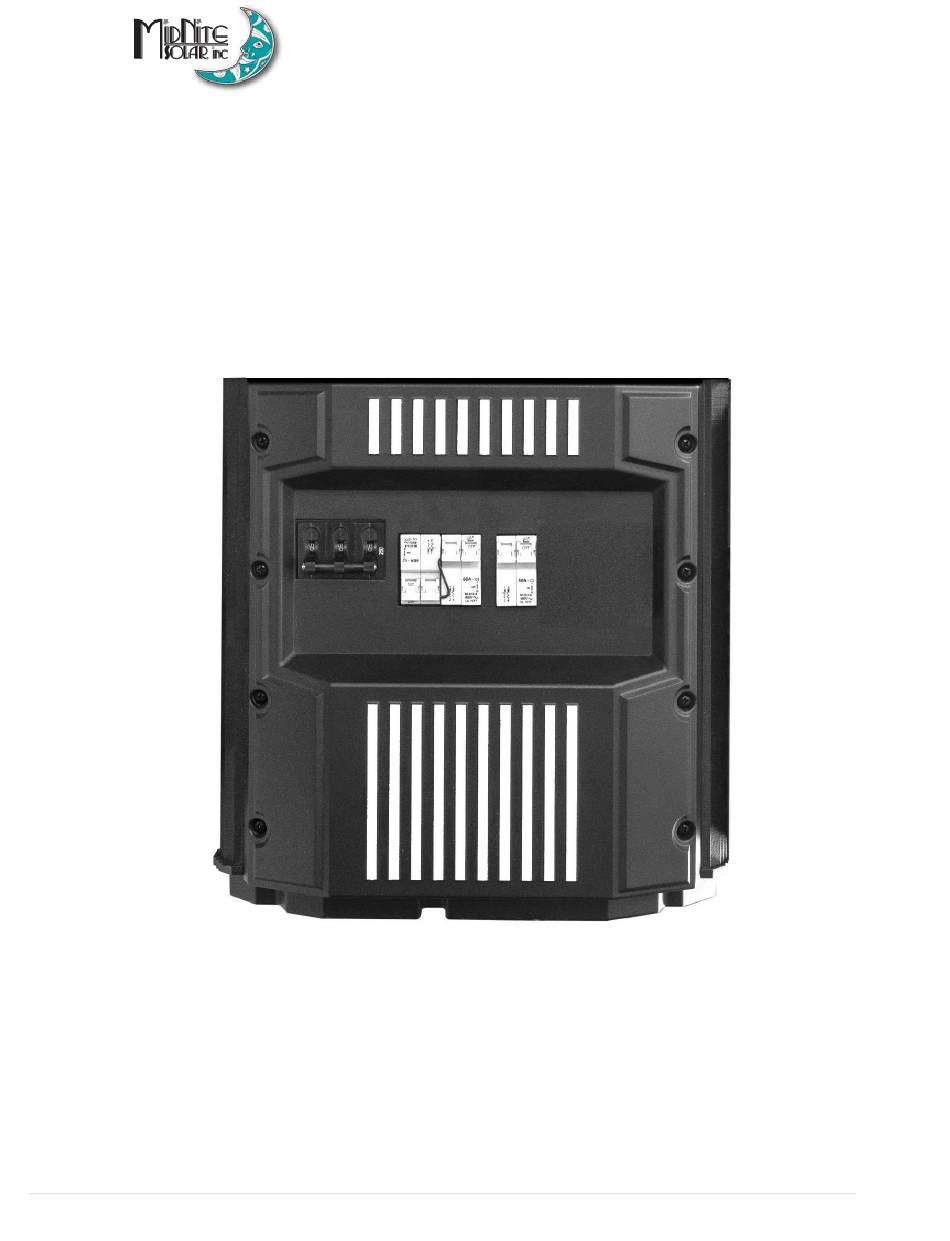

  • Page 1 MNE300ROSIE-240P MANUAL Rosie E-Panel Owner’s Manual 1| P a g e 1 0 - 5 6 2 - 1 R E V : D...
  • Page 2 MNE300ROSIE-240P MANUAL Table of Contents Introduction ..........................3 Safety Instructions ......................... 4 Battery Safety ..........................5 How to KILL Your Batteries ....................7 How An Inverter/Charger Works .................... 8 Wiring Requirements ......................8 DC Wiring and Over-Current Protection ..................9 AC Wiring and Over-Current Protection ...................

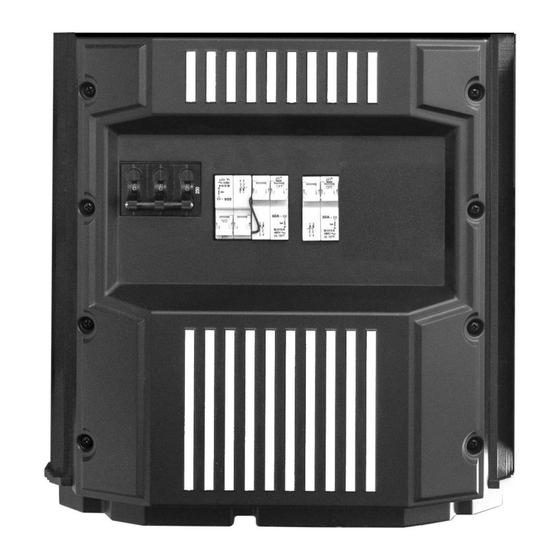

  • Page 3 AC IN, AC OUT, and to the battery bank. The E-Panel is designed specifically for the MidNite Solar MNROSIE7048 inverter/charger. Standard Features: • Terminal blocks to attach optional MidNite Solar Surge Protection Devices • Styled to match the MNROSIE7048 inverter/charger •...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS THIS MANUAL CONTAINS IMPORTANT INSTRUCTIONS FOR THE MIDNITE SOLAR ROSIE E-PANEL THAT SHALL BE FOLLOWED DURING INSTALLATION AND OPERATION. If you do not fully understand any of the concepts, terminology, or hazards outlined in these instructions, please refer installation to a qualified dealer, electrician, or installer.
  • Page 5 MNE300ROSIE-240P MANUAL inverter. Turning off the inverter will NOT reduce this risk; the inverter must be totally disconnected from all sources. • System grounding is the responsibility of the system installer and must comply with local and national electrical codes and standards. •...
  • Page 6 Add distilled water as needed. Do NOT fill to the bottom of the funnel neck before you equalize. The electrolyte will probably spill out. o Use the MidNite Solar’s MNHYDROMETER to measure the specific gravity. Check with your battery manufacturer for the specific gravity values.
  • Page 7 MNE300ROSIE-240P MANUAL STANDARDS The MidNite Solar MNE300ROSIE-240P is listed to UL 1741, 3rd Edition - UL Standard for Safety Inverters, Converters, Controllers, and Interconnection System Equipment for Use with Distributed Energy Resources and to CSA 22.2, No. 107.1, 4th Edition - Power Conversion Equipment is pending.
  • Page 8 MNE300ROSIE-240P MANUAL • Not verifying you are charging to the voltage supplied by the battery manufacturer. • Not fully charging your lead acid batteries at least once a week. • Failing to keep all connections clean. HOW AN INVERTER/CHARGER WORKS Inverter Mode When the inverter is properly connected to batteries and turned on, the direct current (DC) from the batteries is transformed into a pure sine wave alternating current (AC).
  • Page 9 MNE300ROSIE-240P MANUAL o Coordination of conductor sizes and over-current protection shall be done in accordance with the Canadian Electrical Code, Part 1. • Use only copper wires with a minimum temperature rating of 90°C. • The equipment ground is marked with this symbol: CAUTION! The Rosie E-Panel is designed for indoor installation or installation inside a weatherproof enclosure.
  • Page 10 MNE300ROSIE-240P MANUAL • A readily accessible battery disconnect is required and must be located within sight of the battery system (NEC 480.7). o If the batteries are external to the location of the Rosie, then the battery installation must be done in accordance with the storage battery rules of the Canadian Electrical Code, Part 1.
  • Page 11 MNE300ROSIE-240P MANUAL WARNING! Do NOT connect the E-Panel’s AC OUT to an external AC power source. WARNING! In most electrical systems, the neutral-to-ground bond is located in the main utility service entrance panel. Remove any bond downstream from the inverter to prevent multiple bonds. If there is an inverter sub-panel—separate from a main electrical panel—it should have a removable wire that allows the neutral bus to be unbonded from the ground busbar.
  • Page 12 MNE300ROSIE-240P MANUAL • The AC neutral and equipment ground should only be bonded in one location for the entire system. Arc Fault - The NEC requires any PV system DC circuit operating at 80VDC or greater must be protected by an arc fault (AF) circuit interrupter. Ground Fault - Since 2008 the NEC requires a DC Ground Fault (GF) Protection device on all PV systems to indicate when a GF condition exists.
  • Page 13 MNE300ROSIE-240P MANUAL airspace clearance of 6” at the vents and 3” everywhere else to provide adequate ventilation. • The area must be free from any risk of condensation, water, or any other liquid that can enter or fall on the inverter. The Rosie is indoor rated and should not be placed outside unless precautions are taken to keep rain and moisture off the system.
  • Page 14 MNE300ROSIE-240P MANUAL Mounting – Rosie and E-Panel with Backplate (Figure 1) 1. It is easier to assemble and wire the units together (Backplate lying flat on a workbench) then attach the assembled system to the wall. The assembled system will be heavy and requires two persons to mount to the wall.
  • Page 15 MNE300ROSIE-240P MANUAL Figure 3 15| P a g e 1 0 - 5 6 2 - 1 R E V : D...
  • Page 16 MNE300ROSIE-240P MANUAL Internal Wiring (Figures 4/5) Batt Busbars (#1) 1. Ensure all breakers are off (down). 2. Connect the pre-installed Batt+ busbar to the Rosie Batt+ terminal. 3. Connect the pre-installed Batt- busbar to the Rosie Batt- terminal. Figure 2 4.
  • Page 17 MNE300ROSIE-240P MANUAL Surge Protection Devices (SPDs) (Figure 6) 1. Install pick-offs at the bottom of the various feed-through terminals (#6) to wire in SPDs. 2. AC OUT – Connect SPD (MNSPD300AC) red and black wires to AC OUT L1 and L2. Green to ground busbar.
  • Page 18 MNE300ROSIE-240P MANUAL 2. Connect two #6 AWG wires (L1 & WARNING! L2) between E-Panel AC IN Verify correct polarity with a multimeter terminals and AC grid or generator BEFORE connecting the battery cables to the source. Rosie. The Rosie will trip the battery breaker if 3.
  • Page 19 MNE300ROSIE-240P MANUAL Charge Controller Wiring (Figures 9/10) PV/Batt Breakers (#13) 1. If using a charge controller in your system, install PV and Battery breakers on the DIN rail (#13). PV Wires (#14/15/17) 1. Ensure all breakers are off (down). Figure 9 2.
  • Page 20 MNE300ROSIE-240P MANUAL 3. Connect Batt+ wire from charger controller’s Batt+ breaker (#16) to the bottom of the E- Panel Batt+ terminal (#14). 4. Connect Batt- wire from charge controller’s Batt- terminal (#17) to the bottom of the E- Panel Batt- terminal (#14). 5.
  • Page 21 MNE300ROSIE-240P MANUAL There are several reasons why you may need to use the bypass breaker: • The Rosie has failed. o Turn on the generator, move bypass breakers to the Bypass position (move Bypass slider down), now the generator is passing directly from AC IN to AC OUT. •...
  • Page 22 MNE300ROSIE-240P MANUAL • Turn ON (close) the E-Panel Battery breaker. • Voltmeter – Measure for battery bank voltage between the Rosie’s Batt+ and Batt- terminals. o Battery bank voltage present? ▪ Yes – Good. The Rosie will automatically turn on now. ▪...
  • Page 23 MNE300ROSIE-240P MANUAL ▪ No – Check AC source, connections, or AC IN breaker. • Voltmeter – Measure for 120VAC between Rosie’s AC L2 IN and AC Neutral terminal. o 120VAC present? ▪ Yes – Good ▪ No – Check AC source, connections, or AC IN breaker. •...
  • Page 24 MNE300ROSIE-240P MANUAL 24| P a g e 1 0 - 5 6 2 - 1 R E V : D...
  • Page 25 The Rosie Inverter/Charger may be stacked in a dual system configuration to achieve 14KW at 240VAC using the Rosie MNE300ROSIE-240P E-Panel as Primary and the MNE300ROSIE-240F as Follower. The Follower E-Panel offers AC and DC OCP for the second Rosie. AC wires and DC cables from the Follower E-Panel are routed to the Primary E-Panel.
  • Page 26 MNE300ROSIE-240P MANUAL 26| P a g e 1 0 - 5 6 2 - 1 R E V : D...
  • Page 27 MNE300ROSIE-240P MANUAL 27| P a g e 1 0 - 5 6 2 - 1 R E V : D...
  • Page 28 MNE300ROSIE-240P MANUAL 28| P a g e 1 0 - 5 6 2 - 1 R E V : D...
  • Page 29 MNE300ROSIE-240P MANUAL 29| P a g e 1 0 - 5 6 2 - 1 R E V : D...
  • Page 30 Those components are warranted by the original manufacturer. At its option, MidNite Solar will repair or replace at no charge any MidNite product that proves to be defective within such warranty period. This warranty shall not apply if the MidNite Solar...
  • Page 31 DISCLAIMER Unless specifically agreed to in writing, MidNite Solar Inc.: (a) Makes no warranty as to the accuracy, sufficiency, or suitability of any technical or other information provided in its manuals or other documentation; (b) Assumes no responsibility or liability for loss or damage whether direct, indirect, consequential, or incidental, which might arise out of use of such information.
