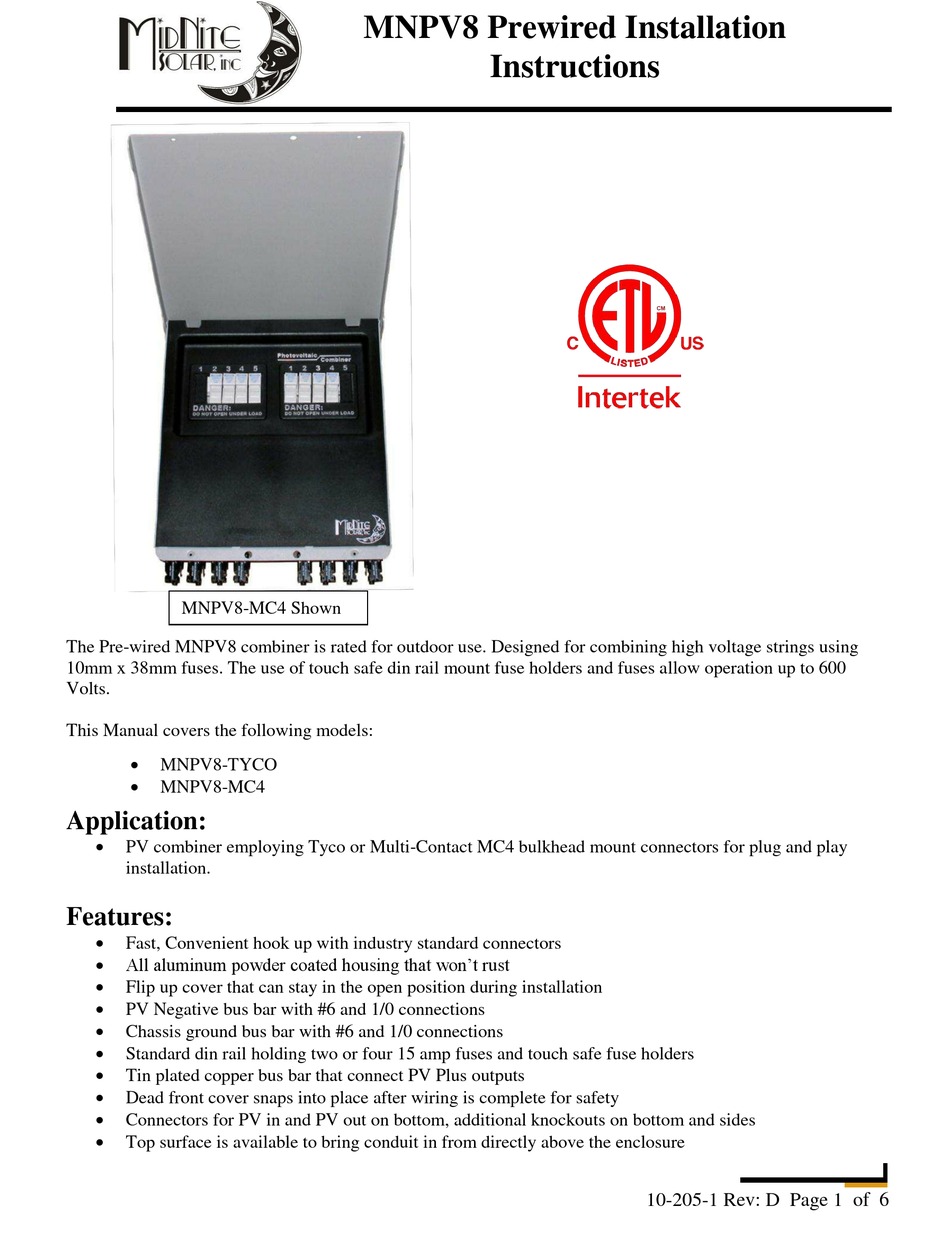

MidNite Solar MNPV8 series Prewired Installation Instructions

MNPV8-MC4 Shown
The Pre-wired MNPV8 combiner is rated for outdoor use. Designed for combining high voltage strings using
10mm x 38mm fuses. The use of touch safe din rail mount fuse holders and fuses allow operation up to 600
Volts.
This Manual covers the following models:

MNPV8-TYCO

MNPV8-MC4

Application:


PV combiner employing Tyco or Multi-Contact MC4 bulkhead mount connectors for plug and play
Installation.

Features:


Fast, Convenient hook up with industry standard connectors
 All aluminum powder coated housing that won't rust

Flip up cover that can stay in the open position during installation

PV Negative bus bar with #6 and 1/0 connections

Chassis ground bus bar with #6 and 1/0 connections

Standard din rail holding two or four 15 amp fuses and touch safe fuse holders

Tin plated copper bus bar that connect PV Plus outputs

Dead front cover snaps into place after wiring is complete for safety

Connectors for PV in and PV out on bottom, additional knockouts on bottom and sides

Top surface is available to bring conduit in from directly above the enclosure
MNPV8 Prewired Installation
Instructions
10-205-1 Rev: D Page 1 of 6
