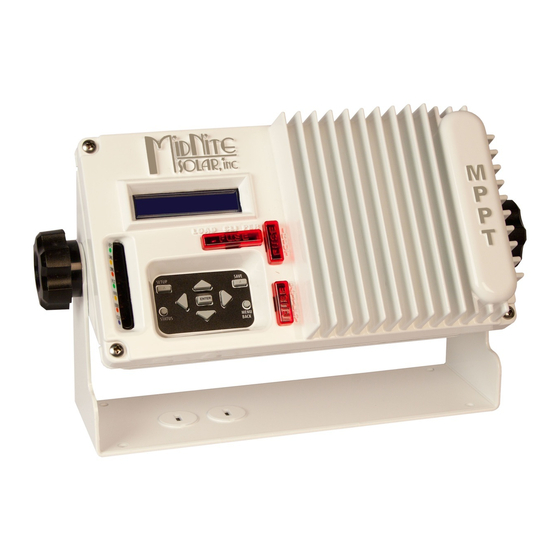

MidNite Solar Kid Quick Start Manual

MIDNITE SOLAR INC. - KID MENU MAP

QUICK START SETUP

Battery Nominal Voltage
12V, 24V, 36V & 48V
BATTERY MENU -
Adjust Setpoints
Absorb
Volts
Time
Flt
Volts
EQ
Equalize Battery
On/Off
Start
S
S
AmpLmt
Load - Amps
Battery - Amps
Tcomp
mV/dC/Cell - mV
EQ - Yes/No
TcompLimits
Min Volts - Volts
Max - Volts
Advanced
End Amps - Amps
Rebulk - Volts
S S S S S Symbolizes the SETUP button being pushed.
Battery Type Battery Absorb
Custom
Volts
Lithium
Calcium SMF
Gel
AGM
Flooded - defalt
LOAD MENU -
Set Load/Clipper
Battery Input - Empty Menu
Func:
Manual - OFF/ON
S
Dusk + Hours - OFF/Auto
S
Night Light - OFF/Auto
Volts
Time
S
Day Light - OFF/Auto
S
PWM Divert - OFF/Auto
S
Float On - OFF/Auto
S
Float Off - OFF/Auto
S
Diversion - OFF/Auto
S
Toggle - OFF/Auto
S
Dec 01, 2014
Battery Float Battery Equalize
Volts
INPUT MENU -
Mode:
Lowbatt
Reconn
Dusk+
Lowbatt
AUX MENU -
Reconn
Func:
Lowbatt
Reconn
Offset
Width
Lowbatt
Reconn
Lowbatt
Reconn
VoltOn
VoltOff
Beta Unit - No/Yes
REV: v1742
Input Function
Solar
Volts
Solar 2
USet
Status Menu
Adjust MPPT Mode
SOLAR - OFF/On
S
Sweep Internal - Auto/Minutes
SOLAR 2 O&P - OFF/ON
S SOLAR O&P - Setup
U-Set Voc % - OFF/ON
Interval - Disabled/Minutes
S
VOC% - #%
LEGACY P&O - OFF/ON
Setup Aux Func
WBJR - OFF/Auto
Battery Capacity - Ah
Batt Efficiency - %
S
Batt Temp Ref - OC
Batt Change % - %
LBD High - OFF/AUTO
LBD Low - OFF/AUTO
www.midnitesolar.com
17722 - 67th Ave NE, Arlington, WA 98223
PH 360-403-7207 FAX 360-691-6862
Pg 1
Save
