MNE300ROSIE-240P MANUAL Table of Contents Introduction ..........................3 Safety Instructions ......................... 4 Battery Safety ..........................5 How to KILL Your Batteries ....................7 How An Inverter/Charger Works .................... 8 Wiring Requirements ......................8 DC Wiring and Over-Current Protection ..................9 AC Wiring and Over-Current Protection ...................

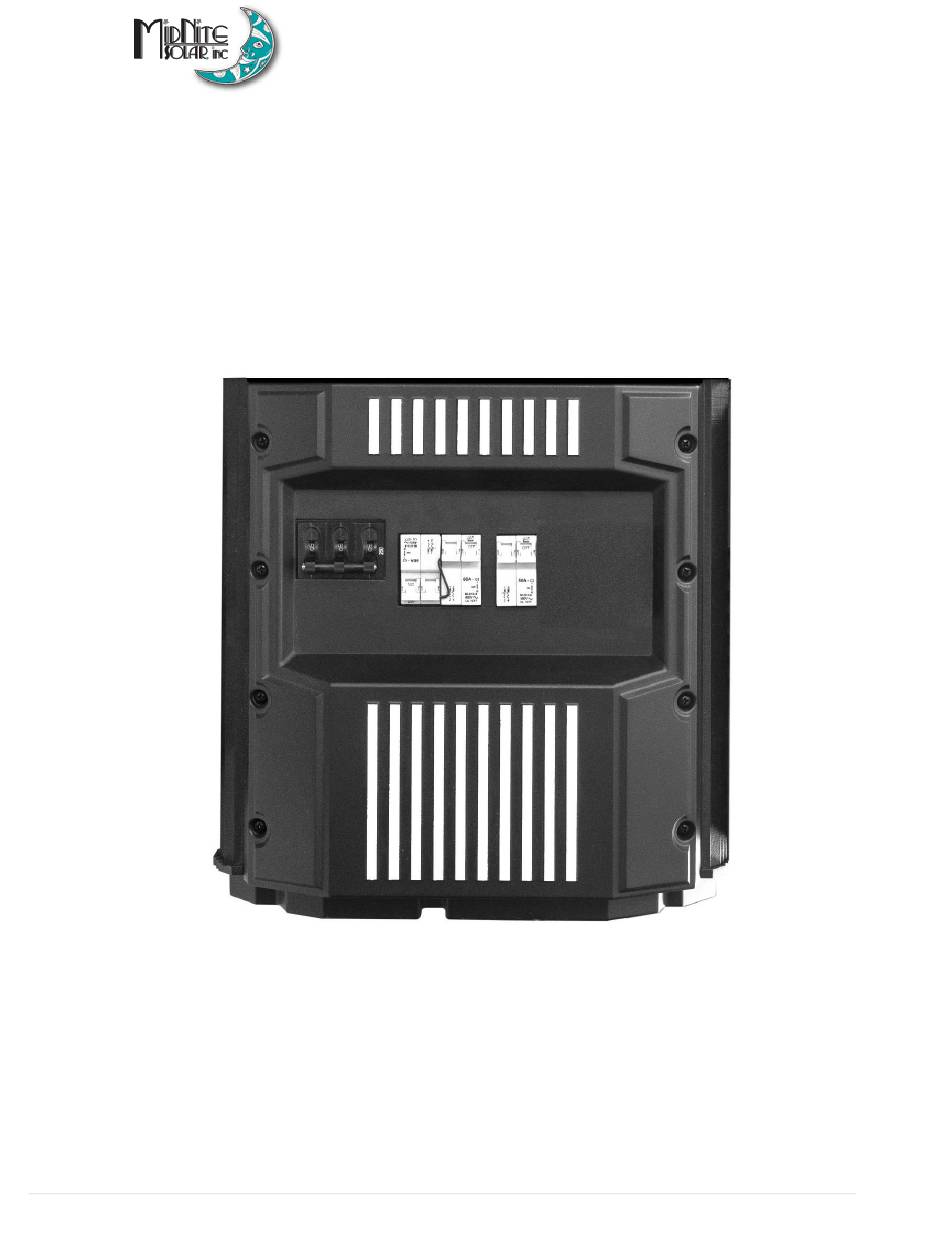

AC IN, AC OUT, and to the battery bank. The E-Panel is designed specifically for the MidNite Solar MNROSIE7048 inverter/charger. Standard Features: • Terminal blocks to attach optional MidNite Solar Surge Protection Devices • Styled to match the MNROSIE7048 inverter/charger •...
IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS THIS MANUAL CONTAINS IMPORTANT INSTRUCTIONS FOR THE MIDNITE SOLAR ROSIE E-PANEL THAT SHALL BE FOLLOWED DURING INSTALLATION AND OPERATION. If you do not fully understand any of the concepts, terminology, or hazards outlined in these instructions, please refer installation to a qualified dealer, electrician, or installer.
MNE300ROSIE-240P MANUAL inverter. Turning off the inverter will NOT reduce this risk; the inverter must be totally disconnected from all sources. • System grounding is the responsibility of the system installer and must comply with local and national electrical codes and standards. •...
Page 6
Add distilled water as needed. Do NOT fill to the bottom of the funnel neck before you equalize. The electrolyte will probably spill out. o Use the MidNite Solar’s MNHYDROMETER to measure the specific gravity. Check with your battery manufacturer for the specific gravity values.
MNE300ROSIE-240P MANUAL STANDARDS The MidNite Solar MNE300ROSIE-240P conforms to UL 1741, Safety for Inverters, Converters, Controllers and Interconnection System Equipment for Use with Distributed Energy Resources, UL 1741:2010 Ed.2+R:15Feb2018; CSA C22.2#107.1:2016 Ed.4; and UL 458:2015Ed.6 Power Converters/Inverters and Power Converter/Inverter Systems for Land Vehicles and Marine Crafts.
MNE300ROSIE-240P MANUAL • Not verifying you are charging to the voltage supplied by the battery manufacturer. • Not fully charging your lead acid batteries at least once a week. • Failing to keep all connections clean. HOW AN INVERTER/CHARGER WORKS Inverter Mode When the inverter is properly connected to batteries and turned on, the direct current (DC) from the batteries is transformed into a pure sine wave alternating current (AC).
MNE300ROSIE-240P MANUAL o Coordination of conductor sizes and over-current protection shall be done in accordance with the Canadian Electrical Code, Part 1. • Use only copper wires with a minimum temperature rating of 90°C. • The equipment ground is marked with this symbol: CAUTION! The Rosie E-Panel is designed for indoor installation or installation inside a weatherproof enclosure.
MNE300ROSIE-240P MANUAL • A readily accessible battery disconnect is required and must be located within sight of the battery system (NEC 480.7). o If the batteries are external to the location of the Rosie, then the battery installation must be done in accordance with the storage battery rules of the Canadian Electrical Code, Part 1.
Page 11
MNE300ROSIE-240P MANUAL WARNING! Do NOT connect the E-Panel’s AC OUT to an external AC power source. WARNING! In most electrical systems, the neutral-to-ground bond is located in the main utility service entrance panel. Remove any bond downstream from the inverter to prevent multiple bonds. If there is an inverter sub-panel—separate from a main electrical panel—it should have a removable wire that allows the neutral bus to be unbonded from the ground busbar.
MNE300ROSIE-240P MANUAL Grounding • The negative battery conductor should be solidly bonded to the grounding system at only one point in the system. The size for the conductor is determined by the size of the largest phase conductor, per the NEC/CEC. •...
Page 13
MNE300ROSIE-240P MANUAL The 36” clear area in front of all electrical panels is to provide a space to fall back into in case of electrical shock. • Do not cover or block the Rosie’s ventilation openings or install in an area with limited airflow.
MNE300ROSIE-240P MANUAL o DC cables to battery bank o Battery Temp Sensor • Mount vertically on a flat, non-combustible surface. Mounting – Rosie and E-Panel (Figure 1) 1. It is easier to wire the units together before mounting using the optional Rosie Backplate.
Page 15
MNE300ROSIE-240P MANUAL Figure 2 15| P a g e 1 0 - 5 6 2 - 1 R E V : -...
MNE300ROSIE-240P MANUAL Internal Wiring (Figures 3/4) Batt Busbars (#1) 1. Ensure all breakers are off (down). 2. Connect the pre-installed Batt+ busbar to the Rosie Batt+ terminal. 3. Connect the pre-installed Batt- busbar to the Rosie Batt- terminal. Figure 2 4.
MNE300ROSIE-240P MANUAL Surge Protection Devices (SPDs) (Figure 5) 1. Wire SPDs to the pick-offs at the bottom of the various feed-through terminals (#1). 2. AC OUT – Connect SPD (MNSPD300AC) PV SPD red and black wires to AC OUT L1 and L2. Green to ground busbar.
MNE300ROSIE-240P MANUAL 2. Connect two #6 AWG wires (L1 & WARNING! L2) between E-Panel AC IN Verify correct polarity with a multimeter terminals and AC grid or generator BEFORE connecting the battery cables to the source. Rosie. The Rosie will trip the battery breaker if 3.
Page 19
MNE300ROSIE-240P MANUAL PV Wires (#12/15/16) 1. Ensure all breakers are off (down). 2. Connect PV+ wire from the PV array to the PV+ terminal (#12). 3. Connect PV+ wire from PV+ terminal (#12) to the PV IN breaker (#15). 4. Connect PV+ wire from the PV IN breaker (#15) to charge controller’s PV+ terminal (#16).
MNE300ROSIE-240P MANUAL HOW THE E-PANEL WORKS (Figures 9/10/11) NOTE: Yellow arrows show AC path. To minimize clutter, only L1 is marked; L2 flows the same as L1. AC IN (Figure 9) With AC IN wired from the AC Source (#1), and the AC IN breaker (#2) on, AC IN flows from (#1) through the AC IN breaker (#2) to the Rosie AC IN terminal (#3).
MNE300ROSIE-240P MANUAL There are several reasons why you may need to use the bypass breaker: • The Rosie has failed. o Turn on the generator, move bypass breakers to the Bypass position (move Bypass slider down), now the generator is passing directly from AC IN to AC OUT.
Page 22
MNE300ROSIE-240P MANUAL Step #4 – AC OUT (Shown in Figure 10) • Ensure AC Bypass breakers are OFF (Bypass slider is up, in the INVERT position). • Voltmeter – Measure for 120VAC between Rosie’s AC L1 OUT and AC Neutral terminal. o 120VAC present? ▪...
Page 23
MNE300ROSIE-240P MANUAL ▪ No – Check AC source or connections. • Repeat same measurements for Step #4 – AC OUT. Checking for AC OUT while AC IN is active. • Check that the batts are being charged. o Yes – Good o No –...
Those components are warranted by the original manufacturer. At its option, MidNite Solar will repair or replace at no charge any MidNite product that proves to be defective within such warranty period. This warranty shall not apply if the MidNite Solar...
Page 28
DISCLAIMER Unless specifically agreed to in writing, MidNite Solar Inc.: (a) Makes no warranty as to the accuracy, sufficiency, or suitability of any technical or other information provided in its manuals or other documentation; (b) Assumes no responsibility or liability for loss or damage whether direct, indirect, consequential, or incidental, which might arise out of use of such information.
