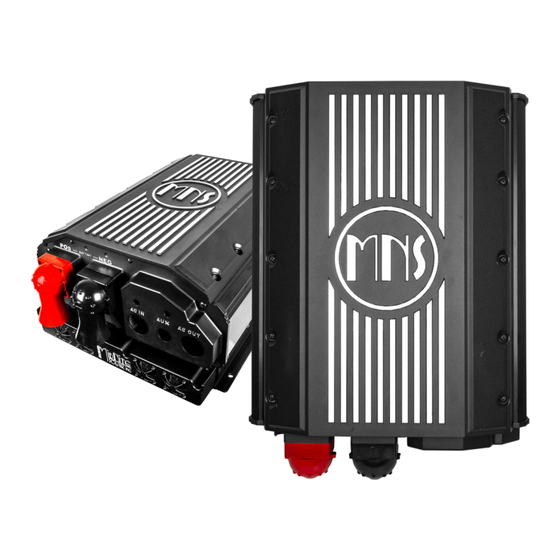

MidNite Solar MNROSIE7048M Owner's Manual

Rosie inverter / charger

Hide thumbs Also See for MNROSIE7048M:

Owner's manual (57 pages)

page of 56

/ 56
Bookmarks

Quick Links

Download this manual

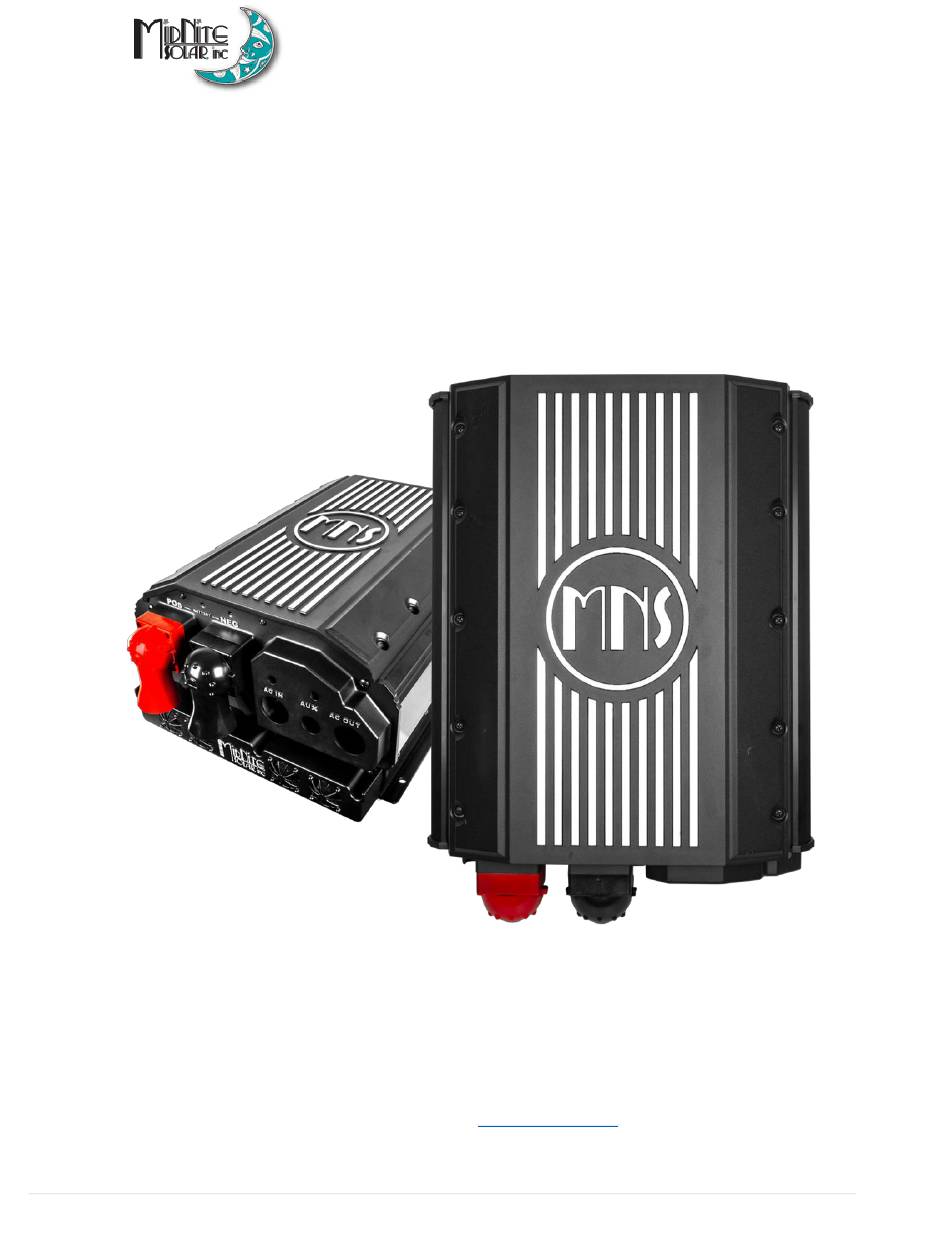

MNROSIE7048 MANUAL

Rosie Inverter / Charger Owner's Manual

MNROSIE7048RE - MNROSIE7048M

This entire manual is printed without color but is available for download—with many of the

diagrams available in color—on our website at midnitesolar.com.

1| P a g e

1 0 - 4 3 2 - 1

R E V : C

Need help?

Do you have a question about the MNROSIE7048M and is the answer not in the manual?

Questions and answers

Summary of Contents for MidNite Solar MNROSIE7048M

Page 1 MNROSIE7048 MANUAL Rosie Inverter / Charger Owner’s Manual MNROSIE7048RE - MNROSIE7048M This entire manual is printed without color but is available for download—with many of the diagrams available in color—on our website at midnitesolar.com. 1| P a g e 1 0 - 4 3 2 - 1...
Page 2 DC Wiring and Over-Current Protection ................... 11 AC Wiring and Over-Current Protection ................... 13 Grounding / Arc Fault / Ground Fault ..................15 Special Instructions for MNROSIE7048M Mobile Installations ..........15 Installation .......................... 18 Mounting ........................... 20 Wiring the Rosie ........................20 DC Wiring ...........................
Page 3 The bond must be made in the AC system (commonly at the AC service panel). MNROSIE7048M – a 7000-watt inverter/charger with 60-amp AC transfer relay and 120- amp, multi-stage PFC battery charger. The AC IN and OUT Neutrals are NOT common to allow automatic neutral-to-ground switching for Mobile applications (RV, truck, or marine).
Page 4 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS THIS MANUAL CONTAINS IMPORTANT SAFETY INSTRUCTIONS FOR THE MIDNITE SOLAR ROSIE INVERTER/CHARGER THAT SHALL BE FOLLOWED DURING INSTALLATION AND OPERATION. If you do not fully understand any of the concepts, terminology, or hazards outlined in these instructions, please refer installation to a qualified dealer, electrician, or installer.
Page 5 MNROSIE7048 MANUAL SAFETY PRECAUTIONS • Live power may be present at more than one point since an inverter utilizes both DC (batteries) and AC (utility or generator) power. To reduce risk of electric shock, ensure all DC and AC wiring is disconnected prior to installing or performing maintenance on the inverter.
Page 6 MNROSIE7048 MANUAL o Rosie’s Class 2 circuits: CANBUS, Batt Temp Sensor; AUX terminals; WBJr terminal. • Use insulated tools to reduce the chance of electrical shock or accidental short circuits. • Turn off all breakers prior to removing front cover and working on the inside of Rosie. •...
Page 7 MNROSIE7048 MANUAL water and soap nearby and thoroughly wash in case battery acid contacts skin, clothing, or eyes. In the event of exposure to the eyes, flood them for at least 15 minutes with running water and seek immediate medical attention. Baking soda neutralizes lead acid battery electrolyte and vinegar neutralizes spilled NiCad and NiFe battery electrolyte;...
Page 8 Add distilled water as needed. Do NOT fill to the bottom of the funnel neck before you equalize. The electrolyte will probably spill out. o Use the MidNite Solar’s MNHYDROMETER to measure the specific gravity. Check with your battery manufacturer for the specific gravity values.
Page 9 MNROSIE7048 MANUAL • Not using ALL EQUAL LENGTH interconnect cables on each string. It is important that ALL strings be wired EXACTLY the same. Any variance in resistance on one string versus another will cause an imbalance and the batteries will suffer a shortened lifespan. •...
Page 10 MNROSIE7048 MANUAL INVERTER APPLICATIONS Permanent Installations • An inverter can be used for backup power in a permanent location that normally uses utility power, such as a home or office. When utility power is available, the inverter keeps the batteries charged. When the utility power fails, the inverter automatically supplies AC power to your home or office during the power failure.
Page 11 MNROSIE7048 MANUAL • Use only copper wires with a minimum temperature rating of 90°C. • The equipment ground is marked with this symbol: CAUTION! The Rosie is designed for indoor installation or installation inside a weatherproof enclosure. It must not be exposed to rain and should be installed out of direct sunlight. WARNING! Wait 5 minutes after deenergizing (breakers opened, fuses removed) all sources of DC power (batteries) and AC power (utility or AC generator) to the Rosie inverter before...
Page 12 MNROSIE7048 MANUAL • A readily accessible battery disconnect is required and must be located within sight of the battery system (NEC 480.7). o If the batteries are external to the location of the Rosie, then the battery installation must be done in accordance with the storage battery rules of the Canadian Electrical Code, Part 1.
Page 13 The AC IN and OUT neutrals are common and may be wired to a common neutral bus. Mobile Installations (MNROSIE7048M) • The AC IN and OUT neutrals must be isolated from each other. Do not route the AC IN and OUT neutrals to a common neutral bus.
Page 14 MNROSIE7048 MANUAL AC Ground Fault Circuit Interruption (GFCI) UL standards require the use of GFCI outlets or breakers on the AC output of an inverter WARNING! RISK OF ELECTRIC SHOCK! Use only ground-fault circuit interrupters [receptacle(s) or circuit breaker(s)] compatible with your inverter/charger. AC Over-Current Protection •...
Page 15 SPECIAL INSTRUCTIONS FOR MNROSIE7048M INSTALLATIONS Marine Grounding When installing the MNROSIE7048M on a marine craft, there are several considerations that must be followed when grounding to ensure a safe installation, to prevent galvanic corrosion, and to adhere to American Boat and Yacht Council (ABYC) standards.
Page 16 MNROSIE7048 MANUAL onboard grounding requirements while greatly reducing (if not eliminating) the risk of galvanic corrosion. These solutions would be either using a galvanic isolator or an onboard isolation transformer. Galvanic isolators allow high AC voltage faults to pass but block low voltage corrosion/electrolysis currents from conducting.
Page 17 AC source is actively powering the inverter loads. This can be prevented if your inverter is equipped with automatic neutral-to-ground switching, which the Rosie offers. • The MNROSIE7048M has Rosie Inverter Rosie Standby automatic neutral-to-...
Page 18 MNROSIE7048 MANUAL • When the MNROSIE7048M is connected to this external AC source and goes into Standby mode, the internal relay automatically opens the neutral-to-ground connection. This design keeps two neutral-to-ground connections from occurring at the same time, thereby preventing an electrical shock hazard between the vehicle/marine craft’s neutral and the external AC source’s neutral.
Page 19 MNROSIE7048 MANUAL • Ensure the Rosie is accessible after it is mounted. The Rosie is programmed and data points monitored via a remotely-mounted MNGP2 (MidNite Graphics Panel). You will need to access the MNGP2 during and after installation. • The Rosie should be protected from direct sun exposure or equipment that produces extreme heat.
Page 20 MNROSIE7048 MANUAL o AC OUT to service or sub-panel o DC cables to battery bank o Battery Temp Sensor • Mount vertically on a flat, non-combustible surface with DC terminals pointing down. Mounting – Rosie (Figure 2) 1. Determine mounting location. 2.
Page 21 MNROSIE7048 MANUAL External Sensor AC Terminals Terminals DC Equipment Ground Equipment Battery Terminals Ground Figure 3 Figure 4 AUX Wiring: CANBUS, Figure 5 Batt Temp Sensor, WBJr Equipment Figure 6 Ground 21| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 22 MNROSIE7048 MANUAL AC IN Wiring (Figure 7) 1. Connect #6 AWG wire from AC Source (Grid or Generator) to the AC IN terminal block, L1 and L2. 2. Pass AC IN wires through a 60A 2P AC circuit breaker (UL1077). 3.
Page 23 MNROSIE7048 MANUAL • There are two types of grounding: Equipment Grounding and System Grounding. o Equipment Grounding – Grounding for exposed metal parts, like the inverter chassis, solar panel frames, etc. See Figure 8. Reference Figure 8 o System Grounding – The bonding of a current-carrying wire below for grounding to earth ground, such as the two SBJs shown in Figure 8 or system terminology.
Page 24 MNROSIE7048 MANUAL o If you have two ground rods - AC goes to one and DC goes to the other - then you HAVE to bond those two ground rods together with a Bonding Conductor (BC). The NEC also dictates the proper size of that BC. •...
Page 25 MNROSIE7048 MANUAL Grounding in Marine Installations (MNROSIE7048M) • DC Equipment Grounding Conductor (EGC-DC) – must be equal in ampacity to the DC positive conductor, which is #4/0 AWG. In certain circumstances, the cable size may be one gauge smaller. Refer to the ABYC Standard for more information.
Page 26 MNROSIE7048 MANUAL shorted, the Rosie will default to a neutral temperature of 25C and will not temp-comp the charging voltages. In addition to temp-adjusting the charging voltages as mentioned above, the Rosie can be programmed to stop charging based on either a high or low battery temp setpoint. Connecting the BTS: 1.
Page 27 MNROSIE7048 MANUAL The shunt is wired in series on the electric low side, or negative side, of your system. The wire marked “Cable to Inverter Negative” (Figure 13) shows the shunt connection point for ALL negative wires from the Rosie, additional charge controllers, wind turbine negative, DC refrigerator, etc.
Page 28 MNROSIE7048 MANUAL ▪ No – Check DC wiring to the battery. Check batteries. o Correct polarity shown on the voltmeter? ▪ Yes – Good ▪ No – Reverse the DC wiring. • Turn on (close) the Rosie’s battery breaker. • Voltmeter –...
Page 29 MNROSIE7048 MANUAL o 240VAC present? ▪ Yes – Good ▪ No – Check Rosie programming. Step #4 – AC Electrical Panel • Close AC OUT breaker. • Voltmeter – Measure for 120VAC between AC L1 and AC Neutral terminals at the AC electrical panel.
Page 30 MNROSIE7048 MANUAL VOICE • Levels of Chattiness: o Off - No voice. o Rick Mode – Not used with the Rosie. o Errors- Any errors such as "Over voltage," “Battery High Temp,” etc. o Warnings - All errors and warnings. o Verbose - Menu help messages the first time the menus are accessed.
Page 31 MNROSIE7048 MANUAL • Battery Capacity - Enter the bank’s 20-hr, Ah rating. If the bank consists of parallel strings, multiple the 20-hr rating of one battery by the number of parallel strings. • Amp Hour Efficiency – Set to Auto and will consider the Batt Chemistry type selected. Or manually program a specific %.
Page 32 MNROSIE7048 MANUAL • LBCO DISC Time – Minutes to count-down once LBCO DISC is reached before the Rosie stops inverting. SETUP / INVERTER CONFIG • AC Input 1 o AC Mode – Grid or Genny. o Charger – Enabled / Disabled. Allows charging from the AC IN source. o Charge Rate –...
Page 33 MNROSIE7048 MANUAL Set Name – Assign custom name to Rosie Temperatures – Shows FET temperatures, control board temp, battery temp, and temperature compensated target. Faults & Warnings Battery Voltage Offset – To tweak displayed battery voltage. Reset to Default • Grid Support – Rosie uses grid AC for loads based on SOC % or Battery Voltage.
Page 34 MNROSIE7048 MANUAL o Exercise INT – Exercise means to run the genny on a schedule, to cycle it occasionally for testing, to cycle the engine oil, etc. The interval will be the days between the exercise cycles. o Exercise Start – Commence the Exercise program.
Page 35 MNROSIE7048 MANUAL USER / TECH MENU • Knob Sensitivity – Adjusts sensitivity of MNGP2 rotary knob. • Firmware – Shows latest firmware version. • Firmware Statistics • Last Fault – Shows last fault to impact Rosie or other MNGP2 connected devices. •...
Page 36 MNROSIE7048 MANUAL 36| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 37 MNROSIE7048 MANUAL 37| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 38 MNROSIE7048 MANUAL 38| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 39 MNROSIE7048 MANUAL 39| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 40 MNROSIE7048 MANUAL 40| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 41 MNROSIE7048 MANUAL 41| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 42 MNROSIE7048 MANUAL 42| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 43 MNROSIE7048 MANUAL BATTERY CHARGING Bulk This charging stage is called the Constant Current Mode, and it means the Rosie will send to the batteries as much current as is programmed (Max AC Charge Amps) until the battery voltage rises to the Absorb Voltage setpoint. Absorb The Rosie will maintain the Absorb voltage setpoint until the batteries are charged.
Page 44 MNROSIE7048 MANUAL Float The Float cycle follows the Absorb cycle. Think of Float as a trickle charger to keep the batteries full and topped off all day. The Rosie will hold the batteries at the Float voltage setpoint for the amount of programmed Float Time. Rebulk Forces the Rosie back into Bulk mode if the battery voltage is less than the REBULK setting for 60 seconds.
Page 45 MNROSIE7048 MANUAL 2. Reference temperature for the battery (Default is 25C). 3. The maximum voltage to ever compensate to. No temp comp or improperly programmed temp-comp may be harmful to your battery bank. In the winter, temp-comp will raise the charging voltage. This elevated voltage may cause an inverter to alarm on a high battery voltage condition.
Page 46 MNROSIE7048 MANUAL better with low-cost generators. The disadvantage is that Rosie can't catch the loads instantly if the grid disconnects. Silent acts like a "Smart Transfer" that only passes valid AC. • Standby means that the AC output bridge of the inverter is on and the inverter is in parallel with the grid.
Page 47 MNROSIE7048 MANUAL How to read the AUX Mode table below … MODE ON / OFF When ON (OFF)? When OFF (ON)? SOC % High SOC % SOC % (Timer till ON) (Timer till OFF) 1. Function is “SOC % High” 2.
Page 48 MNROSIE7048 MANUAL FIRMWARE UPDATE 1. Download the MNBLE Updater app (from Midnite Solar) on the Google Play Store or Apple Store (current version is 1.0.4) and install it onto your cell phone. 2. Enable Bluetooth on your phone and open the MNBLE Updater app.
Page 49 MNROSIE7048 MANUAL Figure 15 Figure 17 Figure 16 Figure 20 Figure 18 Figure 19 49| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 50 MNROSIE7048 MANUAL Figure 22 Figure 21 Figure 23 50| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 51 MNROSIE7048 MANUAL ROSIE PRE-WIRED SYSTEM Classic Charge Rosie Controller AC SPDs & Lithium Batt BMS SPD PV SPD Rosie E-Panel The Rosie Inverter/Charger may be combined with the optional Rosie E-panel, Classic charge controller, and (Lightning) surge protection as an intergrated PV/AC system. The Rosie E-Panel offers AC OCP, AC bypass (grid/generator-direct-to-loads), DC OCP, and additional DIN rail mounts for auxillary AC or DC OCP.
Page 52 MNROSIE7048 MANUAL 52| P a g e 1 0 - 4 3 2 - 1 R E V : C...
Page 53 MNROSIE7048 MANUAL UL1741 TABLE 65.1 Unit Ratings (Per UL1741, Table 65.1) Rating Type Standalone (SA) Max input voltage (DC) Range of input operating voltage (DC) 40 to 65VDC Max input current (AC or DC) 210ADC Max input short circuit current 210ADC Output power factor rating 7000W w/PF=0.95...
Page 54 Those components are warranted by the original manufacturer. At its option, MidNite Solar will repair or replace at no charge any MidNite product that proves to be defective within such warranty period. This warranty shall not apply if the MidNite Solar product has been damaged by unreasonable use, accident, negligence, service, or modification by anyone other than MidNite Solar, or by any other causes unrelated to materials and workmanship.
Page 55 MidNite Solar's Rosie Inverter/Charger MNROSIE7048RE – MNROSIE7048M User’s Manual. Copyright ⓒ 2024 All rights reserved. MidNite Solar, Inc. reserves the right to revise this document and to periodically make changes to the content hereof without obligation or organization of such revisions or changes unless required to do so by prior arrangement.
Page 56 MNROSIE7048 MANUAL 56| P a g e 1 0 - 4 3 2 - 1 R E V : C...
