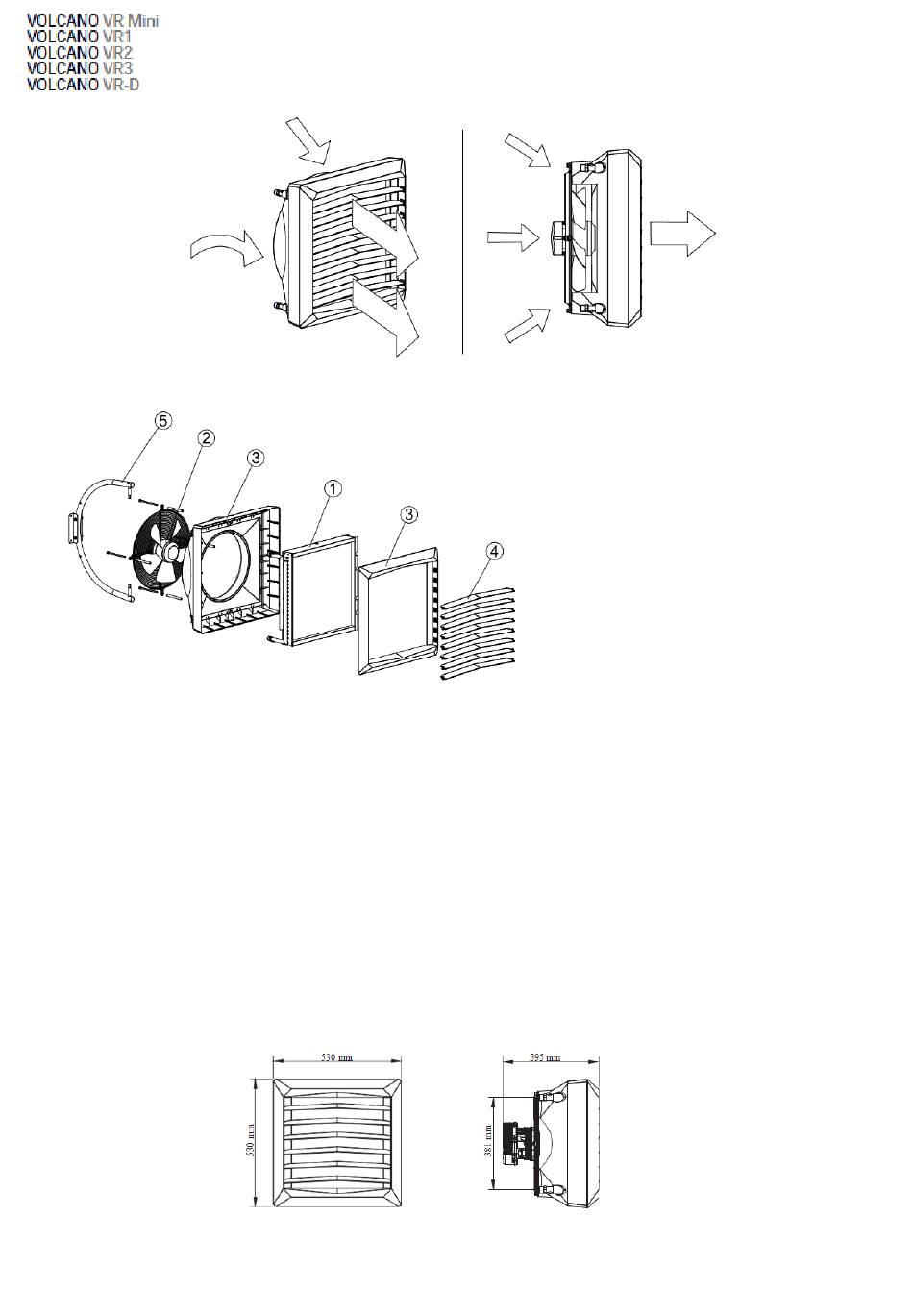

2.3 DEVICE STRUCTURE (VOLCANO)
1.
HEAT EXCHANGER: maximum parameters of a heating medium for a heat exchanger are: 266°F, 232PSI. Aluminium and copper construction
using copper tubes, coil pipe and aluminium lamellas. Connecting ferrules (male thread ¾") are on the back panel of the unit. Our series of types
includes a single-row heat exchanger in VOLCANO VR1 17-102 MBH and two-row heat exchanger in VOLCANO VR Mini 10-68 MBH and VOLCANO
VR2 27-170 MBH and in VOLCANO VR3 44-256 MBH - three-row heat exchanger.
2. AXIAL FLOW FAN: maximum working temperature is 140°F, nominal power supply voltage is 120/60Hz or 240V/50Hz. EC Engine protection is
IP44, insulation class F. Air feed is performed by the axial flow fan, which is secured with a protective grate. Adequate blade profile and proper
bearings guarantee silent and unfailing operation of the device. High engine power allows for achieving high efficiency at low power
consumption rates, maintaining full air feed regulation. Properly profiled housing lowers the noise emission levels, which makes the device
particularly user-friendly, suitable for buildings with higher acoustic requirements.
3.
HOUSING: consists of the body and the front panel, made of high quality plastic guaranteeing compatibility with devices powered by heating
medium with temperature parameter up to 266°F. Colorful side panels allow for matching the device color to the interior décor. Volcano VR-D
operates circulation air, improving its distribution and performing the de-stratification function.
4.
AIR GUIDES: allow the hot air stream to be directed in 4 directions. Optimum air stream range and direction are achieved through the special
fan blade profile.
5.
ASSEMBLY CONSOLE: an element of additional equipment - its ergonomic, light structure allows for rotating the device on the horizontal plane
for -140°÷0÷140°, to direct the stream of hot air wherever it is necessary.
2.4 OVERALL DIMENSIONS
VOLCANO VR Mini
4
HEAT EXCHANGER;
1.
AXIAL FAN;
2.
COVER;
3.
AIR GUIDES;
4.
SAMPLE CONSOLE
5.
