Page 3: Information About The Documentation
Information about the documentation About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •... - Page 4 The type designation and serial number are printed on the rating plate. ▶ Write down the serial number in the table below. You will be required to state the product details when contacting Hilti Service or your local Hilti organization to inquire about the product. Product information...
- Page 5 ▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. ▶...
- Page 6 ▶ Wear protective gloves also when changing the accessory tool. Touching the accessory tool presents a risk of injury (cuts or burns). ▶ Wear eye protection. Flying fragments present a risk of injury to the body and eyes. ▶ Before starting work, check the hazard class of the dust that will be produced when working. Use an industrial vacuum cleaner with an officially approved protection class in compliance with the locally applicable dust protection regulations.

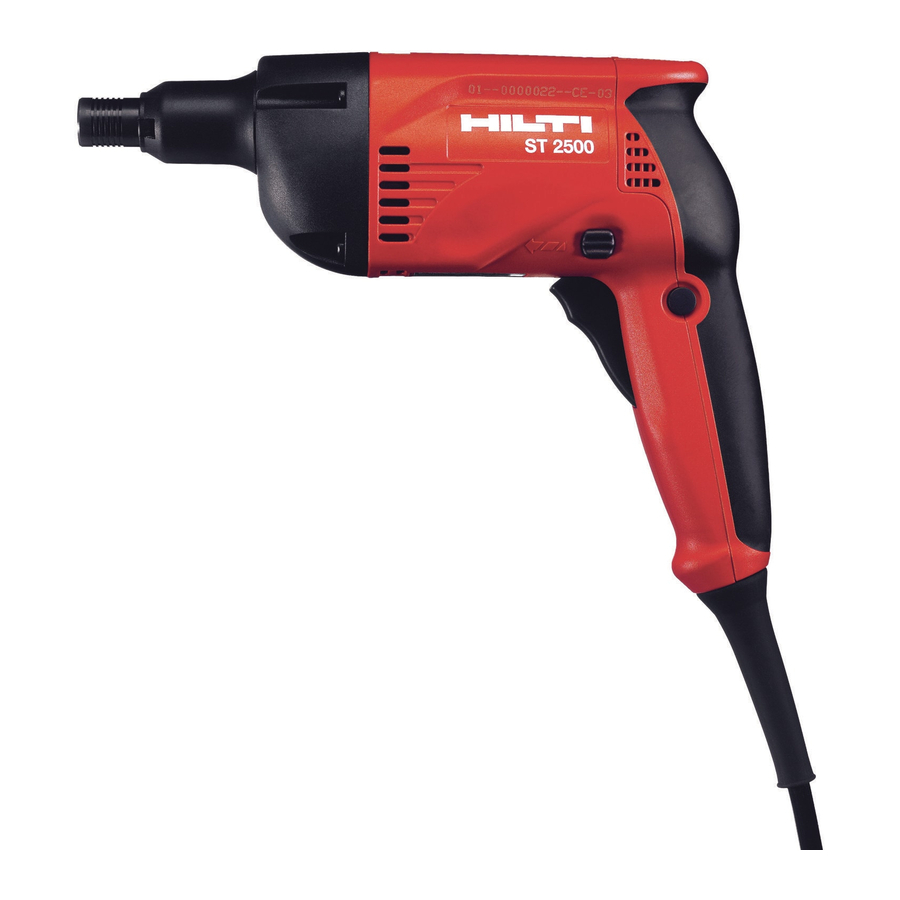

- Page 7 Depth gauge adjustment Control switch lock Intended use The ST 2500 is a hand-held electric screwdriver for fastening profile metal sheets, metal sheets and sandwich panels in metal construction. English Printed: 24.07.2018 | Doc-Nr: PUB / 5139777 / 000 / 02...
-
Page 8: Technical Data
Main applications Application Screw type Diameter Product in mm Fastening insulation material to trapezoidal steel Insulating screws with •/• ST 2500 sheet drill point Type S-ID, with type S-IS point Fastening wood to metal Self-drilling wing screws •/• ST 2500... -
Page 9: Preparations At The Workplace
Noise information ST 2500 Sound power level (L 84 dB Sound pressure level (L 95 dB Uncertainty 3 dB Vibration information ST 2500 Triaxial vibration values 2.5 m/s² Uncertainty (K) 1.5 m/s² Preparations at the workplace CAUTION Risk of injury! Inadvertent starting of the product. - Page 10 Removing the depth gauge CAUTION Risk of injury The depth gauge may hinder the operator if fitted but not used. ▶ Remove the depth gauge from the tool. ▶ Pull the depth gauge forward, away from the power tool. Setting the torque ▶...
-
Page 11: Types Of Work
Setting forward or reverse rotation Set the forward/reverse switch to the desired direction of rotation. To the right for "forward" (clockwise rotation). To the left for "reverse" (counter-clockwise rotation). ▶ Set the forward/reverse switch to the desired direction of rotation. Types of work ATTENTION Risk of damage by incorrect handling! -
Page 12: Transport And Storage
Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information. - Page 13 Printed: 24.07.2018 | Doc-Nr: PUB / 5139777 / 000 / 02...
