801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 •
www.sdcsecurity.com • E-mail: service@sdcsecurity.com

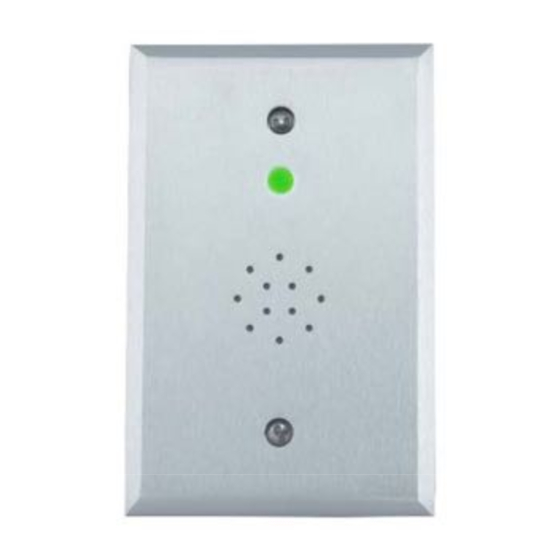

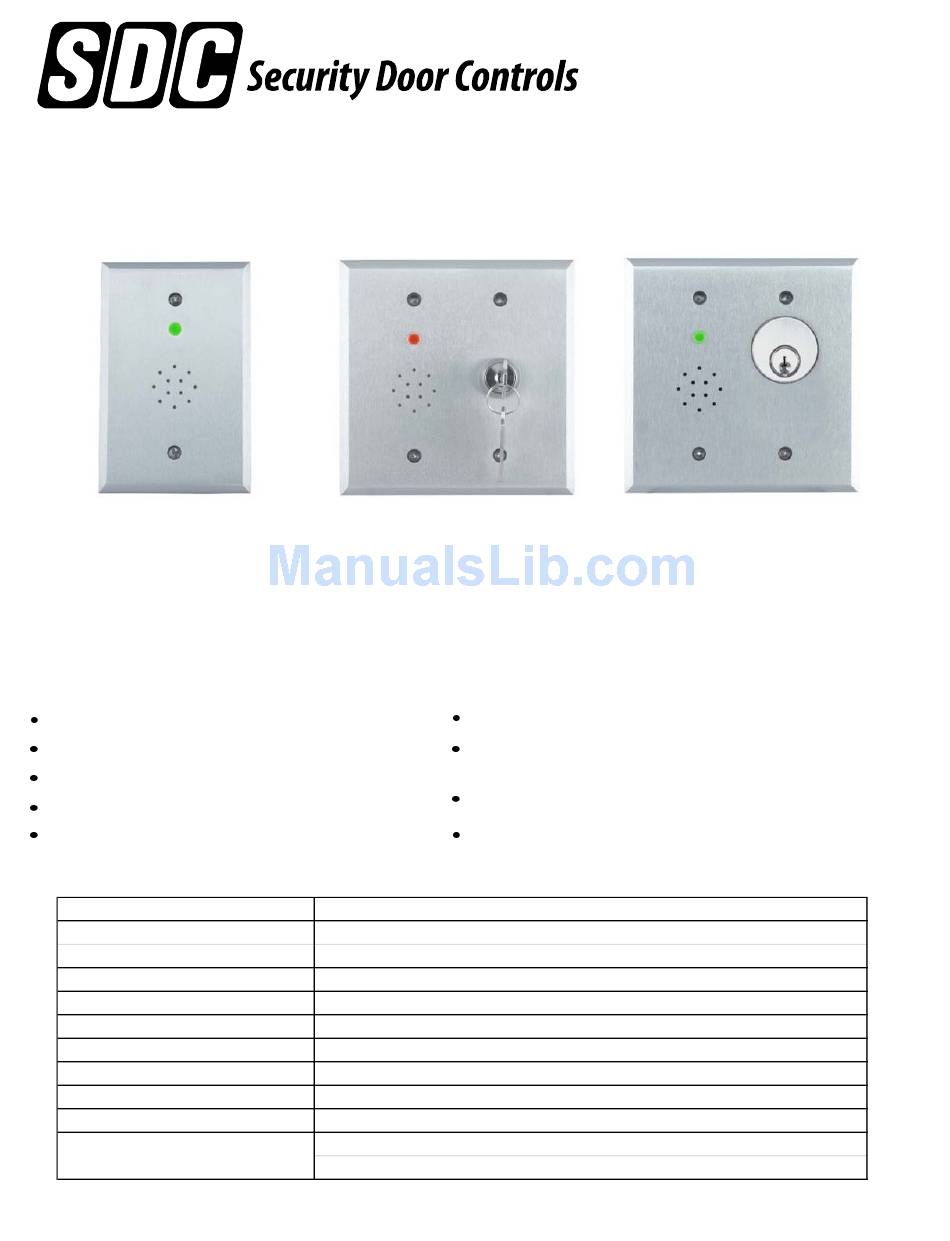

Model EA-SN
The SDC EA Series offers Exit Alarm, Forced Door Alarm, and Door Propped/Held Open Alarm monitoring
capabilities to any controlled opening. It may be used as a standalone device or easily integrates with any
access control system. Units are typically mounted adjacent to the opening, and provide local visual and
audible alarm annunciation. An integral key switch is available for local bypass & alarm reset controls. A
built-in alarm relay is also included for remote monitoring.
FEATURES
Exit alarm on door opening
Door prop alarm after adjustable timed delay
Manual or automatic alarm reset
Local 85dB Piezo buzzer alarm
Integral LED status indicator
EA SERIES TECHNICAL SPECIFICATIONS
(2-1/8" depth recommended) EA-708, -728: Double Gang, 1/4" Thick aluminum plate w/ security screws
Alarm Sound Level:
Status Indicator:
Trigger (DPS) Input:
Reset/Bypass (Control) Input:
Alarm (Main) Output:
Auxiliary Output:
Overall Dimensions:
P:\INSTALLATION INST\Accessories\INST-DOOR PROP.vsd
INSTALLATION INSTRUCTIONS
EA SERIES – DOOR PROP/EXIT ALARM
Model EA-728
Input Power:
Mounting:
EA-SN: Single Gang, 1/4" Thick aluminum plate w/ security screws
Wiring:
Rev A
07-17
Main relay output for remote alarm notification
Auxiliary relay output for door position status or
bypass/alarm status
Optional key reset/bypass switch
Compact universal mounting
60mA @ 12 or 24VDC (Auto-sensing)
85dB @ 3ft, Piezo Buzzer
Bi-color LED
Dry, N/C or N/O, field selectable
Dry, N/O or N/C, field selectable
Form C, 2A @ 30VDC (Resistive)
Form C, 2A @ 30VDC (Resistive)
Screw terminals
EA-SN: 5"h x 3.25"w x 1.625" d
EA-708, -728: 5"h x 5"w x 1.875"d
Page 1
Model EA-708
(cylinder not included)
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SDC EA-728
Summary of Contents for SDC EA-728
-
Page 1: Installation Instructions
Model EA-728 (cylinder not included) The SDC EA Series offers Exit Alarm, Forced Door Alarm, and Door Propped/Held Open Alarm monitoring capabilities to any controlled opening. It may be used as a standalone device or easily integrates with any access control system. Units are typically mounted adjacent to the opening, and provide local visual and audible alarm annunciation. - Page 2 (default) or normally closed. In a secure state, a held input will bypass the unit. In an alarm state, a momentary input will reset the alarm providing the door is closed. This input is factory pre-wired for key switch model EA-728. Door Contact Input – Required for all models. Monitors the open/closed status of the door. Field- selectable as normally open or normally closed (default).
-
Page 3: Led Status Indicator
Main Relay will trigger. Alarm resets on door closure. Bypass the alarm by activating the integral key switch or via remote bypass switch. Power Supply: 12 or 24VDC SDC Model TR-12, TR-24, or 600 Series P.S. EA-SN: Optional Remote Bypass; Pre-wired for model EA-728... - Page 4 Main Relay will trigger & latch. Alarm must be reset by using the integral key switch (EA-708 or EA-728 only), or by remote control switch. Bypass the alarm by activating the integral key switch or via remote switch.
-
Page 5: Switch Wiring
SDC Part# CYL-KD CENTER HOLE Or supply compatible 1” to AS SHIPPED 1-3/8” standard or interchangeable core mortise key cylinders (not included) Use tailpiece supplied with SDC Part# CYL-KD, or Ilco Adjustable 863G-00-10 Standard Cam Switch equivalent. CENTER HOLE Assembly PUNCHED Faceplate Ensure that the cam makes 4.
