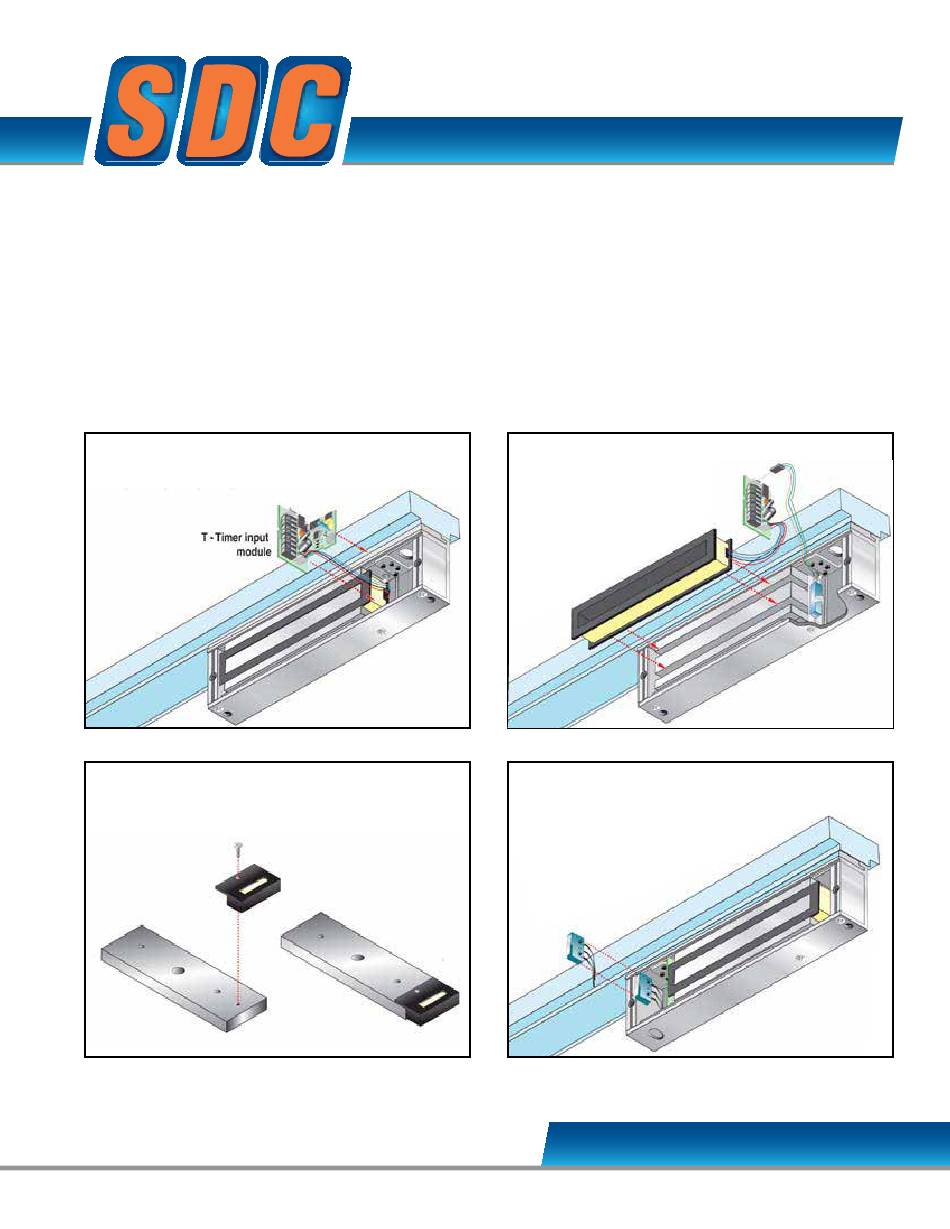

Field Upgradeable Option Modules for 1511, 1513, 1571, 1573
SDC's patented EMLock design represents the pinnacle of magnetic lock evolution.
The modular EMLock assembly makes them easy to stock, install, upgrade and maintain.
Field Upgradeable by Distributors, Installers and Maintenance Staff
No need to ever remove a lock from the frame to upgrade or exchange
internal components.
Modular Kit
EZ-D-10: DOOR POSITION SENSOR
Modular Kit
EZ Option Upgrade Kits -
Emlock© 1511, 1513, 1571, 1573
FIELD UPGRADE
• Relock Delay Timer
• Magnetic Bond Sensor
• Door Status Sensors
• Anti-Tamper Switch
• Holding Force Upgrade
• Energy Saver Upgrade
EZ-B-10 MAGNETIC
BOND SENSOR
Modular Kit
EZ-A: ANTI-TAMPER SWITCH
Modular Kit
SECURITY DOOR CONTROLS
sdcsecurity.com service@sdcsecurity.com
Advertisement
Table of Contents
Related Manuals for SDC Emlock 1511
Summary of Contents for SDC Emlock 1511
- Page 1 Emlock© 1511, 1513, 1571, 1573 EMLock EZ Kits Field Upgradeable Option Modules for 1511, 1513, 1571, 1573 SDC’s patented EMLock design represents the pinnacle of magnetic lock evolution. FIELD UPGRADE The modular EMLock assembly makes them easy to stock, install, upgrade and maintain.
- Page 2 sdcsecurity.com service@sdcsecurity.com EZ-T-10 TIMER INPUT MODULE Modular Kit Relock Delay Timer, Adjustable 1 to 30 Seconds. Application: The Timer Input Module delays relocking of access controlled doors to provide persons ample time needed for entry or egress. Momentary interruption of power to the lock input activates the timer module. Momentary, N.C.
- Page 3 * Not available for 1513, 1573 While a Door Status Sensor indicates the door is open Application: Lock secure status annunciation, or closed, SDC’s Magnetic Bond Sensor provides higher mantrap system logic, security monitoring by indicating the locked / unlocked CCTV camera activation.
- Page 4 sdcsecurity.com service@sdcsecurity.com EZ-D-10: DOOR POSITION SENSOR Modular Kit Indicates the door is open and closed. * Not available for 1513, 1573 Application: Door position status annunciation, anti-tailgating, interlock, mantrap and communicating bathroom system logic. Output: SPDT Dry Contact, 250 mA @ 12/24VDC EZ-A: ANTI-TAMPER SWITCH - Modular Kit...
- Page 5 EZ Option Upgrade Kits - Emlock© 1511, 1513, 1571, 1573 EZ – 1510W Holding Force Upgrade EZ – 1570W Energy Saver Upgrade All 1511, 1512, 1513, 1571, 1572 and 1573 magnetic coils are field interchangeable without removing the lock from the frame. There is no reason to remove and ship a lock for exchange.
- Page 6 sdcsecurity.com service@sdcsecurity.com www.sdcsecurity.com service@sdcsecurity.com SECURITY DOOR CONTROLS SECURITY DOOR CONTROLS [t] 800.413.8783 805.494.0622 [f] 805.494.8861 801 Avenida Acaso, Camarillo CA 93012 • PO Box 3670, Camarillo CA 93011-3670 © 2007 Security Door Controls Printed in the U.S.A. LIT-Datasheet date qty vendor...
- Page 7 Re-install armature per installation instructions Field Upgradeable Option Modules for 1512 and 1572 SDC’s patented EMLock design represents the pinnacle of magnetic lock evolution. FIELD UPGRADE The modular EMLock assembly makes them easy to stock, install, upgrade and maintain.
- Page 8 Remove cover plate screws sdcsecurity.com service@sdcsecurity.com 1 only required EZ-T-10 TIMER INPUT MODULE Modular Kit Remove cover plate Remove cover plate screws Remove cover plate Remove cover plate screws Relock Delay Timer, Adjustable 1 to 30 Seconds. 1 only required for double EMLock®. Application: The Timer Input Module delays relocking of access controlled doors to provide persons ample time needed for entry or egress.
- Page 9 While a Door Status Sensor indicates the door is open Application: Lock secure status annunciation, or closed, SDC’s Magnetic Bond Sensor provides higher mantrap system logic, security monitoring by indicating the locked / unlocked CCTV camera activation. mode, tampering and low voltage. The use of...
- Page 10 sdcsecurity.com service@sdcsecurity.com Attach door status module to each armature Attach door status module to each armature Re-install armature per installation instructions Re-install armature per install EZ-D-10-2: DOOR POSITION SENSOR Input module wiring. odule to each armature Attach door status module to each armature Re-install armature per installation instructions Re-install armature per installation instructions B Option...
- Page 11 Remove cover plate screws. EZ Option Upgrade Kits - Emlock© 1512 / 1572 Specify 2 for 1512, 1572 EZ – 1510W-2 Holding Force Upgrade EZ – 1570W-2 Energy Saver Upgrade All 1511, 1512, 1513, 1571, 1572 and 1573 magnetic coils are field interchangeable without removing the lock from the frame. There is no reason Remove cover plate screws.
- Page 12 sdcsecurity.com service@sdcsecurity.com www.sdcsecurity.com service@sdcsecurity.com SECURITY DOOR CONTROLS SECURITY DOOR CONTROLS [t] 800.413.8783 805.494.0622 [f] 805.494.8861 801 Avenida Acaso, Camarillo CA 93012 • PO Box 3670, Camarillo CA 93011-3670 © 2010 Security Door Controls Printed in the U.S.A. LIT-EZ Option Kit Upgrades 12.10...
- Page 13 EZ Option Upgrade Kits - Emlock© 1581 EMLock EZ Kits Field Upgradeable Option Modules SDC’s patented EMLock design represents the pinnacle of magnetic lock evolution. FIELD UPGRADE The modular EMLock assembly makes them easy to stock, install, upgrade and maintain.
- Page 14 Modular Kit While a Door Status Sensor indicates the door is open Application: Lock secure status annunciation, or closed, SDC’s Magnetic Bond Sensor provides higher mantrap system logic, security monitoring by indicating the locked / unlocked CCTV camera activation. mode, tampering and low holding force. The use of...
- Page 15 EZ Option Upgrade Kits - Emlock© 1582 EMLock EZ Kits Field Upgradeable Option Modules SDC’s patented EMLock design represents the pinnacle of magnetic lock evolution. FIELD UPGRADE The modular EMLock assembly makes them easy to stock, install, upgrade and maintain.
- Page 16 EZ-B-80 MAGNETIC BOND SENSOR Modular Kit While a Door Status Sensor indicates the door is open Application: Lock secure status annunciation, or closed, SDC’s Magnetic Bond Sensor provides higher mantrap system logic, Remove cover plate screws. Remove cover plate screws. Remove cover plate.
