801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 •
www.sdcsecurity.com • E-mail: service@sdcsecurity.com
P:\INSTALLATION INST\Accessories\INST-WPT.vsd

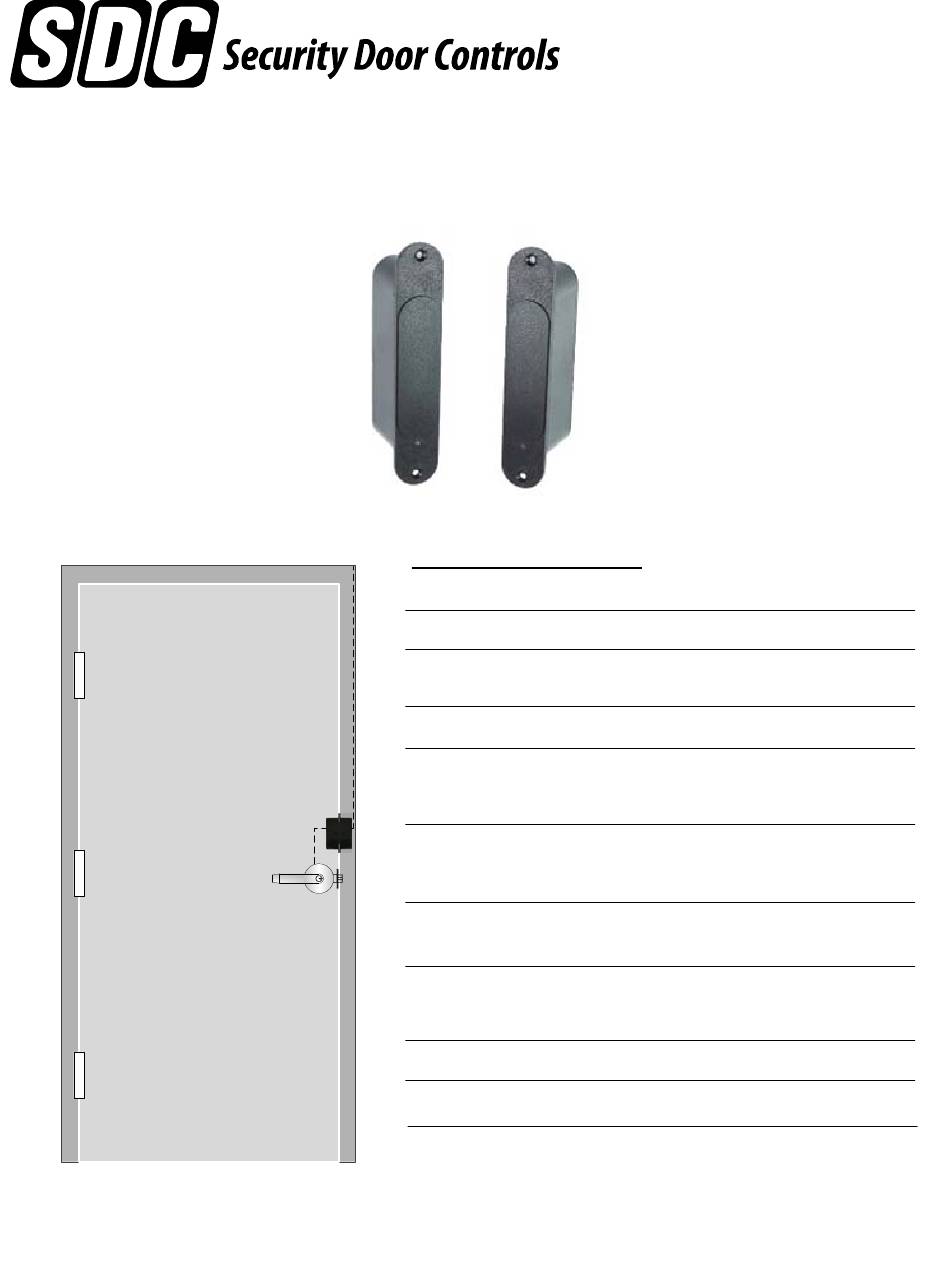

INSTALLATION INSTRUCTIONS
WPT Wireless Power Transfer
Technical Specifications:
Note – For Use with Fail-Secure (Power to Unlock) Locks Only
Input Power (Frame Side):
Output Power (Door Side):
Maximum Door Gap:
Maximum Tolerance
with 3/16" (5mm) Gap:
Dry Inputs (Frame Side):
Dry Inputs (Door Side)
Dry Outputs (Frame Side):
LED Indicators:
Operating Temperature:
Compliance:
REV -
01/19
Page 1
600mA @ 24VDC
600mA/300mA @ 12/24VDC
{Field Selectable}
1/4" (~7mm)
Horizontal < 5/64" (2mm)
Vertical < 5/64" (2mm)
(2) Door Unlock Trigger (Timed)
1. 4 Second Fixed
2. 1-90 Seconds Manual
(2) Relay Activation
for REX, Latch Status, etc.
(2) SPDT Relay, 1A @ 30VDC
(2) Solid State Relay, N/O
100mA @ 60VDC
Frame & Door Side
-4°F – 140°F(-20°C – 60°C)
UL1034; UL10C for 3 Hours,
FCC Part 15
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
Advertisement
Related Manuals for SDC WPT
Summary of Contents for SDC WPT
- Page 1 801 Avenida Acaso, Camarillo, Ca. 93012 • (805) 494-0622 • www.sdcsecurity.com • E-mail: service@sdcsecurity.com INSTALLATION INSTRUCTIONS WPT Wireless Power Transfer Technical Specifications: Note – For Use with Fail-Secure (Power to Unlock) Locks Only Input Power (Frame Side): 600mA @ 24VDC...
- Page 2 WPT Dimensions FRAME SIDE 1" (25mm) Frame Status LED Alternates Green/ Side Amber when powered Solid Red during 1/8" View power transfer (3mm) Front Rear View View DOOR SIDE 1" (25mm) Door Status LED Flashing Red when Side door is closed &...
- Page 3 Although the WPT allows for some horizontal and vertical misalignment, these tolerances will decrease as the door gap increases. 1. Inspect the door & frame, and apply the templates at the desired location. The WPT may be installed on the latch side, hinge side, or top of the door.
- Page 4 2c. Verify that the WPT face fits in the cutout, 2d. Install mounting tabs using M3 screws and file as necessary. 3. For wood door installations, use the recommended wood door jig, or follow the steps below: 3b. Drill out the main WPT pocket to a 3a.
- Page 5 DOWN 5. Repeat steps 2 or 3 for the installation of the frame side unit in a metal or wood frame. P:\INSTALLATION INST\Accessories\INST-WPT.vsd REV - 01/19 Page 5...
- Page 6 6. Terminate wiring to both of the WPT units. 6a. Wiring Overview. Items marked as “Required” are the minimum connections required to control an electrified lockset. Select Momentary Activation, or Maintained, or both. Use the wiring diagrams on Page 7 as a reference.
- Page 7 {SDC Z7200 Cylindrical or Z7800 Mortise} 7. Mount both WPT units using the appropriate screws. Apply continuous power to the frame side. If using a momentary switch to activate the lock, hold for a second or two, then release. Power will be provided to the lock for approximately 4 seconds.
