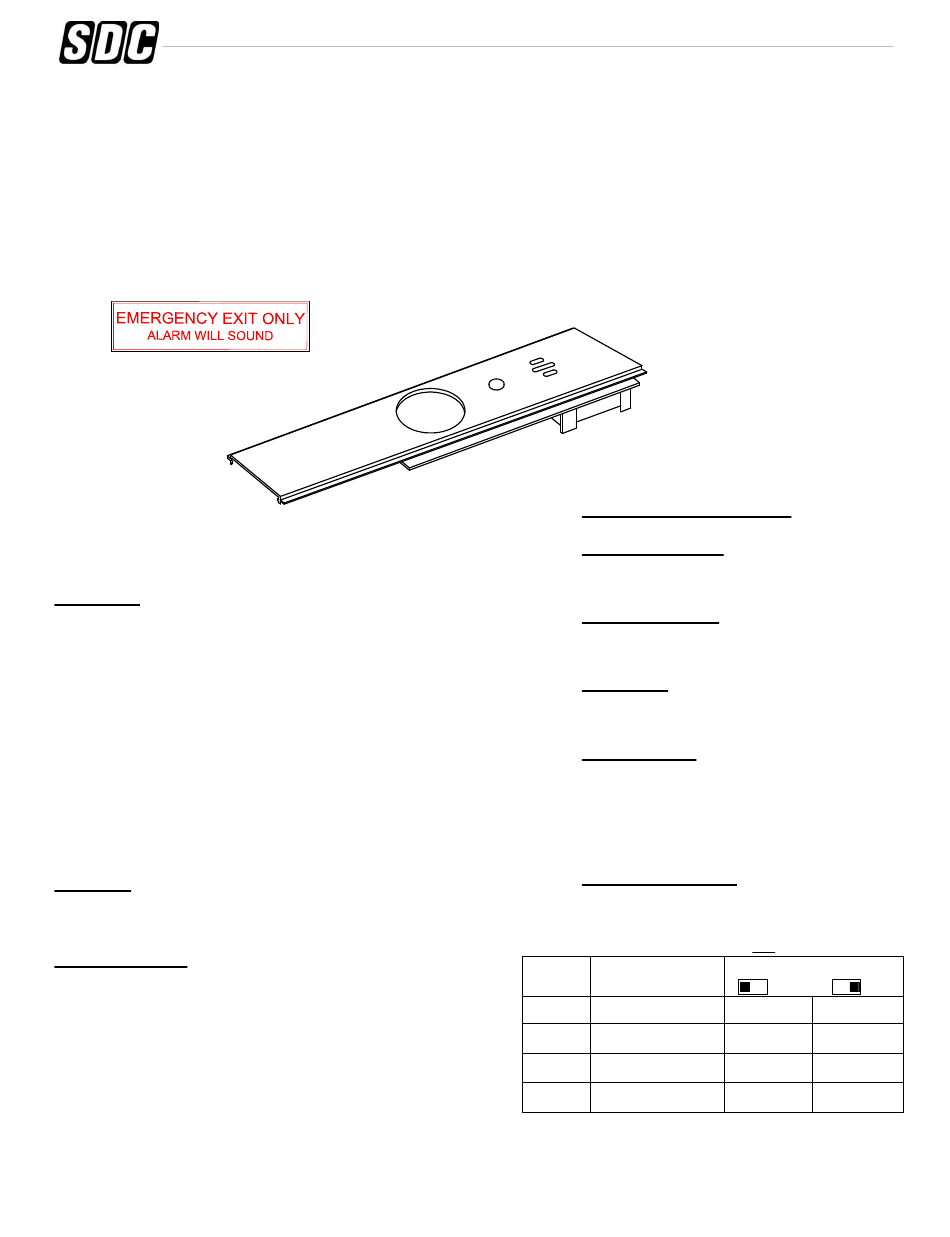

SDC S6000AK Installation Instructions

SECURITY DOOR CONTROLS ■ WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622 ■ E-mail: service@sdcsecurity.com ■ 801 Avenida Acaso, Camarillo, CA 93012 ■ PO Box 3670, Camarillo, CA 93011
FEATURES
Monitor LED: -(field selectable Active or Off)
Bypass: -No LED
Armed: -Blinks every 15 seconds (GREEN when
armed, RED when in alarm mode)
Low battery Alert: -Siren will beep every 45 seconds
Arming Delay: -15 or 60 second arming delay
Field selectable alarm modes include:
* Continuous alarm with manual key reset
* Alarm automatically rearms 2 or 6 minutes after
door closes and may be retriggered.
* May be manually rearmed by key before
automatically rearmed.
OPTIONS:
B: -Hard wire cable with monitoring.
SPECIFICATIONS
Input Voltage: 12/24vdc @ 20mA. ("B" Option)
Alarm output: 1 amp SPDT form "C" relay contact
Remote Inhibit: N/O dry contact
Siren Level db: @90db
P:\INST INSTRUCTIONS\EXIT DEVICES\INST-S6000AK/BK

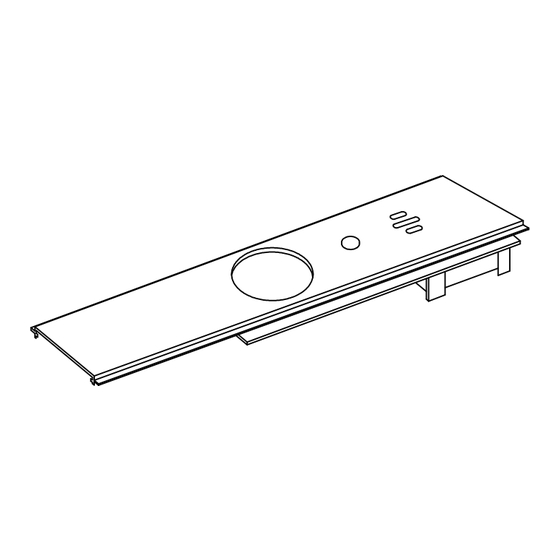

INSTALLATION INSTRUCTIONS
S6000AK & BK
ALARM BOARD
Rev F 11-20 Page 1
MONITOR LED OPERATION
FLASHING GREEN – Arming Delay Mode
The device will arm after the delay on arm
time expires.
BLINKING GREEN – Armed Mode
The unit is armed. Pressing on the push pad
will sound the alarm.
RED SOLID – Alarm Mode
The alarm has been activated. The alarm
will sound.
BLINKING RED – Re-Armed Mode.
The has been triggered at least once and
has automatically reset and has returned to
the armed mode. Pressing on the push pad
bar will sound the alarm Manually resetting
the device will clear this mode.
FLASHING ORANGE Low Battery.
You will also hear an intermittent beep.
FACTORY DEFAULT IS SET TO ALL ON POSITION
SWITCH
FUNCTION
NUMBER
1
ALARM TIMER
2 RESET MODE
DELAY ON ARM
3
TIME
MONITOR LED
4
Any suggestions or comments to this instruction or
product are welcome. Please contact us through
our website or email engineer@sdcsecurity.com
SWITCH POSITION
ON OFF
2 MIN
6 MIN
MANUAL AUTO
15 SEC 60 SEC
NOT ACTIVE ACTIVE
