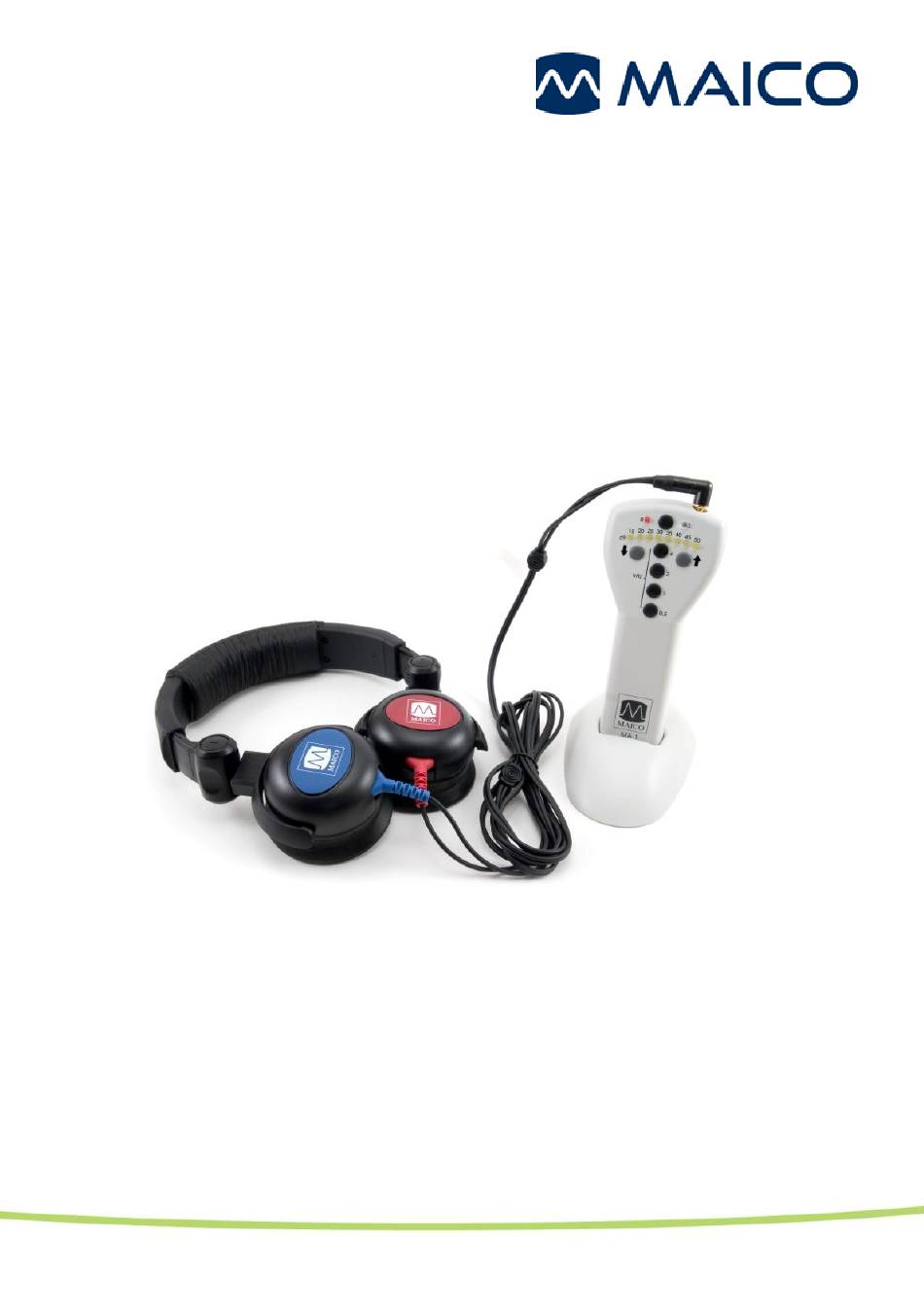

Page 1: Operating Manual
MA 1 Operating Manual MAICO Diagnostics | 10393 West 70 Street | Eden Prairie, MN 55344, USA | Toll Free 888.941.4201... -
Page 3: Table Of Contents
2. Intended Use ................3 3. Description ................3 3.1. Important Safety Note ..............4 3.2. Unpacking and Checking the MA 1 ..........5 3.3. Standard Accessories ..............5 4. MA 1 Connections ..............6 5. Battery Operation ..............6 6. - Page 5 E-mail: info@maico-diagnostics.com Internet: www.maico-diagnostics.com Copyright © 2015 MAICO Diagnostics. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without the prior written permission of MAICO. The information in this publication is proprietary to MAICO.
-
Page 6: Introduction
MA 1 is designed and manufactured to meet all quality and safety requirements. Particular attention has been taken during the designing phase of MA 1 to ensure its user-friendliness, meaning that its operation is simple, easy to learn and to understand. -
Page 7: Intended Use
The instrument is intended for professional use in clinics, hospitals or schools. 3. Description The MA 1 screening audiometer is designed to be a device for screening for hearing loss. Output and specificity of this type of device are based on the test characteristics defined by the user, and may vary depending on environmental and operating conditions. -
Page 8: Important Safety Note
MA 1 Operating Manual 3.1. Important Safety Note The MA 1 should always be operated in a quiet room with minimal magnetic influence, to ensure that examinations are not disturbed by external noise. Electro-medical instruments that emit strong electromagnetic fields (e.g. microwaves,... -
Page 9: Unpacking And Checking The Ma 1
PLEASE KEEP ALL ORIGINAL PACKAGING FOR FUTURE USE! The MA 1 is packaged in a specially-designed box. Please keep the box as it will be useful for sending the instrument for the annual instrument check-up. -
Page 10: Ma 1 Connections
MA 1 Operating Manual 4. MA 1 Connections The MA 1 has a single socket for both right and left earphones. While the instrument is off, insert the headphone into the socket ensuring is is completely seated prior to turning the device on. -
Page 11: Front Panel Controls And Display

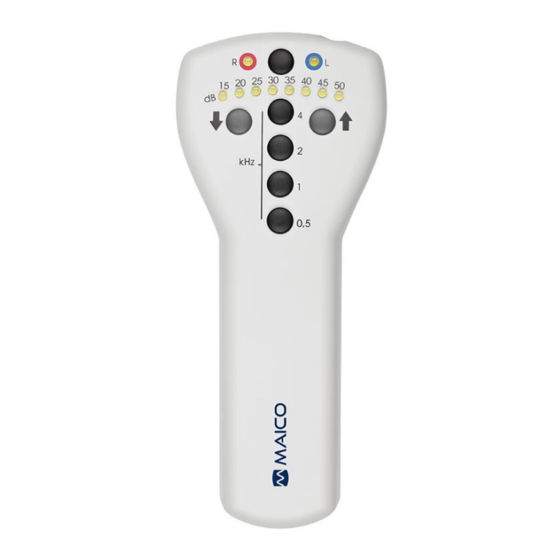

MA 1 Operating Manual 6. Front Panel Controls and Display Figure 3 Power button and R/L Ear Selector LED Ear Indicator LED Level Indicator dB Level selector buttons Frequency selector buttons/stimulus presentation buttons. 8100216-3 (D-0100192) -
Page 12: Audiometric Testing
MA 1 Operating Manual 7. Audiometric Testing 7.1. Instructing the Patient: Place the patient at ease concerning the test. Explain the purpose of the test and what kind of sound or sounds will be heard. An unvarying and uniform explanation to the person being tested will help provide test results that are consistently high in reliability. -
Page 13: Conducting The Test
7.3. Conducting the Test Press the black right/left button to turn on the MA 1. Use this same button to select the right (red LED) or left (blue LED) ear. Press the up or down arrow keys to select 20dBHL. Next press the 1 kHZ button to present the tone at 1kHZ to the patient. The tone will be presented as long as the corresponding frequency key (i.e .5, 1, 2, or 4... -
Page 14: Warranty And Disclaimer
8. Warranty and Disclaimer Warranty, Maintenance and After-Sales Service Hardware The MA 1 audiometer is guaranteed for 1 year. This warranty is extended to the original purchaser of the instrument by MAICO through the Distributor from whom it was purchased and covers defects in material and workmanship for a period of one year from date of delivery of the instrument to the original purchaser. -
Page 15: Care And Maintenance
MA 1 Operating Manual 9. Care and Maintenance Remove the unit’s batteries before cleaning! If the surface of the instrument or parts of it is contaminated, it can be cleaned using a soft cloth slightly damp with a mild solution of water and dish washing cleaner or similar. -
Page 16: Recalibration
If repair and recalibration is needed, be sure the work is done by a Maico Special Instrument Service Center. This assures the use of quality materials by trained and experienced technicians using accurate and reliable test equipment. -
Page 17: Safety Regulations
In order to ensure safety and quality of the measurement, an annual inspection and calibration should be performed. The annual check-ups can be performed by one of MAICO’s authorized service centers. 11.2. Instrument Handling: The instrument should be checked once a week. -
Page 18: Technical Data
MA 1 Operating Manual 12. Technical Data Standards: Audiometer : EN 60645-1/ANSI S3.6, Type 5 Frequencies and Maximum Intensities: Freq. Hz. AC (Air Condition) dB 1000 2000 4000 Inputs: None Outputs: AC headset, 10 ohm impedance Attenuator: 15 to 50 dBHL in 5 dB steps... -
Page 19: Regulatory Symbols
MA 1 Operating Manual 13. Regulatory Symbols Label or International Reference Placement Symbol Serial Number Registration Label Date of Manufacture Registration Label yyyy Address of Manufacturer Registration Label Package Label Return to Authorized Registration Label Representative B Patient Applied Part Registration Label according to IEC60601-1. - Page 20 Specifications are subject to change without notice. MAICO Diagnostics 10393 West 70th Street Eden Prairie, MN 55344 Phone: 1.888.941.4201 Fax: 952.903.4100 e-mail: info@maico-diagnostics.com Internet: www.maico-diagnostics.com...
- Page 22 8100216-3 (D-0100192) 06/15...
