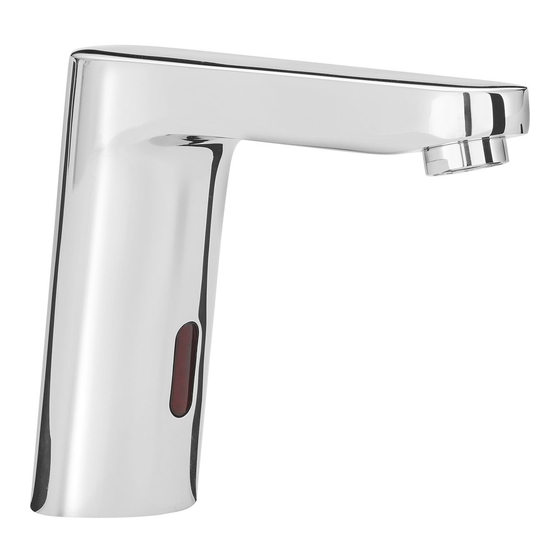

Infrared automatic basin spouts

Advertisement

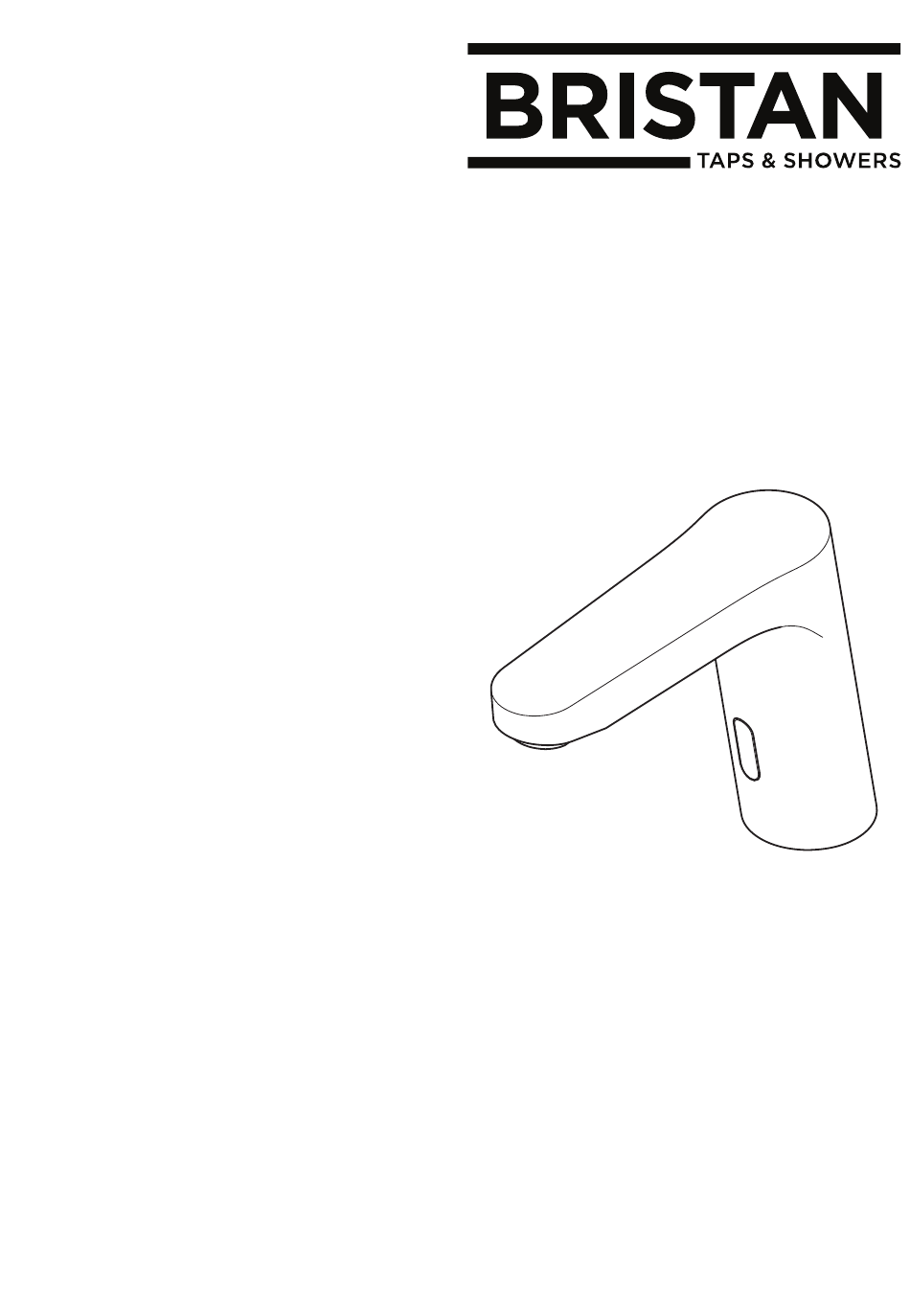

Installation Instructions

and User Guide
Infrared Automatic Basin
Spouts
Models Covered:
IRBS1-CP, IRBS2-CP &
IRWS1-CP
Please keep this booklet for future
reference.
Installer, when you have read these
instructions please ensure you leave
them with the user.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRBS1-CP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bristan IRBS1-CP

  • Page 1: Installation Instructions

    Installation Instructions and User Guide Infrared Automatic Basin Spouts Models Covered: IRBS1-CP, IRBS2-CP & IRWS1-CP Please keep this booklet for future reference. Installer, when you have read these instructions please ensure you leave them with the user.
  • Page 2: Table Of Contents

    Contents Thank you for choosing Bristan, the UK’s leading showers and taps expert. Your Bristan basin spout has a non-touch control which uses infrared sensing technology to detect human presence. Once detected, the spout instantly dispenses water and automatically stops once the user moves their hands away to eliminate unnecessary water wastage, whilst creating a more hygienic washroom solution.
  • Page 3: Important Safety Information

    • All products manufactured water supply pipes. This can be checked and supplied by Bristan are safe with the aid of an electronic detector. provided they are installed, used correctly and receive regular •...
  • Page 4: Specification

    Specification Power Supply Box Inlet Connection: G1/2”. This product has been tested to meet the requirements of the Water Regulations Power Supply Box Outlet Connection: Advisory Scheme (WRAS) and satisfies G1/2” the requirements of the Water Supply (Water Fittings) Regulations 1999 and Operating Pressure Range: Min.
  • Page 5: Product Features

    The water will automatically stop after a maximum of 55 seconds ± 5 seconds to avoid wasting water. If more water is required wait 4 seconds and then place IRBS1-CP hands back in the sensing range. More Hygienic Sensor The proximity sensor removes the need...
  • Page 6: Dimensions (Mm)

    Dimensions (mm) IRBS1-CP IRBS2-CP Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
  • Page 7 Dimensions (mm) IRWS1-CP Power Supply Box IRBS1-CP & IRBS2-CP IRWS1-CP G1/2 G1/2 Ø8 G1/2 Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
  • Page 8: Installation Requirements

    If the supply cord is damaged, it must be replaced by a genuine Bristan supply The wire which is coloured blue must cord. Contact Bristan Customer Services be connected to the terminal which is on 0330 026 6273 to request new spare marked with the letter ‘N’...
  • Page 9: Installation

    Installation IRBS1-CP 1. Fit The Spout Fit the spout to the sink / work surface ensuring the sensor cable is threaded through the hole in the sink / work surface. Important: It is advised to ensure that the product is at least...
  • Page 10 Installation IRBS2-CP 1. Fit The Spout Screw the fixing rods into the bottom of the spout. Fit the spout to the sink / work surface ensuring the sensor cable is threaded through the hole in the sink / work surface. Important: It is advised to ensure that the product is at least...
  • Page 11 Installation IRWS1-CP 1. Fit The Spout Create a 27-30mm hole in the wall surface. Thread the sensor cable and hose through the hole along with the threaded tail. Important: It is advised to install the spout to a partition/false wall to ensure access is available for future maintenance.
  • Page 12 Installation Inserting Batteries Your infrared spout is supplied with a back up battery pack (batteries not included). In the event of a power failure the batteries will override the mains power supply to ensure the spout continues to function. Before fitting the power supply box into position on the wall/floor, batteries (not included) will need to be fitted.
  • Page 13: Installation - Electrical Connections

    Installation - Electrical Connections 1. Position Power Supply Box Position the power supply box onto the wall surface below the sink/work surface where it is easily accessible. Note: Ensure that the power supply box is fitted the correct way up (see opposite) and that the flexible hose will reach from the underside of the spout to the power This way up...
  • Page 14: Installation - Water Connections

    Outlet Connection IRWS1-CP IRBS1-CP & IRBS2-CP The outlet connection on both the IRBS1-CP and IRBS2-CP is a standard 1/2” BSP male threaded connection. Connect the flexi hose (supplied) to the outlet connection, ensuring it is tightened fully. IRWS1-CP...
  • Page 15: Operation

    Installation - Water Connections Flexible Connecting Hose Care must be taken when connecting the flexible connection hose from the power supply box to the spout to ensure it does not bend sharply and kink or twist. See below for recommended ways to fit the flexible connecting hose. Kinks Twists Slight...
  • Page 16: Maintenance

    Maintenance Disposal and Recycling General Cleaning Your fitting has a high quality finish and End of Product Life should be treated with care to preserve When this appliance has reached the end the visible surfaces. All surfaces will of its serviceable life, it should be wear if not cleaned correctly, the only disposed of in a safe manner, in safe way to clean your mixer is to wipe...
  • Page 17: Troubleshooting

    Refer to the ‘Electrical Connections’ section. Turn on water supply and open Water supply not turned on. any isolation/service valves. Contact Bristan Customer Spout does Solenoid valve not opening. Services. not operate e.g no water Connect power supply No mains electrical power to the flow.
  • Page 18 Object in the sensing range. Ensure the sensing range is clear. without a user present. Sensor light faulty. Contact Bristan Customer Sensor light Circuit board faulty or has been Services. not working. allowed to get wet. Batteries are exhausted.
  • Page 19: Notes

    Notes Need help? Give us a call on 0330 026 6273 and speak to one of our trained advisors.
  • Page 20 Email: enquire@bristan.com A Masco Company At Bristan, we want to make things as easy as possible for our customers. That’s why we offer solid guarantees on all our products, effective from the date of purchase, to give you peace of mind.
