Device components

2. Device components

2.1. Housing cover with board

PROG button
LED

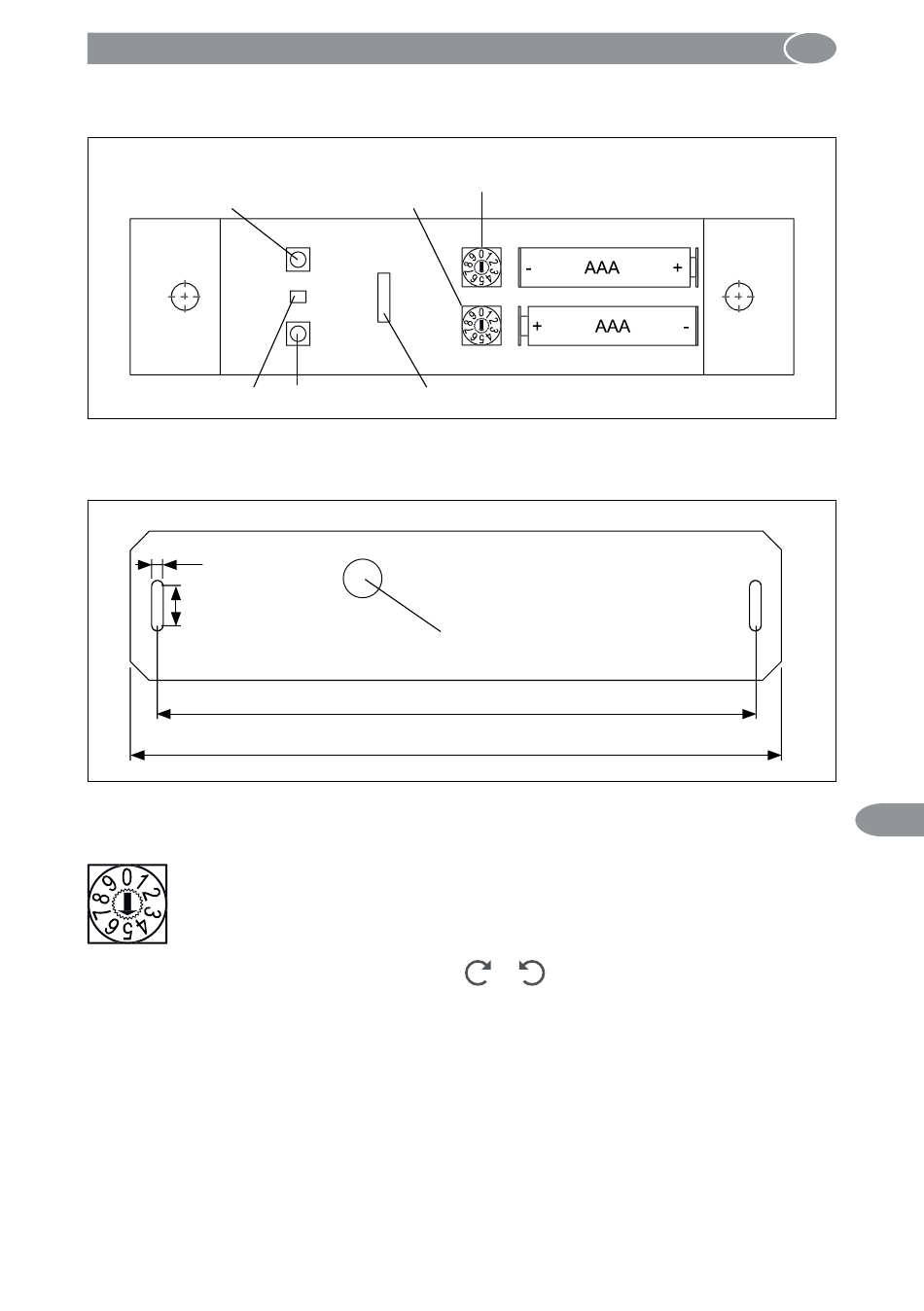

Picture 1: Housing cover – view inside on the board

2.2. Base plate with magnet and mounting holes

4,4
10
Picture 2: Base plate – drilling dimensions

2.3. Step switch for wind sensitivity

• Setting the wind sensitivity in 10 gradations.
• Usa a screw driver (max. 0.4 × 2.5 mm blade size ).
• The step switch has no stopper.
• Turn the step switch clockwise
• The delivery status is step '2'.
Step switch for
inclination angle
TOGGLE button Reed contact
Magnet
153
167
23
Step switch
for wind sensitivity
or counterclockwise.
