Control Panel - Zhiyun Evolution User Manual

mode
1. Push to mount the camera until it touch against the
tilt axis motor.
NOTICE: Do not power on the stabilizer before the camera is properly mounted.

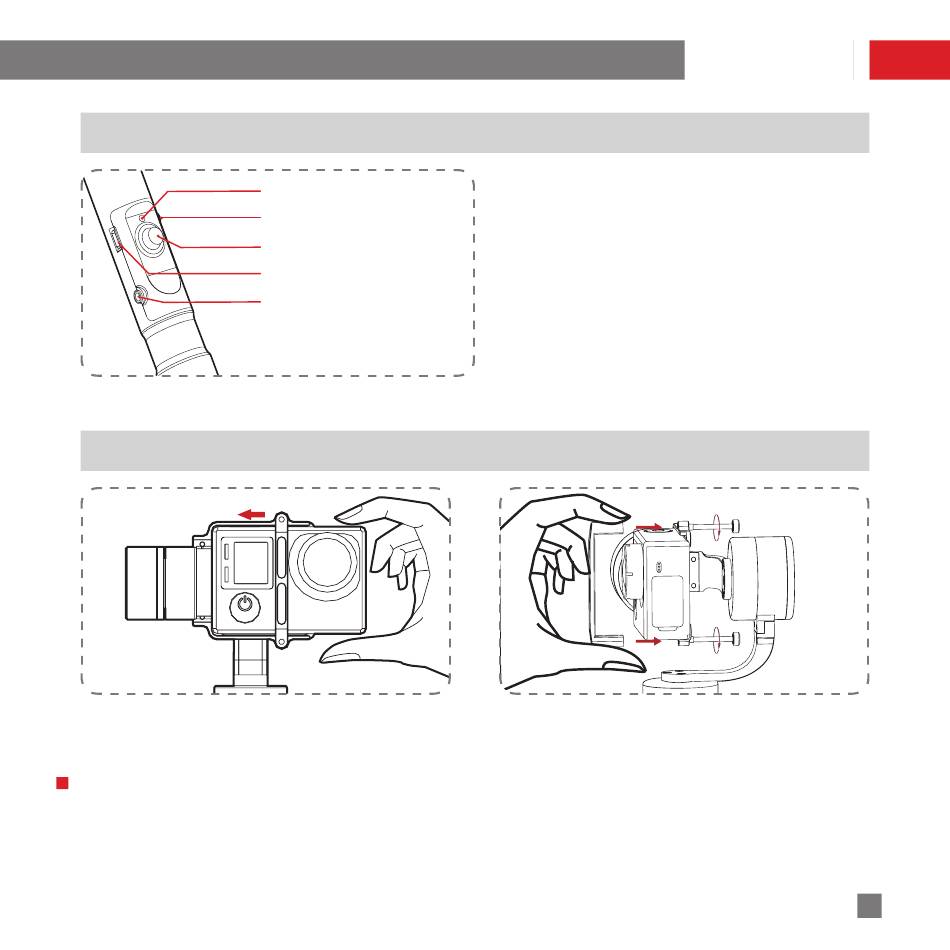

Control Panel Introduction
电量指示灯
Battery Level Indicator
电源开关
Power ON/OFF
摇杆
Joystick
Micro USB Port Micro USB接口
3.5mm Video
3.5mm视频输出口
Output Port
How to Start Up
Battery Level Indicator: Indicates current power
level with different flashing frequency.
Power ON/OFF: Long press 3 sec. to Power ON/
OFF.
Joystick: Controls the camera movement and
switches between modes.
Micro USB Port: Connect the stabilizer with
a computer for firmware upgrade and on-line
calibration.
3.5mm Video Output Port: Used for real-time
video ouput and camera charging.
2. Rotate the Thumb Screws to tighten up the camera
mounting bracket.

Control Panel
