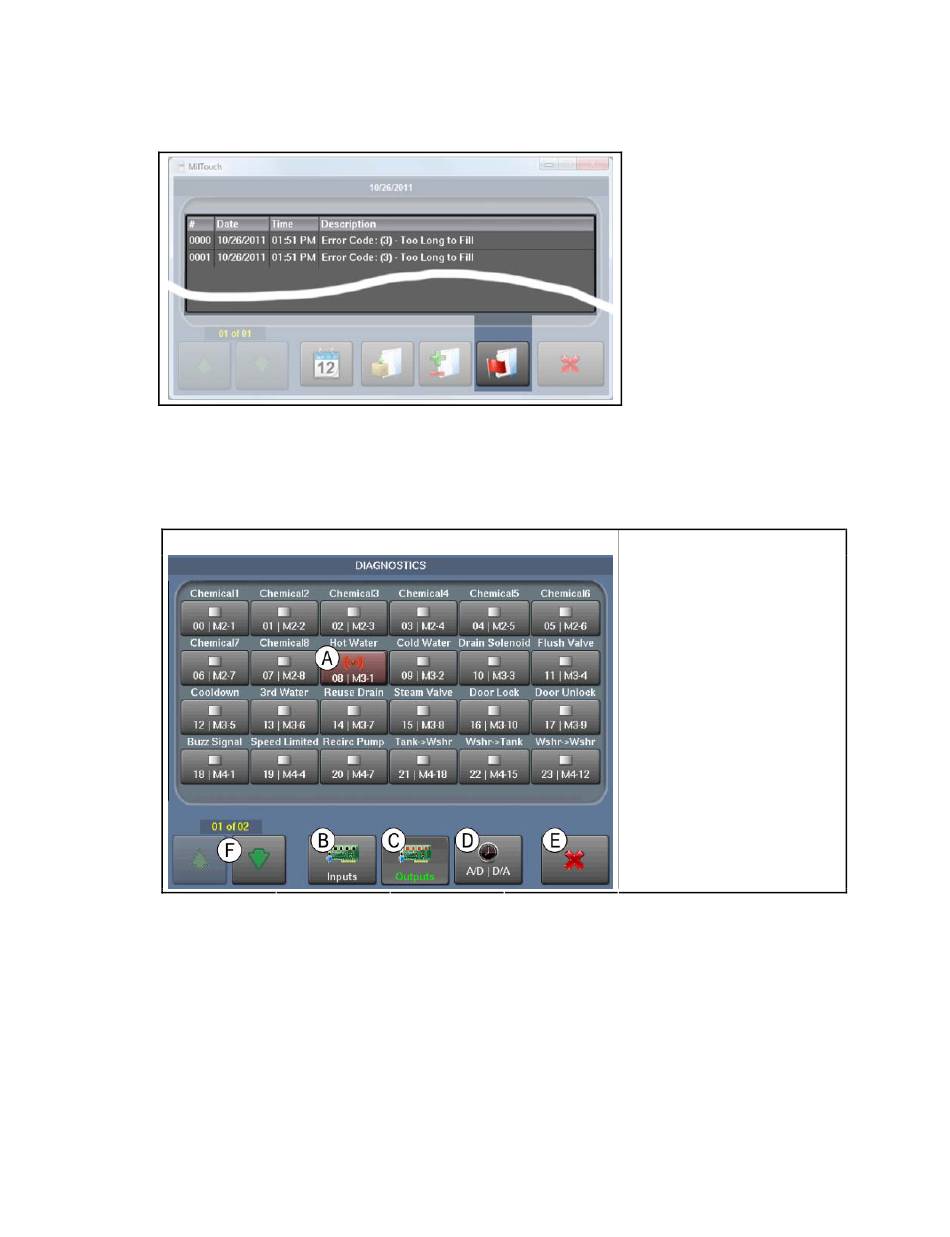

Figure 12: Errors Display

The Inputs and Outputs Displays

1.1.1.6.
Touch the button again to turn the output OFF. All outputs turn OFF when you exit the Outputs
Display.
Figure 13: The Outputs Display
.
—Touch any output button to actuate the output.
Typical View
19
Chapter 1. How to Use the MilTouch Control
Legend
A. Output ACTUATED
B. Inputs Selector button
C. Outputs Selector button
D. Analog and Digital
Selector button
E. Exit button (return to
Home)
F. Scroll Pages button
