Status Menu

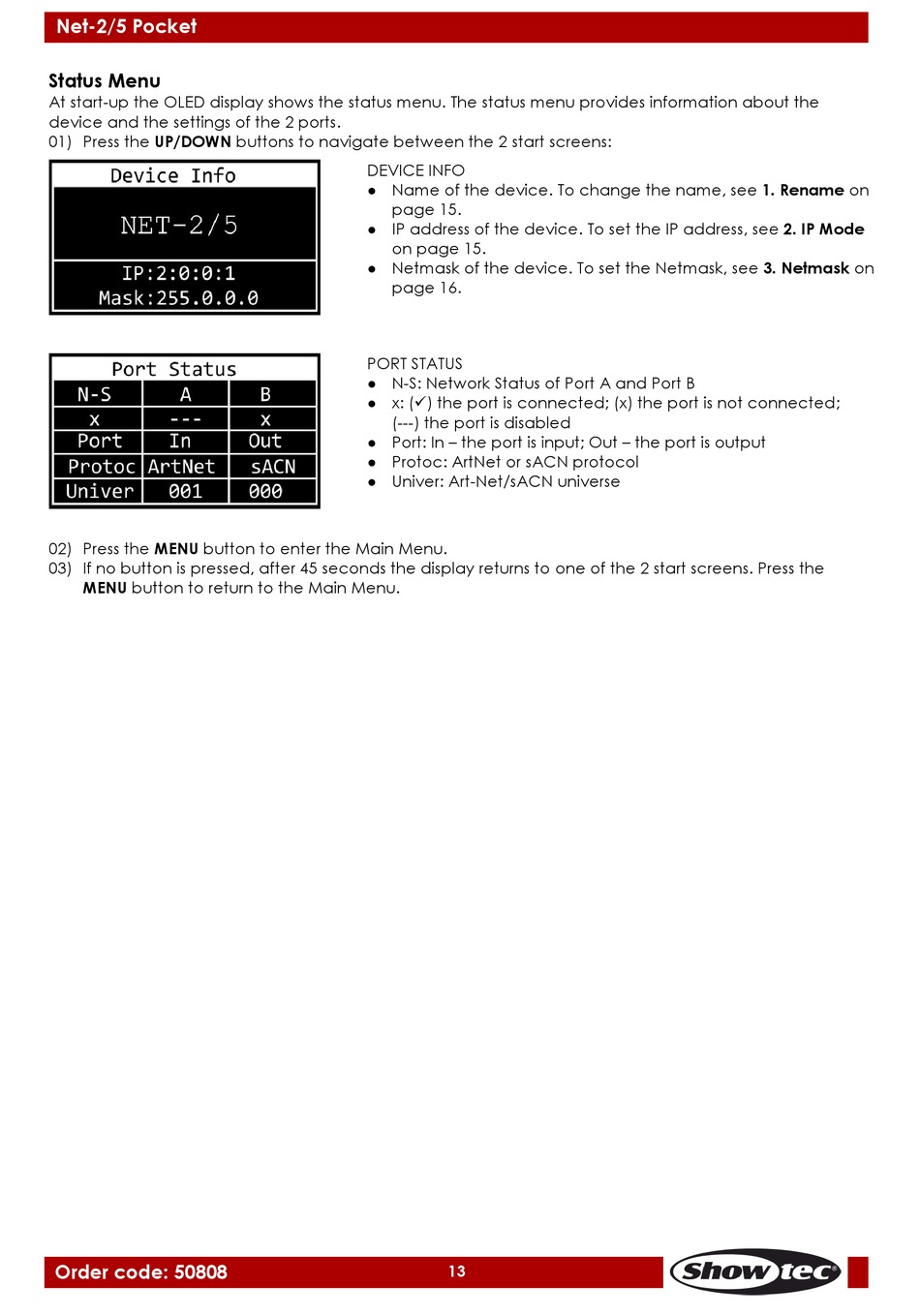

At start-up the OLED display shows the status menu. The status menu provides information about the
device and the settings of the 2 ports.
01) Press the UP/DOWN buttons to navigate between the 2 start screens:
02) Press the MENU button to enter the Main Menu.
03) If no button is pressed, after 45 seconds the display returns to one of the 2 start screens. Press the
MENU button to return to the Main Menu.
Order code: 50808
DEVICE INFO
● Name of the device. To change the name, see 1. Rename on
page 15.
● IP address of the device. To set the IP address, see 2. IP Mode
on page 15.
● Netmask of the device. To set the Netmask, see 3. Netmask on
page 16.
PORT STATUS
● N-S: Network Status of Port A and Port B
● x: () the port is connected; (x) the port is not connected;
(---) the port is disabled
● Port: In – the port is input; Out – the port is output
● Protoc: ArtNet or sACN protocol
● Univer: Art-Net/sACN universe
