PIONEER DJ DDJ-XP2 Operating Instructions Manual

Dj controller
Hide thumbs Also See for DDJ-XP2:
Table of Contents

Advertisement

Quick Links

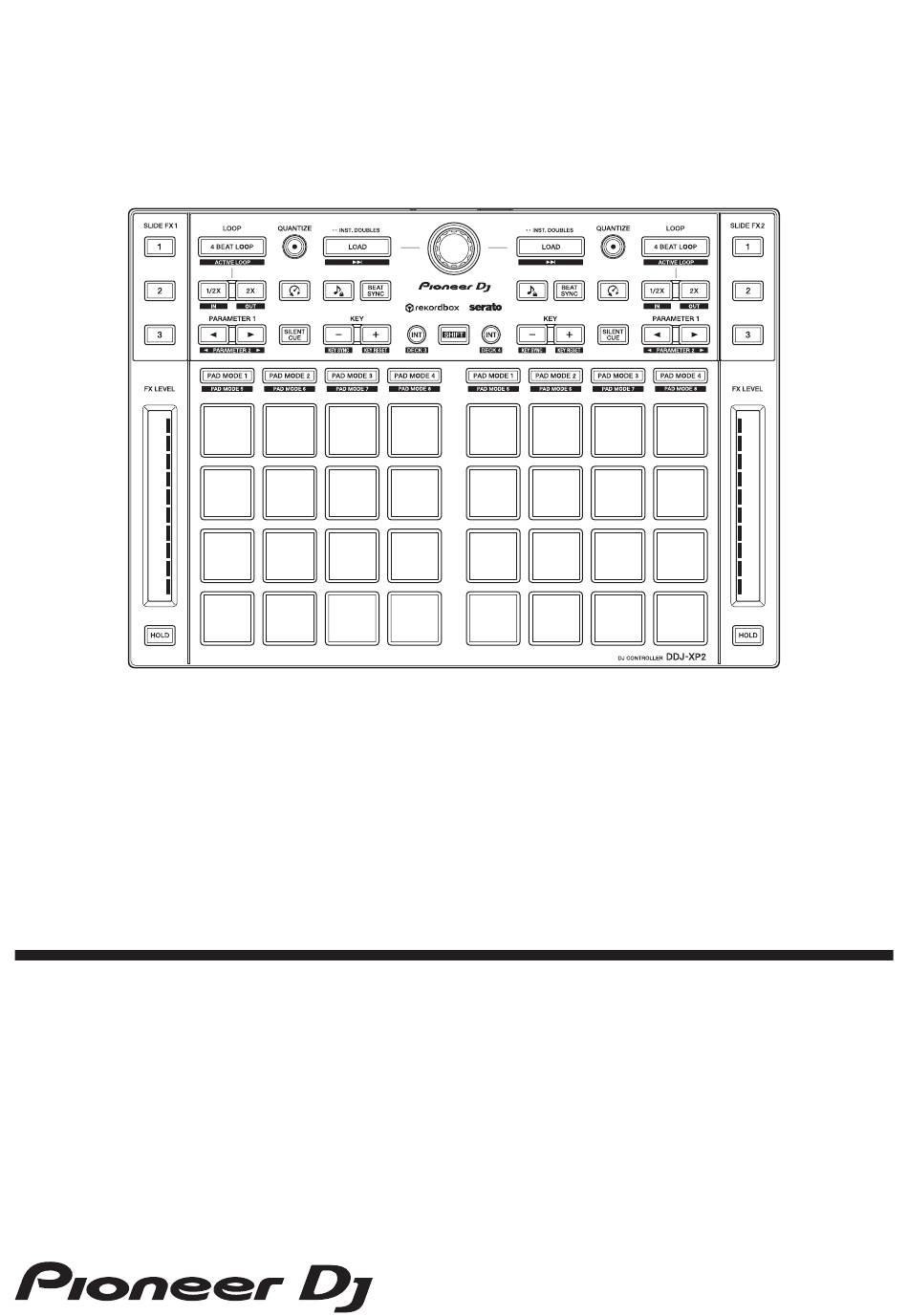

Operating Instructions
DJ Controller
DDJ-XP2
pioneerdj.com/support/
rekordbox.com
http://serato.com/
For FAQs and other support information for this product, visit the websites above.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DDJ-XP2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PIONEER DJ DDJ-XP2

Summary of Contents for PIONEER DJ DDJ-XP2

  • Page 1: Operating Instructions

    Operating Instructions DJ Controller DDJ-XP2 pioneerdj.com/support/ rekordbox.com http://serato.com/ For FAQs and other support information for this product, visit the websites above.

  • Page 2: How To Read This Manual

    How to read this manual Thank you for choosing this Pioneer DJ product. Be sure to read this manual and “Operating Instructions (Quick Start Guide)” which is included with this product. These documents include important information that you should understand before using the unit.
  • Page 3 • You can download the Serato DJ Pro software manual from serato.com.

  • Page 4: Table Of Contents

    Contents How to read this manual ............... 2 Before you start................. 5 What’s in the box ................5 Acquiring the manual ..............6 DJ software................... 7 rekordbox dj................13 Installing rekordbox..............13 Part names and functions (rekordbox)........14 System setup ................24 Basic use (rekordbox)..............

  • Page 5: Before You Start

    Before you start What’s in the box • USB cable • Warranty (for some regions) • Operating Instructions (Quick Start Guide) • License key card rekordbox dj rekordbox dvs Only products in Europe. – For the North American region, the corresponding information is provided on the last page of both the English and French versions of the “Operating Instructions (Quick Start Guide).”...

  • Page 6: Acquiring The Manual

    Before you start Acquiring the manual Viewing the rekordbox Introduction / Operating Instructions • Introduction explains how to setup rekordbox. • Operating Instructions explains the track collection, EXPORT mode and PERFORMANCE mode. 1 Launch a web browser on your PC/Mac and visit the website below. rekordbox.com 2 Hover the cursor over [Support], and then click [Manual].

  • Page 7: Dj Software

    Before you start DJ software About rekordbox • rekordbox rekordbox is comprehensive music management software designed for DJs. • rekordbox dj rekordbox dj is the professional performance application for rekordbox. You can use rekordbox dj by entering the rekordbox dj license key on the supplied license key card.
  • Page 8 Before you start Others USB port USB 2.0 port × 2 Display resolution Resolution of 1280 × 768 or greater Internet connection You’ll need an internet connection to register your user account for rekordbox and to download the software. • For information on the latest system requirements, compatibility, and supported operating systems, visit the [System requirements] page under [Support] on the rekordbox website below.
  • Page 9 Before you start  Using the unit with rekordbox dvs vinyl/CD You need one of the following equipment. • DJ mixer compatible with rekordbox dj (such as DJM-S9 or DJM- 900NXS2) • Audio interface compatible with rekordbox dj (such as INTERFACE •...
  • Page 10 Before you start About the Serato DJ Pro software Serato DJ Pro delivers all the features and performance to meet the demands of DJs at the top of their game and sets the new standard for digital DJ software. • Serato DJ Pro is plug and play with this unit. Download the latest version from the Serato website at serato.com.
  • Page 11 Before you start • For information on the latest system requirements, compatibility, and supported operating systems of Serato DJ Pro, visit the website below. https://serato.com/dj/pro/downloads • Be sure to use the latest version and latest service pack for your operating system. •...
  • Page 12 Before you start  Using the unit as a sub controller for DJ players You need DJ players such as CDJ-2000NXS2.

  • Page 13: Rekordbox Dj

    rekordbox dj Installing rekordbox If you’re using rekordbox for the first time, or if you’re currently using rekordbox ver. 4.x or lower, download the latest version from rekordbox.com and install it in the following way. If you already have rekordbox ver. 5.x installed, update to the latest version using the Update Manager which shows when you start rekordbox.

  • Page 14: Part Names And Functions (Rekordbox)

    rekordbox dj Part names and functions (rekordbox) This section explains typical functions of buttons and pads when using rekordbox dj. Top panel 1 Browser section (page 15) 2 Deck section (page 17) 3 Performance Pads section (page 20) 4 Slide FX section (page 22)
  • Page 15 rekordbox dj Browser section 1 INT buttons Press: Sets the playback mode to Relative mode or Internal mode on rekordbox dvs. [SHIFT] + press: Selects a deck. When deck 3 or deck 4 is selected and the [SHIFT] button is pressed, the [INT] button lights up.
  • Page 16 rekordbox dj • The tree view, track list and playlist palette are located in the browse section of rekordbox dj. For details on each role, read the rekordbox Operating Instructions. 3 LOAD buttons Press: Loads the selected track onto the deck. Press twice: Loads the track that is already loaded on the other deck onto the deck where you pressed the [LOAD] button.
  • Page 17 rekordbox dj Deck section 1 4 BEAT LOOP buttons Press: During normal playback, the auto beat loop of 4 beats is set, and then loop playback starts. During the loop playback, the loop playback is canceled. [SHIFT] + press: Makes the loop saved on the track active/inactive. (Active Loop) •...
  • Page 18 rekordbox dj 3 LOOP 2X buttons Press: Doubles the loop playback length. [SHIFT] + press: Sets the Loop Out point and starts the loop playback. 4 QUANTIZE buttons Press: Turns the Quantize function on/off. When the Quantize function is on, the point is set to the nearest beat position when setting a Hot Cue, etc.
  • Page 19 rekordbox dj 7 BEAT SYNC buttons Press: Turns SYNC on/off. This is used to automatically match the tempo and beatgrid of the deck set as the synchronization master. • The tempo is matched with the doubled tempo or halved tempo of the track playing on the deck set as the synchronization master.
  • Page 20 rekordbox dj Performance Pads section 1 PARAMETER  button, PARAMETER  button Press: Changes the pad display on the deck screen of rekordbox dj. [SHIFT] + press: Changes the bank of the sampler. 2 PAD MODE 1 button Press: Turns Hot Cue mode on. [SHIFT] + press: Turns Keyboard mode on.
  • Page 21 rekordbox dj 3 PAD MODE 2 button Press: Turns Pad FX mode 1 on. [SHIFT] + press: Turns Pad FX mode 2 on. 4 PAD MODE 3 button Press: Turns Beat Jump mode on. [SHIFT] + press: Turns Beat Loop mode on. 5 PAD MODE 4 button Press: Turns Sampler mode on.
  • Page 22 rekordbox dj Slide FX section 1 SLIDE FX [1] button, SLIDE FX [2] button, SLIDE FX [3] button Press: Selects an effect applied when touching the touch strip. • Multiple effects can’t be selected at the same time. [SHIFT] + press: Selects the type of Slide FX.
  • Page 23 rekordbox dj 2 Touch strip Touch: Turns the selected effect on and changes the level/depth of the effect according to the touched position. • When releasing the touch strip, the effect is turned off. Slide: Changes the level/depth of the effect according to the sliding position. 3 HOLD button Press: Keeps the effect on even after the touch strip is released.

  • Page 24: System Setup

    DDJ - XP2 PC / Mac (1) USB cable (supplied), (2) USB cable, (3) Audio cable, (4) Turntable (PLX-1000, etc.), (5) DJ mixer (DJM-S9, etc.) For connecting the DDJ-XP2, be sure to use the supplied USB cable for high level performance.
  • Page 25 PC / Mac (1) USB cable (supplied), (2) USB cable, (3) LAN cable, (4) DJ player (CDJ-2000NXS2, etc.), (5) DJ mixer (DJM-900NXS2, etc.), (6) Switching hub For connecting the DDJ-XP2, be sure to use the supplied USB cable for high level performance.

  • Page 26: Basic Use (Rekordbox)

    USB cable. 2 Connect audio outputs of turntables and channel inputs of the DJ mixer using audio cables (RCA) (sold separately). 3 Set a Control Vinyl for rekordbox dvs made by Pioneer DJ (sold separately). • Other vinyls can’t be used.
  • Page 27 7 Read the rekordbox dvs Setup Guide to complete settings. 8 Connect the unit to your PC/Mac using the supplied USB cable. When [DDJ-XP2 is connected.] appears on the rekordbox dj screen, the DDJ- XP2 is ready to use. • The unit works with the standard driver of your PC/Mac’s operating system.
  • Page 28 rekordbox dj  Adding music files into [Collection] The [Collection] screen contains a list of music files managed by rekordbox. Add music files on your PC/Mac to your Collection so the software can analyze them and they can be used in rekordbox. 1 Click [Collection] on the tree view.
  • Page 29 rekordbox dj  Quitting the system 1 Quit rekordbox dj. 2 Disconnect the USB cable from your PC/Mac. Using the unit to control rekordbox dj with DJ players First, you need to connect your PC/Mac to a DJ mixer compatible with rekordbox dvs.
  • Page 30 7 Connect the unit to your PC/Mac using the supplied USB cable. When [DDJ-XP2 is connected.] appears on the rekordbox dj screen, the DDJ- XP2 is ready to use. • The unit works with the standard driver of your PC/Mac’s operating system.
  • Page 31 rekordbox dj  Playing tracks Control the DJ player to play the track loaded onto the deck of rekordbox dj.  Quitting the system 1 Quit rekordbox dj. 2 Disconnect the USB cable from your PC/Mac.

  • Page 32: Advanced Use (Rekordbox)

    rekordbox dj Advanced use (rekordbox) Using 4 Beat Loop During playback, press the [4 BEAT LOOP] button. Loop playback starts with 4 beats from the point where you press the button. • When the Quantize function is turned on, you might notice a slight delay due to quantization.
  • Page 33 rekordbox dj Using Manual Loop You can choose the section you want to loop. • When the Quantize function is turned on, you might notice a slight delay due to quantization. 1 Press the [1/2X] button while holding the [SHIFT] button at the point you want to start looping (the Loop In point) during playback.

  • Page 34: Using Hot Cues

    rekordbox dj Using the Performance Pads  Using Hot Cues You can start playback instantly from the position where a Hot Cue is set. Loops can also be set and called up instantly. • Up to 16 Hot Cue points can be set and saved for each track in rekordbox dj.
  • Page 35 rekordbox dj 3 Press a Performance Pad you’ve set a Hot Cue for. Playback starts from the Hot Cue point. • You can clear Hot Cue points by pressing a Performance Pad while holding the [SHIFT] button. Setting and calling up 4 Beat Loop 1 Press the [PAD MODE 1] button.
  • Page 36 rekordbox dj  Using Pad FX You can add a wide range of effects to your performances simply by pressing and releasing the Performance Pads. 1 Press the [PAD MODE 2] button. Pad FX mode 1 is turned on. Effects are set to Performance Pads as follows. (10) (11) (12)
  • Page 37 rekordbox dj (10) (11) (12) (13) (14) (15) (16) (1) Effect Q, (2) Effect R, (3) Effect S, (4) Effect T, (5) Effect U, (6) Effect V, (7) Effect W, (8) Effect X, (9) Effect Y, (10) Effect Z, (11) Effect AA, (12) Effect AB, (13) Effect AC, (14) Effect AD, (15) Effect AE, (16) Effect AF •...
  • Page 38 rekordbox dj  Using Beat Jump You can move the playback position instantly without changing the original rhythm. 1 Press the [PAD MODE 3] button. Beat Jump mode is turned on. The numbers of beats or bars to jump are set to Performance Pads as follows. (Default setting) (10) (11)
  • Page 39 rekordbox dj  Using Sampler You can use the Performance Pads to play tracks or sounds assigned to the Sampler slots. Preparing to use the Sampler Mark the [SAMPLER] check box at the top of the rekordbox dj screen. • The [SAMPLER] panel is shown. Loading a track into a Sampler slot 1 Press the [PAD MODE 4] button.
  • Page 40 rekordbox dj Playing Sampler tracks with Performance Pads 1 Press the [PAD MODE 4] button. Sampler mode is turned on. 2 Press the [PARAMETER ] button or [PARAMETER ] button while holding the [SHIFT] button. The bank of the sampler is changed. 3 Adjust the Sampler Gain on the rekordbox dj screen.
  • Page 41 rekordbox dj  Using Keyboard mode Use Performance Pads to add a scale to the Hot Cue like a keyboard. 1 Press the [PAD MODE 1] button while holding the [SHIFT] button. Keyboard mode is turned on. • To change the pitch set to the Performance Pad, press the [PARAMETER ] button or [PARAMETER ] button.
  • Page 42 rekordbox dj  Using Beat Loop Press a Performance Pad while in Beat Loop mode to loop a set number of beats or bars. The loop keeps playing after you remove your finger from the pad. 1 Press the [PAD MODE 3] button while holding the [SHIFT] button. Beat Loop mode is turned on.
  • Page 43 rekordbox dj  Using Key Shift When you press a Performance Pad, the key of the current playback track is changed to the pitch set to the pressed pad. 1 Press the [PAD MODE 4] button while holding the [SHIFT] button. Key Shift mode is turned on.
  • Page 44 rekordbox dj Using Slide FX You can quickly control an effect by touching and sliding the touch strip on the unit. 1 Mark the [FX] check box at the top of the rekordbox dj screen. The Slide FX panel is shown. •...

  • Page 45: Serato Dj Pro

    Serato DJ Pro Part names and functions (Serato DJ Pro) This section explains typical functions of buttons and pads when using Serato DJ Pro. Top panel 1 Browser section (page 46) 2 Deck section (page 48) 3 Performance Pads section (page 51) 4 Slide FX section (page 53)
  • Page 46 Serato DJ Pro Browser section 1 INT buttons Press: Sets the playback mode to Relative mode or Internal mode on Serato DVS. [SHIFT] + press: Selects a deck. When deck 3 or deck 4 is selected and the [SHIFT] button is pressed, the [INT] button lights up.
  • Page 47 Serato DJ Pro Press: Moves the cursor between the library and [crates] panel each time you press the rotary selector. The cursor on the [Files] panel is moved to the lower level. The cursor on the [Browse] panel is moved to the next category. •...
  • Page 48 Serato DJ Pro Deck section 1 4 BEAT LOOP buttons Press: During normal playback, the auto beat loop of 4 beats is set, and then loop playback starts. During the loop playback, the loop playback is canceled. [SHIFT] + press: Switches the active or non-active status of the loop.
  • Page 49 Serato DJ Pro 3 LOOP 2X buttons Press: Doubles the loop playback length. [SHIFT] + press: Sets the Loop Out point and starts the loop playback. 4 QUANTIZE buttons Press: Turns the Quantize function on/off. (Censor) buttons Press: Hold down this button to play the track in the reverse direction. Normal playback resumes when this button is released.
  • Page 50 Serato DJ Pro 8 SILENT CUE buttons Press: Mutes the sound of the currently playing track on the selected deck. To cancel muting, press this button again. • You can also cancel silent cue by triggering a hot cue on the muted deck. 9 KEY - buttons Press: Lowers the key of the currently playing track by one semitone.
  • Page 51 Serato DJ Pro Performance Pads section 1 PARAMETER  button, PARAMETER  button Press: Sets the parameter for each pad mode.  Read more: Using the Performance Pads (page 59) 2 PAD MODE 1 button Press: Turns Hot Cue mode and Sampler mode on. [SHIFT] + press: Turns Pitch Play mode on.
  • Page 52 Serato DJ Pro 3 PAD MODE 2 button Press: Turns Auto Loop mode on. [SHIFT] + press: Turns Roll mode on. Press twice: Turns User mode 2 on. 4 PAD MODE 3 button Press: Turns Slicer mode and Sampler mode on. [SHIFT] + press: Turns Slicer Loop mode and Sampler mode on.
  • Page 53 Serato DJ Pro Slide FX section 1 SLIDE FX [1] button, SLIDE FX [2] button, SLIDE FX [3] button Press: Selects an effect applied when touching the touch strip. [SHIFT] + press: Changes the effect that is loaded into each FX slot.
  • Page 54 Serato DJ Pro 2 Touch strip Touch: Turns the selected effect on and changes the level/depth of the effect according to the touched position. • When the touch strip is released, the effect is turned off. Slide: Changes the level/depth of the effect according to the sliding position. 3 HOLD button Press: Keeps the effect on even after the touch strip is released.
  • Page 55 DDJ - XP2 PC / Mac (1) USB cable (supplied), (2) USB cable, (3) Audio cable, (4) Turntable (PLX-1000, etc.), (5) DJ mixer (DJM-S9, etc.) For connecting the DDJ-XP2, be sure to use the supplied USB cable for high level performance.

  • Page 56: Basic Use (Serato Dj Pro)

    Serato DJ Pro Basic use (Serato DJ Pro) Launching the system First, you need to connect your PC/Mac to a Serato DJ Pro-compatible DJ controller or DJ mixer. • For detailed information on using the Serato DJ Pro software, and the Serato DJ Pro-compatible DJ mixer or DJ controller, see serato.com.

  • Page 57: Quitting The System

    Serato DJ Pro  Adding music files (tracks) Add music files (tracks) to the library using Serato DJ Pro.  Loading an audio track onto a deck 1 Press the rotary selector on the unit to move the cursor to the [crates] panel on your PC/Mac screen.

  • Page 58: Advanced Use (Serato Dj Pro)

    Serato DJ Pro Advanced use (Serato DJ Pro) Using 4 Beat Loop During playback, press the [4 BEAT LOOP] button. Loop playback starts with 4 beats from the point where you press the button. • When the Quantize function is turned on, you might notice a slight delay due to quantization.
  • Page 59 Serato DJ Pro  Extending the loop Press the [2X] button during the loop playback. Each time you press the button, the loop doubles in length. • The loop length can be doubled even during 4 beat loop playback.  Canceling the loop Press the [4 BEAT LOOP] button.
  • Page 60 Serato DJ Pro Using Hot Cues You can start playback instantly from the position where a Hot Cue is set. • Up to 8 Hot Cue points can be set and saved for each track. 1 If the track is playing or paused, press a Performance Pad (1 through 8) to set the Hot Cue point.
  • Page 61 Serato DJ Pro 2 Press the rotary selector to move the cursor to the track list. 3 Turn the rotary selector to select a track. 4 Press the Performance Pad (9 through 16) while holding the [SHIFT] button. The selected track is loaded into the Sampler slot. (10) (11) (12)
  • Page 62 Serato DJ Pro  Using Auto Loop mode You can operate both auto loop and beat jump in the same pad mode. Press the [PAD MODE 2] button to turn this mode on. (10) (11) (12) (13) (14) (15) (16) (1) Auto Loop 1/32 beat, (2) Auto Loop 1/16 beat, (3) Auto Loop 1/8 beat, (4) Auto Loop 1/4 beat, (5) Auto Loop 1/2 beat, (6) Auto Loop 1 beat, (7) Auto Loop 2 beats, (8) Auto Loop 4 beats,...
  • Page 63 Serato DJ Pro 2 Press the same Performance Pad again. The loop playback is canceled. Using Beat Jump You can move the playback position instantly without changing the original rhythm. • Press the Performance Pad 14 or 15: Selects the range of beat jump. •...
  • Page 64 Serato DJ Pro Using Slicer The specified range is divided into 8 equal sections, and these 8 sliced sections are assigned to the respective Performance Pads. While you hold down a Performance Pad, the sound for the section assigned to that pad is played in a loop. While playing a loop of the pad’s sound, normal playback with the original rhythm continues in the background.
  • Page 65 Serato DJ Pro 2 Press the [PARAMETER ] button or [PARAMETER ] button. Set the quantization for the Slicer function. The value set for the quantization switches each time you press one of the buttons. The quantization can be set to one of 4 settings: 1/8, 1/4, 1/2 and 1. With the quantization setting, you can change the length of the loop which is played while holding the pad.
  • Page 66 Serato DJ Pro Slicer Loop When the playback position advances to the end of the range that has been sliced into 8 equal sections, the playback position returns to the beginning of the range. 1 2 3 4 5 6 7 8 Using Sampler ...
  • Page 67 Serato DJ Pro Using Saved Loop You can save a loop in a loop slot of Serato DJ Pro and call up the saved loop. 1 Press a Performance Pad (1 through 8) during loop playback. The loop is assigned to a loop slot of Serato DJ Pro. •...
  • Page 68 Serato DJ Pro Using Beat Jump  Read: Using Auto Loop mode (page 62)  Using Pitch Play mode In order to use Pitch ’n Time DJ with Serato DJ Pro, you will need to purchase a seperate license. For more details, please visit: serato.com Press the [PAD MODE 1] button while holding the [SHIFT] button to turn this mode on.
  • Page 69 Serato DJ Pro • To shift the pitch by semitones, press the [PARAMETER ] button or [PARAMETER ] button while holding the [SHIFT] button. Up range Middle range Down range...
  • Page 70 Serato DJ Pro  Using Roll mode You can operate both roll and beat jump in the same pad mode. Press the [PAD MODE 2] button while holding the [SHIFT] button to turn this mode on. (10) (11) (12) (13) (14) (15) (16)
  • Page 71 Serato DJ Pro • When you press the [PARAMETER ] button or [PARAMETER ] button while holding the [SHIFT] button, the loop is moved without changing the length. (Loop Shift) 2 Release the Performance Pad. The loop roll is canceled, and playback resumes from the position reached in the background.
  • Page 72 Serato DJ Pro Using Transport mode If you don’t have turntables or CDJs connected to your mixer, you can still control your DJ tracks using the transport functions that are included in this pad mode. 1 Press the Performance Pad 1 or 2. Temporarily adjust the pitch.
  • Page 73 Serato DJ Pro • When you hold down the Performance Pad 7 after returning to the temporary cue point, the playback continues while the button is held down. (Cue Sampler) • When you press the Performance Pad 8 during Cue Sampler, the playback continues.
  • Page 74 Serato DJ Pro • You can assign functions differently to the 16 pads using the four user modes below. – [PAD MODE 1] button: User mode 1 – [PAD MODE 2] button: User mode 2 – [PAD MODE 3] button: User mode 3 –...
  • Page 75 Serato DJ Pro 4 Press the Performance Pad you want to assign the feature to. When the following screen is shown, the assignment is completed. 5 Click the [MIDI] button on the upper right of the Serato DJ Pro screen. MIDI Assign mode is canceled.
  • Page 76 • When connecting a device which has SEND/RETURN, such as DJM-S9, the effect may not work properly. For details, refer to the [FAQ] on the Pioneer DJ website. pioneerdj.com/support/ 1 Click [FX] at the top of the Serato DJ Pro screen.

  • Page 77: Settings On The Unit

    Settings on the unit Launching Utilities mode 1 Disconnect the supplied USB cable from the unit. • Connect the USB cable to your PC/Mac. 2 Quit the DJ application if it’s running. • If you start Utility mode while a DJ application such as rekordbox dj is running on your PC/Mac, the setting isn’t displayed correctly.

  • Page 78: Utilities Mode

    Settings on the unit Utilities mode The following settings can be changed: • Changing the Demo mode setting (page 78) • Changing the Load Illumination setting (page 79) • Setting the MIDI Controller mode selection method (page 80) • Changing the MIDI output setting for the touch strip (page 81) Changing the Demo mode setting If you don’t use any of the features for a specified amount of time, the unit will enter Demo mode.
  • Page 79 Settings on the unit (9) Pad 9 on the left is lit: 5 minutes (13) Pad 13 on the left is lit: 10 minutes Changing the Load Illumination setting Load Illumination shows that the track is loaded onto the deck. Press the [PAD MODE 2] button on the left.
  • Page 80 Settings on the unit Setting the MIDI Controller mode selection method The unit has 2 types of MIDI controller modes such as a mode for functions of rekordbox dj and Serato DJ, and a general MIDI controller mode. You can select the mode. Press the [PAD MODE 3] button on the left.
  • Page 81 Settings on the unit Changing the MIDI output setting for the touch strip When you slide the touch strip away from you, normally the MIDI (control change) value increases. You can reverse it. Press the [PAD MODE 4] button on the left. The MIDI output setting for the touch strip is changed each time you press the [PAD MODE 4] button.

  • Page 82: Additional Information

    Additional information Troubleshooting If you think something is wrong with the unit, check the information below and refer to the [FAQ] for the DDJ-XP2 on the Pioneer DJ website. pioneerdj.com/support/ Additionally, check [Support] > [FAQ] on rekordbox.com. Sometimes, the problem may be caused by another component.
  • Page 83 Additional information Power  The unit doesn’t power up. • Connect the supplied USB cable correctly. (page 24) (page 55) • If there isn’t enough power from the connected PC/Mac, connect the other USB port of the PC/Mac. • If another USB device is connected to your PC/Mac, disconnect it. •...
  • Page 84 Additional information Others  Tracks aren’t displayed in the track list on rekordbox • Add music files to [Collection]. For details, see the rekordbox Operating Instructions. • Select [Collection] in the tree view. When selecting a playlist in the tree view, tracks in the playlist are displayed in the track list. ...
  • Page 85 Additional information  Even when you press the [KEY -] / [KEY +] button, the key doesn’t go down / up. • The amount to change the key should be within one octave from the original key of the track. You can’t change the key over one octave. ...

  • Page 86: Specifications

    Additional information Specifications General – Main Unit Power supply ................DC 5 V Rated current................500 mA Main unit weight.............. 1.5 kg (3.3 lb) Max. dimensions....333 mm (W) × 42 mm (H) × 235 mm (D) (13.1 in. (W) × 1.7 in. (H) × 9.3 in. (D)) Tolerable operating temperature........

  • Page 87: Using The Unit As A Controller For Other Dj Applications

    DJ application. • For details, see your DJ application’s user guide. About MIDI messages For details on this unit’s MIDI messages, see: “List of MIDI Messages”. • You can find the List of MIDI Messages from the Pioneer DJ website: pioneerdj.com/...

  • Page 88: About Trademarks And Registered Trademarks

    Additional information About trademarks and registered trademarks • Pioneer DJ is a trademark of PIONEER CORPORATION and is used under license. • rekordbox is a trademark or registered trademark of Pioneer DJ Corporation. • Serato DJ Pro is a registered trademark of Serato Limited.

  • Page 89: Cautions On Copyrights

    • When handling music downloaded from the Internet, etc., it is the full responsibility of the person who has downloaded the music to ensure that it is used in accordance with the contract concluded with the download site. © 2019 Pioneer DJ Corporation. All rights reserved. <DRI1634-A>...
