Chapter 1

5 Organic Material Mixers

When installing in a mixer it is important that the end wall scraper arm is adjusted to ensure that
the Ceramic Disc is kept clean to avoid material build up. A build-up of material on the end wall
will indicate that the scraper arm is not correctly adjusted and this will affect the sensor reading.
Twin Shaft
5.1
It is recommended that the Hydro-Mix HT should be located in the end wall between the two
shafts. The sensor should be located at a level lower than the shafts to maintain complete
coverage of the ceramic disc.
Single Shaft
5.2
Single shaft mixers should have the sensor installed in the end wall at 30° from the centre.
14 Hydro-Mix HT Mechanical Installation Guide HD0766 Rev 1.2.0

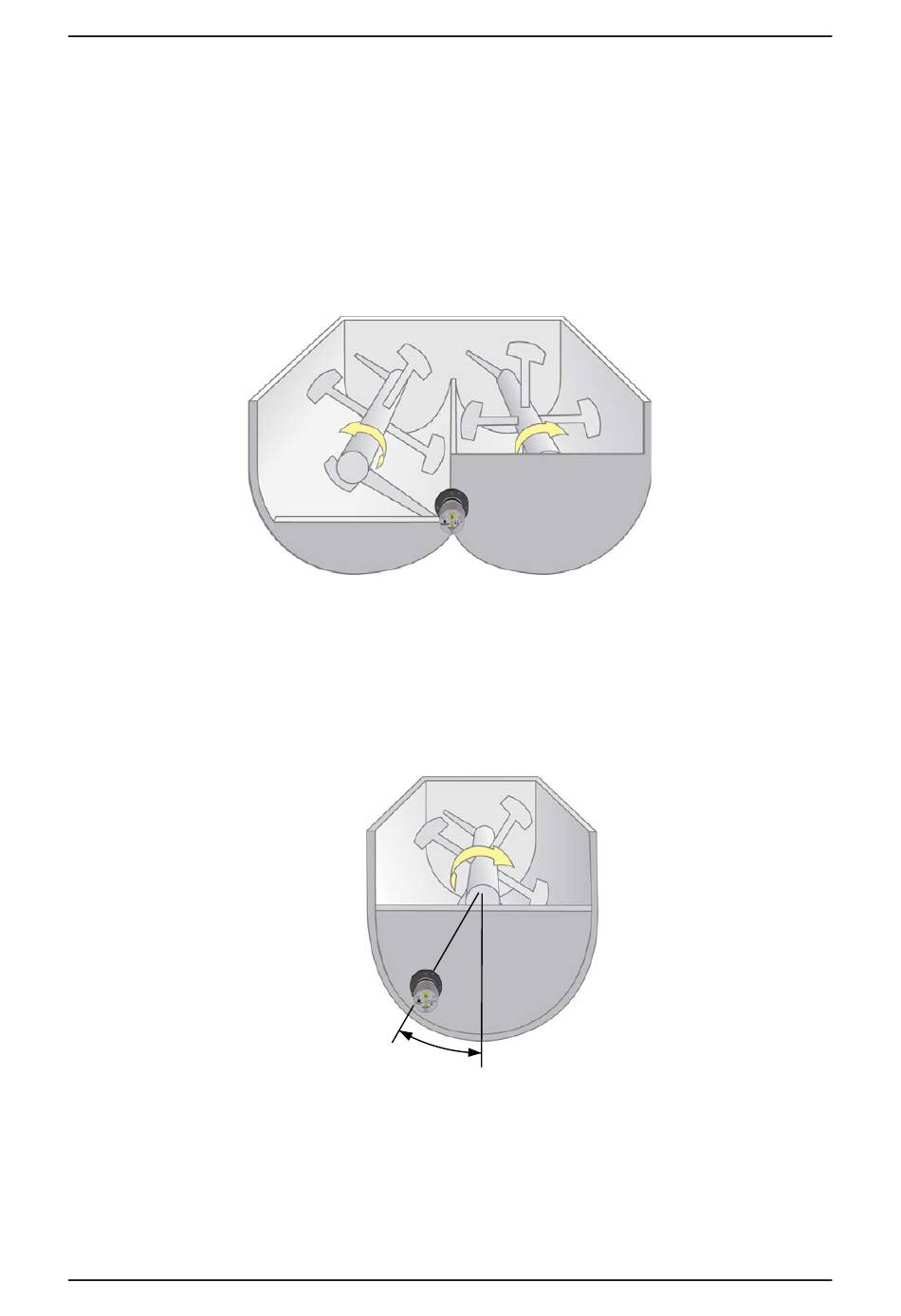

Figure 4: Twin Shaft Organic Mixer Installation

30.0°

Figure 5: Single Shaft Organic Mixer Installation
