Chapter 1
Ø 90.0mm
Ø 108.0mm
Available accessories:
Part No Description
4010 HMHT Fixing Plate (Supplied with sensor), Additional plates can be ordered
4020 HMHT Clamp Ring (Supplied with sensor). Additional clamps can be ordered
4030 HMHT Hydro-Mix Adapter
0975A 4m Sensor Cable
0975A-10m 10m Sensor Cable
0975A-25m 25m Sensor Cables
0116 Power Supply – 30 Watt for up to 4 sensors
0049A RS232/485 converter (DIN rail mounting)
0049B RS232/485 converter (9 pin D type to terminal block)
SIMXX USB Sensor Interface Module including cables and power supply
EAK01 Ethernet Adapter Kit including Power Supply
EPK01 Optional Ethernet Power Adapter Kit
DSAHTXX Ducting System Angled
DSVHTXX Ducting System Vertical
Hydro-Com configuration and diagnostics software is available for free to download from
www.hydronix.com
Ceramic Disc
(Sensing Area)
Cooling Fins
Packed Contents
Hydro-Mix HT Sensor
Fixing Plate
Clamp Ring
Spacer Plates (x2)
Recommended Accessories
0975A sensor Cable (4M)

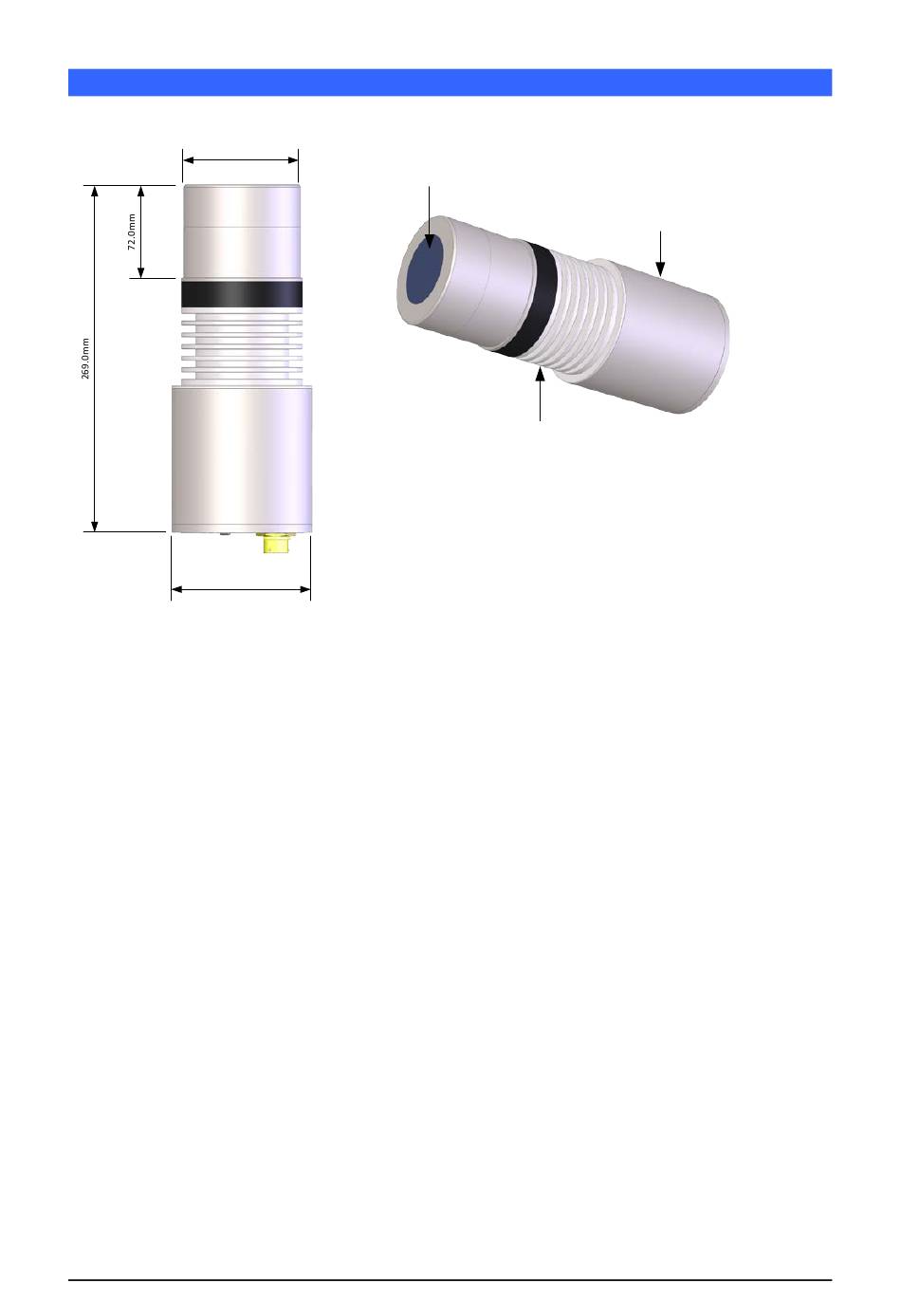

Figure 1: The Hydro-Mix HT

Hydro-Mix HT Mechanical Installation Guide HD0766 Rev 1.2.0 11
Hydro-Mix HT Installation
Hydro-Mix HT Body
(Electronics)
