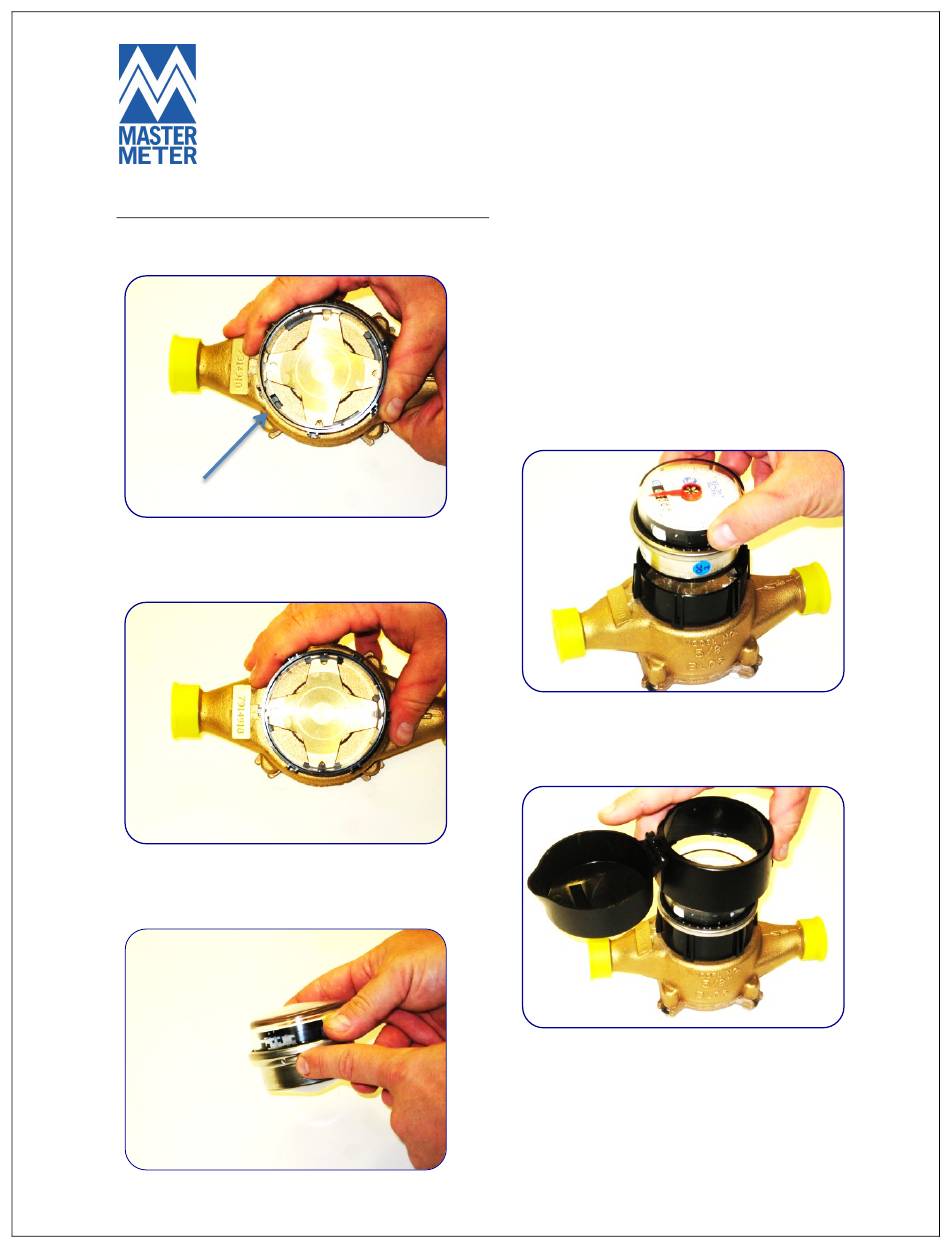

Master Meter Register Install & Remove page 3

Installing New Shroud and Register:
Step 1:
Starting position of twist on register shroud
NOTE: Short
tab aligns with
calibration
port side
(downstream)
Step 2:
Twist clockwise until mechanical stop.
* Final position shown.
Step 3:
Note locating indentations on register base each 90
degrees.
Step 4:
Place register in shroud in preferred orientation.
Ensure indentation on register engage with tabs
on shroud, preventing rotation.
PORT
SIDE
Step 5:
Place housing assembly onto the register
approximately 15 degrees shy of final position.
Page 3 of 4
