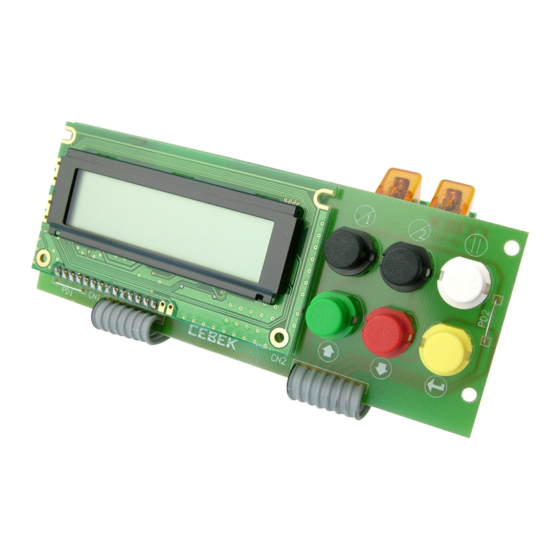

The I-210 is a PLC with 2 outlets. Each output can contain up to 120 program steps.
The steps can be configured with three states: output connected ',' exit off "and" exit as entry level. " The time step is
selectable from 0.5 sec. and 100 minutes.
Using the keyboard that incorporates a simple interface and viewable through the LCD of the circuit, the module will allow the
grouping and configuration steps outlined in chart form, the pattern of desired operation for each output.
Keeps in memory the programs carried out, even after power off.
Includes display relay status, LED connection indicators and terminals for wiring.
POWER SUPPLY.
The I-210 must be supplied with a voltage of 12 V. S.C. Adequately stabilized, so we suggest not using
simple power supply, adversely affecting circuit operation, but a power supply. We recommend the EF-2, which is well suited
to the needs of the module.
Install a fuse and a switch. Both are essential to protect the module for your own safety, as reflected in the CE standard.
Do not use the same power of I-210 to power other devices generating industrial parasites, such as relays, motors, coils, etc.
Queried the provision of the outputs of the source, positive and negative power to the input terminals indicated in the drawing.
Then, verify that installation was successful.
Fuse
250 mA
Switch
www.cebek.com
PROGRAMMABLE
SEQUENTIAL 2 outputs
TECHNICAL CHARACTERISTICS
Voltage. ........................................ 12 V.C.C.
Low energy. ................................ . 30 mA.
Maximum consumption. ................ 1125 mA.
Maximum load per output. ............. 5 A.
Number of outputs. ........................ 2
Number of programs per output............ 1
Max. Program. ............................................... 120 steps.
Selectable step Times. ........................ 0.5 sec. to 99 min. 59 sec.
Confirmation number of tickets or Paro. ........... 1 per output.
PC board measures. ....................................... 109 x 75 x 30 mm.
PC Board Visualization and Control. ....... 131 x 52 mm.
Module measures. ............................................ 131 x 90 x 52 mm
FE-2
-
sat@cebek.com
I-210
I-210
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CEBEK I-210
Summary of Contents for CEBEK I-210
- Page 1 Install a fuse and a switch. Both are essential to protect the module for your own safety, as reflected in the CE standard. Do not use the same power of I-210 to power other devices generating industrial parasites, such as relays, motors, coils, etc.
- Page 2 PROGRAMMING The I-210 is a PLC, a module which you can set a full schedule operation for each output. The circuit also thanks to its programming step by step, we will set up a flexible graphical performance. They usually present needs work on different devices, on which asynchronous operation is required and complex.
- Page 3 Step indicator To facilitate understanding of the programming of I-210, illustrate the description of this, the graphical programming operation of FIG. 1. Please follow the instructions indicated below. Press the Enter key and relay 1 "to enter the program relay. By accessing the programming screen the cursor is placed in the display of steps.
- Page 4 Moreover, Erasing the program. The I-210 supports the complete erasure of a program. To do this you must first access the program you want to delete (key Enter + No relay). Then, at any point in the program, go to the Sequence Indicator and select "From."...
- Page 5 CONNECTION OF OUTLETS. LOAD. The outputs of the I-210 is performed by relays, devices that support any type of load does not exceed 5 A. The relay has three output terminals. The rest normally open (NO), the Sleep normally closed...
- Page 6 I-210 GENERAL WIRING MAP. Entries confirmation Output 1 Output 2 Entry alimentation I-210 www.cebek.com sat@cebek.com...
