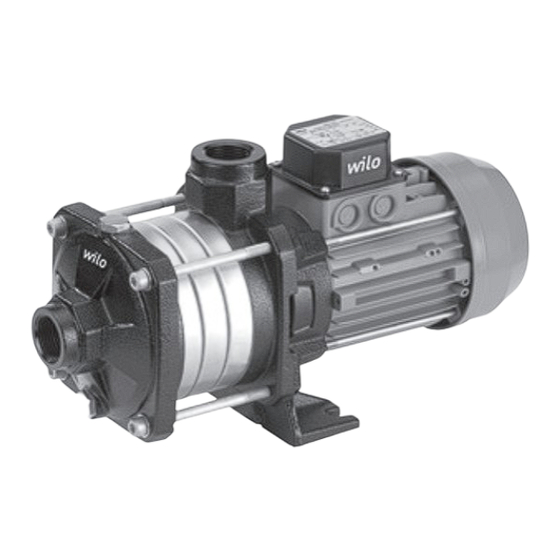

Wilo Economy MHIL Installation And Operating Instructions Manual

Wilo Economy MHIL Installation And Operating Instructions Manual

Advertisement

Quick Links

Pioneering for You
Wilo-Economy MHIL
de Einbau- und Betriebsanleitung
en Installation and operating instructions
fr
Notice de montage et de mise en service
4 088 957-Ed.05 /2016-08-Wilo
es
Instrucciones de instalación y funcionamiento
it
Istruzioni di montaggio, uso e manutenzione
ru
Инструкция по монтажу и эксплуатации

Advertisement

loading
Need help?

Need help?

Do you have a question about the Economy MHIL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Wilo Economy MHIL

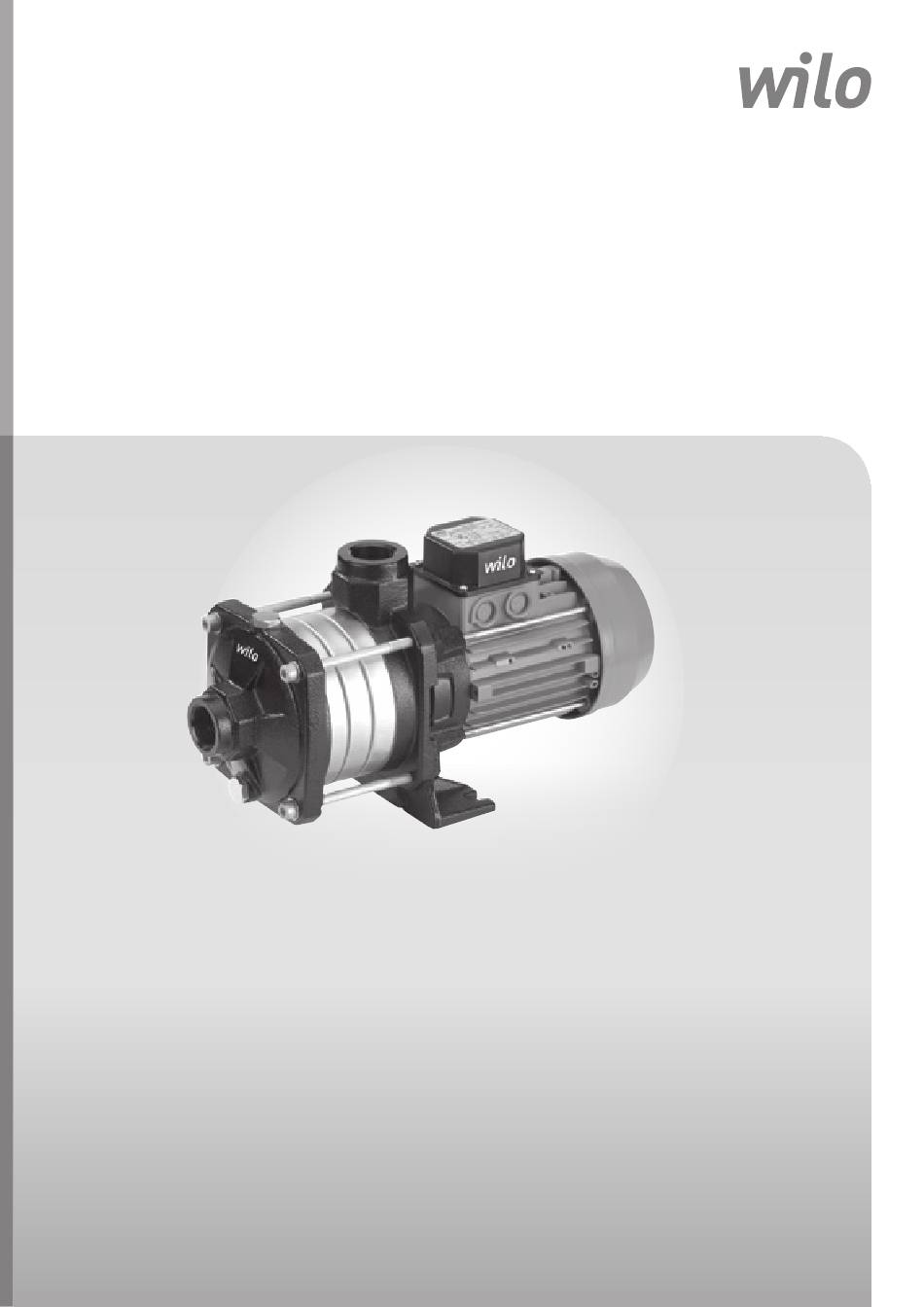

  • Page 1 Pioneering for You Wilo-Economy MHIL de Einbau- und Betriebsanleitung Instrucciones de instalación y funcionamiento en Installation and operating instructions Istruzioni di montaggio, uso e manutenzione Notice de montage et de mise en service Инструкция по монтажу и эксплуатации 4 088 957-Ed.05 /2016-08-Wilo...
  • Page 2 Fig. 1 Fig. 2...
  • Page 3 ∆ HIGH (VOLTAGE) LOW Fig. 3 Fig. 4...
  • Page 5 Flow rate (m (2-pole/ 50 Hz) Number of stages E = gaskets EPDM V = gaskets VITON 1 = single-phase motor 3 = three-phase motor Mains voltage (V) Frequency (Hz) 2 poles Manufacturer’s key IE3 motor WILO SE 04/2016...
  • Page 6: Safety Precautions

    – Check if the motor it complies with the mains supply used. top-heaviness. – The three-phase motor must be protected by a circuit-breaker set to WILO SE 04/2016...
  • Page 7 – Close the stopcock (which can be left in place), remove the pipe, and screw the filling plug back in. – Start the motor by pressing briefly, wait for 20’ to let air going up inside pump housing. WILO SE 04/2016...
  • Page 8 If the liquid is toxic, corrosive or dangerous for human being, heating specialist or WILO customer services. WILO must be informed or the qualified person in charge of the repairing. In this case, clean the pump to ensure o com- plete safety to the repairing man.
  • Page 9 Bevollmächtigter für die Zusammenstellung der technischen Unterlagen ist: Quality Manager - PBU Multistage Person authorized to compile the technical file is : WILO SALMSON FRANCE SAS Personne autorisée à constituer le dossier technique est : 80 Bd de l'Industrie - CS 90527...
  • Page 10 EC DEARBHÚ COMHLÍONTA WILO SE vakuuttaa, että tässä vakuutuksessa kuvatut tuotteet ovat WILO SE ndearbhaíonn an cur síos ar na táirgí atá i ráiteas seo, siad i seuraavien eurooppalaisten direktiivien määräysten sekä niihin gcomhréir leis na forálacha atá sna treoracha seo a leanas na hEorpa agus sovellettavien kansallisten lakiasetusten mukaisia: leis na dlíthe náisiúnta is infheidhme orthu:...
  • Page 11 (SV) - Svenska ES-IZJAVA O SKLADNOSTI EG-FÖRSÄKRAN OM ÖVERENSSTÄMMELSE WILO SE izjavlja, da so izdelki, navedeni v tej izjavi, v skladu z določili WILO SE intygar att materialet som beskrivs i följande intyg naslednjih evropskih direktiv in z nacionalnimi zakonodajami, ki jih överensstämmer med bestämmelserna i följande europeiska direktiv och...
  • Page 14 Burton Upon Trent WILO­Pumps­Ltd.­ Portugal­Lda. 28806­Alcalá­de­Henares­ WILO­Vietnam­Co­Ltd. 618-220­Gangseo,­Busan 4050-040 Porto (Madrid) T +55 11 2923 (WILO) DE14 2WJ Ho­Chi­Minh­City,­Vietnam T +34 91 8797100 9456 T +44 1283 523000 T +82 51 950 8000 T +351 22 2080350 T +84 8 38109975 wilo@wilo-brasil.com.br...
  • Page 15 WILO SE Nortkirchenstraße 100 D-44263 Dortmund Germany T +49(0)231 4102-0 F +49(0)231 4102-7363 wilo@wilo.com Pioneering for You www.wilo.com...
