Curtiss-Wright GT200 Hardware Reference Manual

Pci and pmc cards
Hide thumbs Also See for GT200:
Table of Contents

Advertisement

Quick Links

Download this manual

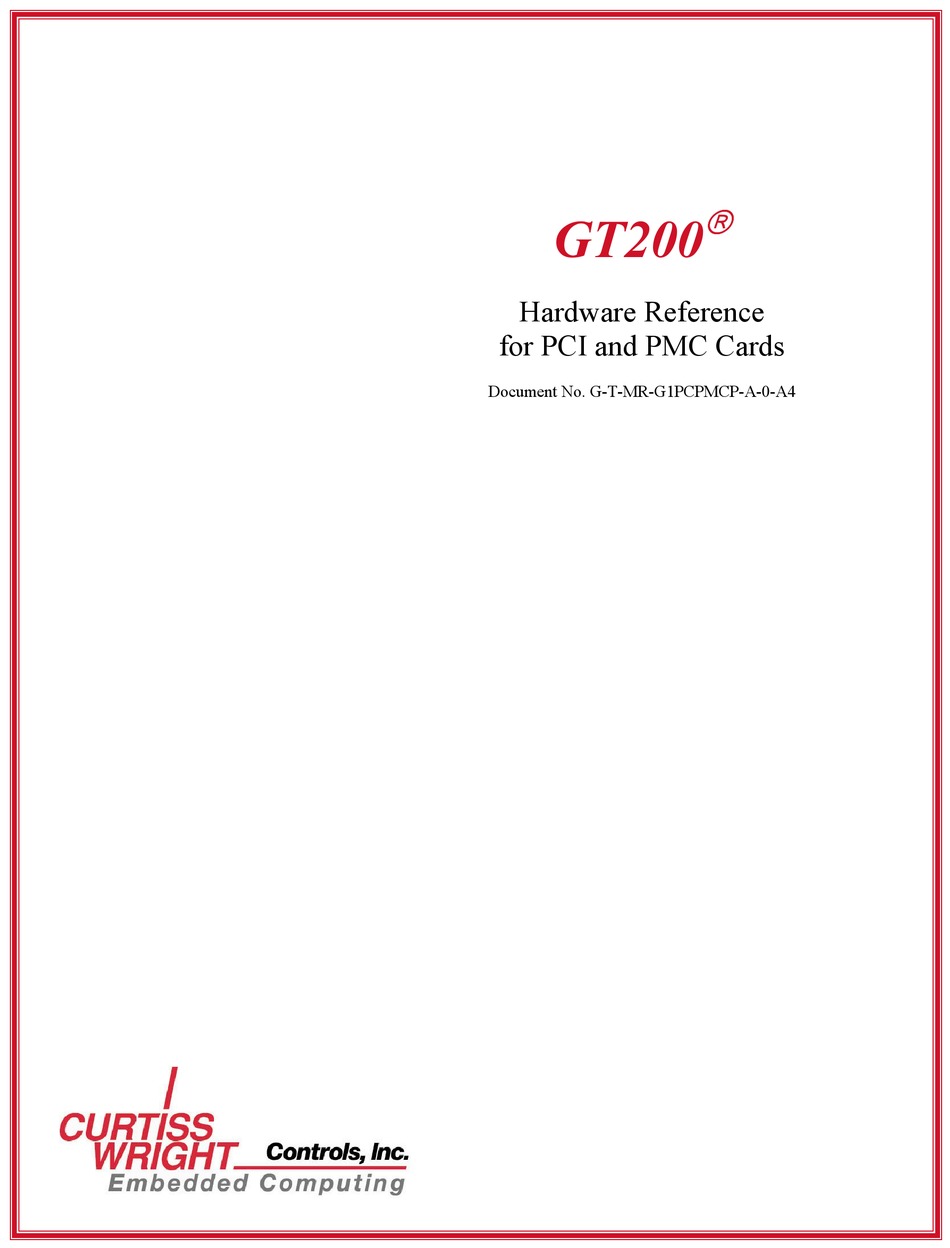

GT200
Hardware Reference
for PCI and PMC Cards
Document No. G-T-MR-G1PCPMCP-A-0-A4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT200 and is the answer not in the manual?

Questions and answers

Related Manuals for Curtiss-Wright GT200

Summary of Contents for Curtiss-Wright GT200

  • Page 1  GT200 Hardware Reference for PCI and PMC Cards Document No. G-T-MR-G1PCPMCP-A-0-A4...
  • Page 3 Curtiss-Wright Controls, Inc. reserves the right to make changes without notice. Curtiss-Wright Controls, Inc. makes no warranty of any kind with regard to this printed material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.
  • Page 4 This product is intended for use in industrial, laboratory, or military environments. This product uses and emits electromagnetic radiation, which may interfere with other radio and communication devices. The user may be in violation of FCC regulations if this device is used in other than the intended market environments.

  • Page 5: Table Of Contents

    3. INSTALLATION............................3-1 3.1 Overview ..........................3-1 3.2 Unpack the Card........................3-1 3.3 Inspect the Card........................3-1 3.4 Configure the GT200 Card ....................... 3-2 3.4.1 Installing SFP Modules..................3-2 3.5 Install the Cards........................3-3 3.5.1 GT200 PCI Card....................3-3 3.5.2 GT200 PMC Card....................3-4 3.6 Connect the Fiber Optic Cables....................
  • Page 6 4.2.17.2 TX Enable ..................4-6 4.2.17.3 RX Enable..................4-6 4.2.17.4 RT Enable ..................4-6 4.2.17.5 Interrupt Self ..................4-7 4.3 GT200 Block Diagram ......................4-8 4.3.1 Network Logic....................... 4-8 4.3.2 Host Logic ......................4-8 4.4 Host Hardware.......................... 4-9 4.4.1 Target Interface...................... 4-9 4.4.1.1 Control plane..................
  • Page 7 Figure 2-6 GT200 PMC Faceplate ......................... 2-5 Figure 2-7 Switch Ring ..........................2-9 Figure 2-8 Redundant Switch Ring ......................2-10 Figure 3-1 GT200 PCI Card Installation ......................3-3 Figure 3-2 GT200 PMC Card Installation...................... 3-4 Figure 3-3 Fiber-optic Simplex LC Connector....................3-5 Figure 3-4 Fiber-optic Duplex LC Connector ....................
  • Page 8 TABLE OF CONTENTS This page intentionally left blank Copyright 2005 GT200 Hardware Reference...

  • Page 9: Introduction

    1.1 How To Use This Manual 1.1.1 Purpose This document is a reference manual for the GT200 PCI and PMC card host interface. It provides a physical and functional description of the GT200 network interface card. The manual describes how to unpack, set up, install, and operate the hardware.

  • Page 10: Quality Assurance

    INTRODUCTION 1.3 Quality Assurance Curtiss-Wright Controls’ Corporate policy is to provide our customers with the highest quality products and services. In addition to the physical product, the company provides documentation, sales and marketing support, hardware and software technical support, and timely product delivery. Our quality commitment begins with product concept, and continues after receipt of the purchased product.

  • Page 11: Technical Support

    World Wide Web address: www.cwcembedded.com 1.5 Ordering Process To learn more about Curtiss-Wright Controls’ products or to place an order, please use the following contact information. Hours of operation are from 8:00 a.m. to 5:00 p.m. Eastern Standard/Daylight Time. •...

  • Page 13: Product Overview

    CAUTION: Check with the host computer manufacturer to find out which slots are available for third party PCI memory cards before installing the GT200 Network board into any system. Installing any type of PCI card in a non-standard PCI slot may result in serious damage to the host machine.

  • Page 14: Card Features

    PRODUCT OVERVIEW 2.3 Card Features Curtiss-Wright Controls’ GT200 family of products includes PCI and PCI Mezzanine (PMC) form factor cards. The PCI and PMC versions provide a host link via the PCI bus. The PCI bus is used in most standard PCs, and the PMC format is used in most popular single-board computers.

  • Page 15: Gt200 Pci Features

    PRODUCT OVERVIEW 2.3.2 GT200 PCI Features The major GT200 PCI card features are listed below: • PCI Short form factor requiring one single slot in the computer chassis • Bus support for 33 MHz/66 MHz PCI operation for 32/64 bit buses •...

  • Page 16: Sfp Media Options

    Two basic SFP media options are available for the GT200. These media options are a long wavelength laser (1300 nm) and short wavelength laser (850 nm). All cards use a Duplex LC style connector available from most major cable manufacturers.

  • Page 17: Firmware Dependencies

    Technical Support for more information. 2.3.7 LED Descriptions Three sets of status LEDs are visible from the front panel of the GT200 board. The position of the LEDs is shown in Figure 2-5 for PCI and Figure 2-6 for PMC.

  • Page 18: Topologies

    PRODUCT OVERVIEW 2.4 Topologies There are various topologies for the GT200 card. The following topologies should cover most customer applications. If another topology is desired contact Curtiss-Wright Controls, Inc. Technical Support to see if it is possible. The topologies are:...

  • Page 19: Point-To-Point

    The monitoring node can be used to watch the status of the ring and check the ring’s health. 2.4.6 VLX2500 Physical Layer Switch Curtiss-Wright Controls’ VLX2500 Physical Layer Switch provides the following features: •...

  • Page 20: Linkxchange Glx4000 Physical Layer Switch

    Automatic fan speed control based on enclosure temperature. • Fan tachometer monitor. For detailed information regarding the GLX4000 features and operation, contact Curtiss-Wright Controls, Inc. and request a copy of the GLX4000 Physical Layer Switch Hardware Reference Manual or visit our web site. Copyright 2005 GT200...

  • Page 21: Switch Ring

    Control Station 3 Control Station 4 Figure 2-7 Switch Ring Any node can be the initiating node. Any data write by the host to the GT200 memory triggers a message to all nodes to replicate the new data. Copyright 2005...

  • Page 22: Redundant Switch Ring

    Data flow can be preserved if the fiber or even one of the switches fails. Control Station 1 Control Station 2 GT200 GT200 GT200 GT200 Transceiver 2...

  • Page 23: Installation

    Any optional equipment is shipped in separate cartons. 3.3 Inspect the Card The GT200 card consists of a single card with a built-in network interface. If the card was damaged in shipping, notify Curtiss-Wright Controls, Inc. or your supplier immediately.

  • Page 24: Configure The Gt200 Card

    To insert an SFP module, hold the module with the PCB cutout facing downward toward the GT200 card and slide it into the receptacle cage on the card. There will be a small click as the module latches into place. The SFP module is designed to only fit into the receptacle cage a certain way.

  • Page 25: Install The Cards

    3.5.1 GT200 PCI Card To install the GT200 PCI card, push the card into the motherboard, as shown in Figure 3-1, steps 1 and 2, until it is firmly seated. Install the mounting screw as shown in step 3.

  • Page 26: Gt200 Pmc Card

    INSTALLATION 3.5.2 GT200 PMC Card To install the GT200 PMC card into an available carrier slot, insert the faceplate into the carrier front panel cutout until it butts up against the mating connector, as shown in Figure 3-2, steps 1 and 2. Then firmly push the connectors together as shown in step 3.

  • Page 27: Connect The Fiber Optic Cables

    Replace these rubber boots when cables are not in use or if the node must be returned to the factory. Attach the fiber-optic cables to the connectors on the GT200 card. Figure 3-3 and Figure 3-4 depict the types of fiber-optic connectors needed for the GT200 card.

  • Page 28: Troubleshooting

    If the system does not boot correctly, power down the machine, reseat the card, double- check cable connections, and turn the system back on. If problems persist, contact Curtiss-Wright Controls, Inc. Technical Support at (800) 252-5601 or DTN_support@curtisswright.com for assistance.

  • Page 29: Operation

    4. OPERATION 4.1 Overview The GT200 Network is a shared-memory system. Every computer on the network has a local copy of all global data, which is passed to all the network computers anytime a write occurs. The network protocol is implemented in the GT200 hardware and therefore no software overhead is required to retrieve this information from the network.

  • Page 30: Ring Topology

    OPERATION 4.2.2 Ring Topology The GT200 Network is a ring topology network. The ring topology supports circuit- switch operation for topology reconfiguration and fault isolation. Ring protocol is register insertion with source message removal. Data is transmitted at a maximum of 2.5 Gbps over fiber-optic cables. There is an approximate 0.4µs (minimum) latency at each node as the frame works its way around...

  • Page 31: Interface Standards

    The maximum fiber length supported is 10 km based on the ring size, media used, and status messaging. 4.2.5 Interface Standards The GT200 interface is a proprietary interface running at 2.5Gbps. The interface uses both 8B/10B encoding and CRC32 error checking. 4.2.6 Network Framing Frame types include: •...

  • Page 32: Latency

    When performing a transfer of user buffer to/from network memory, the driver works in conjunction with the operating system and the GT200, and may break the user buffer into multiple DMA transfers. This is a result of paging, physical memory requirements, and the need to have a contiguous memory region for the DMA descriptors.

  • Page 33: Receive Fifo

    While each node can enable reception of the unicast interrupts, reception cannot be restricted to interrupts from particular source node IDs Rather, enabling unicast interrupts allows an interrupt on reception of a unicast network Copyright 2005 GT200 Hardware Reference...

  • Page 34: Modes Of Operation

    SW function) or via an interrupt flag (separate chain entry) on DMA write operations. The HBI and HUI events are stored in a queue located on the GT200 card. HBI and HUI events are stored in the order of reception. The receiving node saves the source node ID, interrupt vector, and interrupt type (broadcast with interrupt level or unicast).

  • Page 35: Interrupt Self

    Link Receiver Enable Enable Wrap Wrap Receiver 1 Link Laser 0 Link Select Receiver 0 Retransmit Enable Receive Foreign Enable MEMORY Native Write Me Last Transmit Enable Host Data In Figure 4-2 Configuration Switch Diagram Copyright 2005 GT200 Hardware Reference...

  • Page 36: Gt200 Block Diagram

    RC_CTRL TXM_FIFO TX_CTRL TXN_FIFO RW_FIFO Figure 4-3 GT200 Block Diagram 4.3.1 Network Logic XVCR ........SFP 2.5 Gbps fiber optic transceiver. RX_CTRL........Receive control logic. Decodes receive framing protocol RT_FIFO........Retransmit FIFO. Buffers retransmitted link data TXN_FIFO.........Transmit to Network FIFO. Buffers network transmit data TX_CTRL........Transmit control logic.

  • Page 37: Host Hardware

    Many users are still using older PCI-based machines that only support 5-volt PCI signaling voltages. By installing a GT200 PMC board onto the 5-volt PCI to PMC adapter the user now has a 5-volt signaling PCI board that can be used in older legacy systems.

  • Page 38: Counter/Timers

    Host Interrupt counter • Link Error counter • Link Down counter • Decoder Error counter • Synchronization Error counter • CRC Error counter • EOF Error counter • Protocol Error counter • RX FIFO Error counter Copyright 2005 4-10 GT200 Hardware Reference...
  • Page 39 A.2.1 Fiber-Optic Media Interface Specifications............A-4 A.3 PCI Configuration Space......................A-5 A.4 Part Number Ordering Information ..................A-6 A.4.1 66 MHZ GT200 PMC Ordering Information ............A-6 A.4.2 66 MHz 3.3-Volt GT200 PCI Ordering Information..........A-6 A.4.3 GT200 5-Volt, 66 MHz, PCI Ordering Information..........A-6 A.4.4 Short Wavelength: Multimode Fiber-Optic Cables ..........A-7...

  • Page 41: Hardware Specific

    GT200, No Media................. 268,138 hours GT200, 850 nm Short Wave Pluggable Transceiver..... 253,974 hours GT200 , 850 nm (x2) Short Wave Pluggable Transceiver .... 241,230 hours GT200, (x1) 850 & 1300nm (x1) Pluggable Transceivers.... 233,241 hours GT200, 1300 nm Long Wave Pluggable Transceiver ....245,133 hours GT200, 1300 nm (x2) Long Wave Pluggable Transceiver ...

  • Page 42: Gt200 3.3-Volt Pmc Specifications

    GT200, 850 nm Short Wave Pluggable Transceiver ....254,363 hours GT200, 850 nm (x2) Short Wave Pluggable Transceiver..... 241,581 hours GT200, (x1) 850 & 1300 nm (x1) Pluggable Transceivers ..233,569 hours GT200, 1300 nm Long Wave Pluggable Transceiver....245,496 hours GT200, 1300 nm (x2) Long Wave Pluggable Transceiver ..

  • Page 43: Gt200 5-Volt Pci Specifications

    GT200, No Media................. 218,909 hours GT200, 850 nm Short Wave Pluggable Transceiver..... 209,376 hours GT200, 850 nm (x2) Short Wave Pluggable Transceiver ..... 200,637 hours GT200, (x1) 850 & 1300nm (x1) Pluggable Transceivers.... 195,080 hours GT200, 1300 nm Long Wave Pluggable Transceiver ....203,330 hours GT200, 1300 nm (x2) Long Wave Pluggable Transceiver ...

  • Page 44: Media Interface Specifications

    Media........9 µm single-mode fiber Maximum Fiber Length: ..10 km Transmit Wavelength: ..1285 to 1330 nm Transmit Power: ....-9.5 to 0 dBm Receive Wavelength:... 1100 to 1600 nm Receive Sensitivity: -19 to -3 dBm Copyright 2005 GT200 Hardware Reference...

  • Page 45: Pci Configuration Space

    SPECIFICATIONS A.3 PCI Configuration Space Vendor ID: 0x1387 (Curtiss-Wright Controls, Inc.) Device ID: 0x5310 (GT200) SubVendor ID: 0x1387 (Curtiss-Wright Controls, Inc.) Subsystem Device ID: 0x5310 (GT200) Base Class Code: 0x02 (Network Controller) Sub-Class Code: 0x80 (Other network Controller) Register-level Programmable Interface: 0x00 (non-defined for this base class)

  • Page 46: Part Number Ordering Information

    5-Volt PCI, GT200, 850 nm Short Wave Pluggable Transceiver H- AS-GC5128SC-22 5-Volt PCI, GT200, 850 nm Short Wave Pluggable Transceiver (x2) H- AS-GC5128SC-23 5-Volt PCI, GT200, (x1) 850 & 1300 nm (x1) Pluggable Transceivers H- AS-GC5128SC-30 5-Volt PCI, GT200, 1300 nm Long Wave Pluggable Transceiver H- AS-GC5128SC-33...

  • Page 47: Short Wavelength: Multimode Fiber-Optic Cables

    Cable End 1 Cable End 2 Part Number Part Number FHAC-M1SCLC01-00 FHAC-M2SCLC01-00 1 meter FHAC-M1SCLC03-00 FHAC-M2SCLC03-00 3 meters FHAC-M1SCLC05-00 FHAC-M2SCLC05-00 5 meters FHAC-M1SCLC10-00 FHAC-M2SCLC10-00 10 meters FHAC-M1SCLC20-00 FHAC-M2SCLC20-00 20 meters FHAC-M1SCLC30-00 FHAC-M2SCLC30-00 30 meters FHAC-M1SCLCxx-00 FHAC-M2SCLCxx-00 Custom Copyright 2005 GT200 Hardware Reference...

  • Page 48: Long Wavelength: Single-Mode Fiber-Optic Cables

    Cable End Cable End 2 Part Number Part Number FHAC-S1SCLC01-00 FHAC-S2SCLC01-00 1 meter FHAC-S1SCLC03-00 FHAC-S2SCLC03-00 3 meters FHAC-S1SCLC05-00 FHAC-S2SCLC05-00 5 meters FHAC-S1SCLC10-00 FHAC-S2SCLC10-00 10 meters FHAC-S1SCLC20-00 FHAC-S2SCLC20-00 20 meters FHAC-S1SCLC30-00 FHAC-S2SCLC30-00 30 meters FHAC-S1SCLCxx-00 FHAC-S2SCLCxx-00 Custom Copyright 2005 GT200 Hardware Reference...
  • Page 49 B B – COUNTER/TIMER DEFINITIONS APPENDIX B COUNTER/TIMER DEFINITIONS...
  • Page 51 CRC error, EOF error, protocol error, RXF error, and transition of link down). LNK_DOWN_CNTR Link Down counter. This counter is incremented on transition of a link down. DEC_ERR_CNTR Decoder Error counter. This counter is incremented on every 8b/10b decoding error. Copyright 2005 GT200 Hardware Reference...
  • Page 52 EOF Error counter. This counter is incremented on every end-of-frame error. PRTCL_ERR_CNTR Protocol Error counter. This counter is incremented on every protocol error. RXF_ERR_CNTR RX FIFO Error counter. This counter is incremented on every RX FIFO error. Copyright 2005 GT200 Hardware Reference...
  • Page 53 1. GLOSSARY GLOSSARY...
  • Page 55 An organized finite stream of data moving through a network that includes pertinent and overhead transmission control and management data. Frames are dynamically sized from 4 to 128 bytes. HBI---------------------------------- Host Broadcast Interrupt HUI---------------------------------- Host Unicast Interrupt Copyright 2005 GLOSSARY-1 GT200 Hardware Reference...
  • Page 56 A message that is received by the node of origin. pass-through latency -------------- The time required for a GT200 card to process an incoming frame and retransmit it on the network. point-to-point topology----------- A network topology in which one node connects directly to another node.
  • Page 57 SFP ---------------------------------- Small form factor pluggable transceiver. shared memory (SM) ------------- GT200 memory physically located on the network board. This dual- ported memory is accessible by the host and the network. A host write to shared memory results in a transmitted write to all GT200 nodes at the same relative location.
  • Page 58 GLOSSARY This page intentionally left blank Copyright 2005 GLOSSARY-4 GT200 Hardware Reference...
  • Page 59 INDEX...
  • Page 61 1-3, 1-1, 2-1, 2-3, 2-10, 3-1, 4-1, 4-2, 4-3, singlemode.............A-8 4-4, 4-5, 4-6, 4-7, 4-8, 4-9, 4-10 FIFO buffer............4-4 node ..............3-5 receive.............4-5 non-blocking switch ...........2-7 foreign message packet....... 4-4, 4-5 non-volatile SRAM ..........2-8 Frames ..............4-3 Copyright 2005 INDEX 1 GT200 Hardware Reference...
  • Page 62 ..........A-4 receptacle cage............3-2 topology ............2-6, 3-5 receptacles transmit wavelength .......... A-4 empty ..............3-2 retimed port ............2-7 retransmitted ............4-2 unpack ..............3-1 ring topology ............4-2 RS-232 port ............2-8 watchdog timer ...........2-8 write-me-last mode..........4-6 Copyright 2005 INDEX 2 GT200 Hardware Reference...
