4 Connection

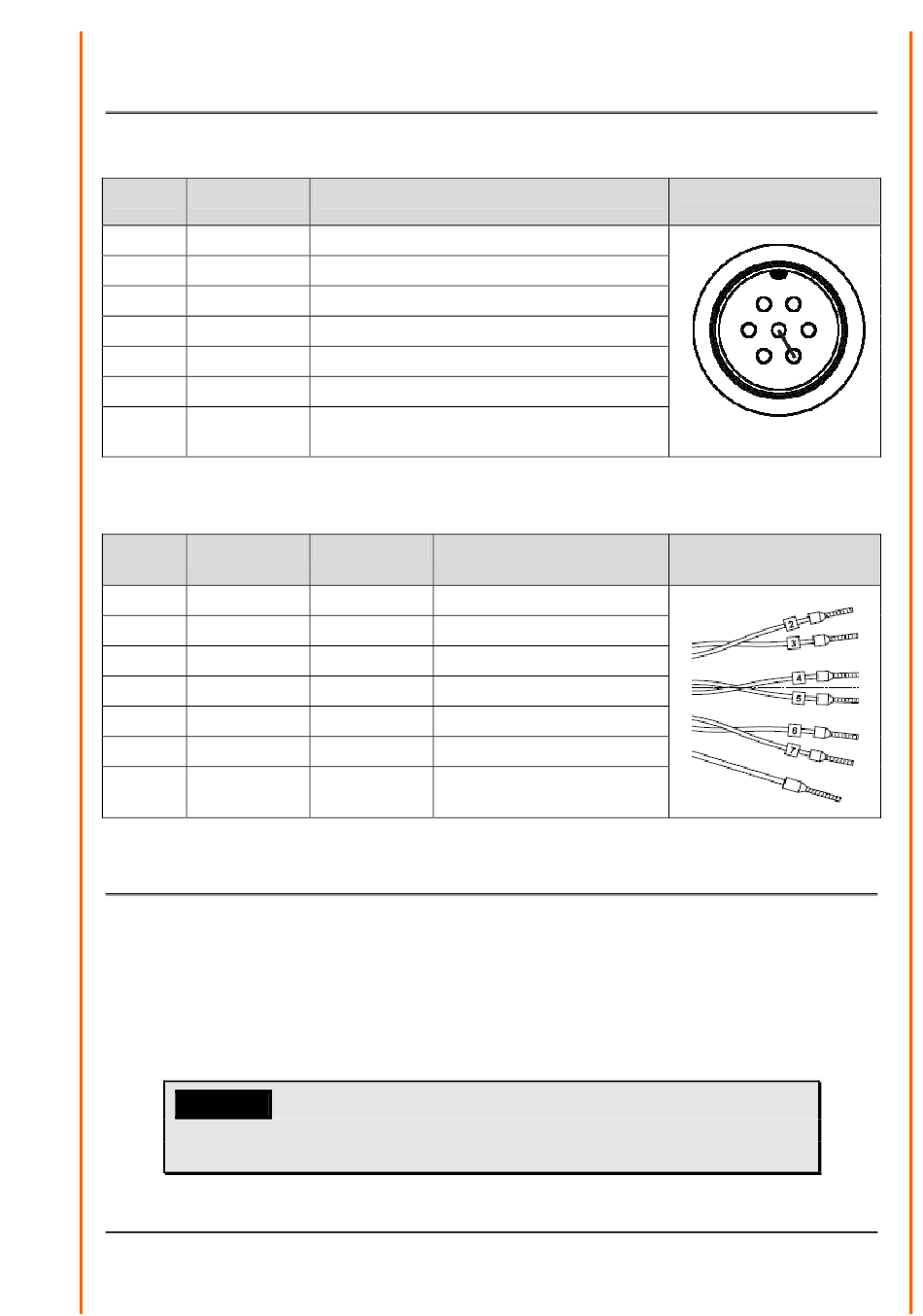

4.1 Connector Pin Assignment

Pin Description
1 reserved
2 D0/A/Data+
3 D1/B/Data-
4 Vcc
5 GND
6 reserved
7 Termination

4.2 Cable Assignment

Code Lead color
ring
2 Brown
3 Black
4 Red
5 Black
6 Orange
7 Black
-- Green/yellow

5 Maintenance

The Hygro-Thermo Transmitter is supplied already adjusted and its characteristics remain stable for
years.
Dust does not damage the humidity sensor but does influence the dynamic behaviour negatively. If
the instrument is very dirty, the sensor element can be cleaned or carefully rinsed in distilled water.
Make sure you do not touch the highly-sensitive sensor element.
Before cleaning the sensor elements please remove the protecting filter; it should be cleaned, as
well or should be replaced.
Attention:
The instrument housing with the electronics included should
be opened only in the factory.
Function
MODBUS RS485 Data+
MODBUS RS485 Data-
Supply voltage +
Supply voltage 0V
Termination active, when Pin 3 and Pin 7
connected
Description Function
D0/A/Data+ MODBUS RS485 Data+
D1/B/Data- MODBUS RS485 Data-
Vcc Supply voltage +
GND Supply voltage 0V
D0/A/Data+ MODBUS RS485 Data+
D1/B/Data- MODBUS RS485 Data-
shield
5 - 14
Postion of connections
at the sensor
6 1
5 2
4 3
Lead color marking
020727/08/13
