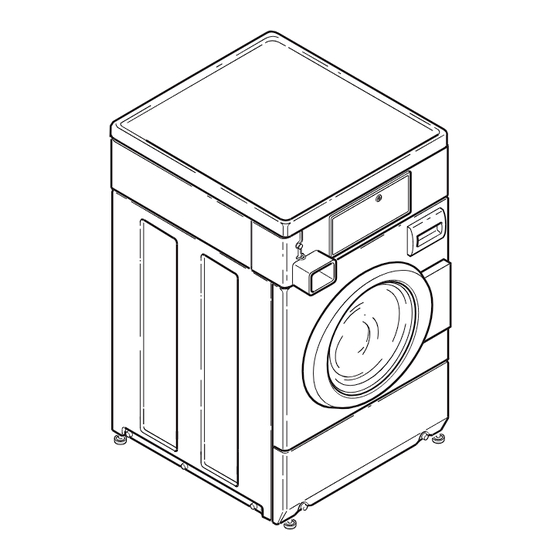

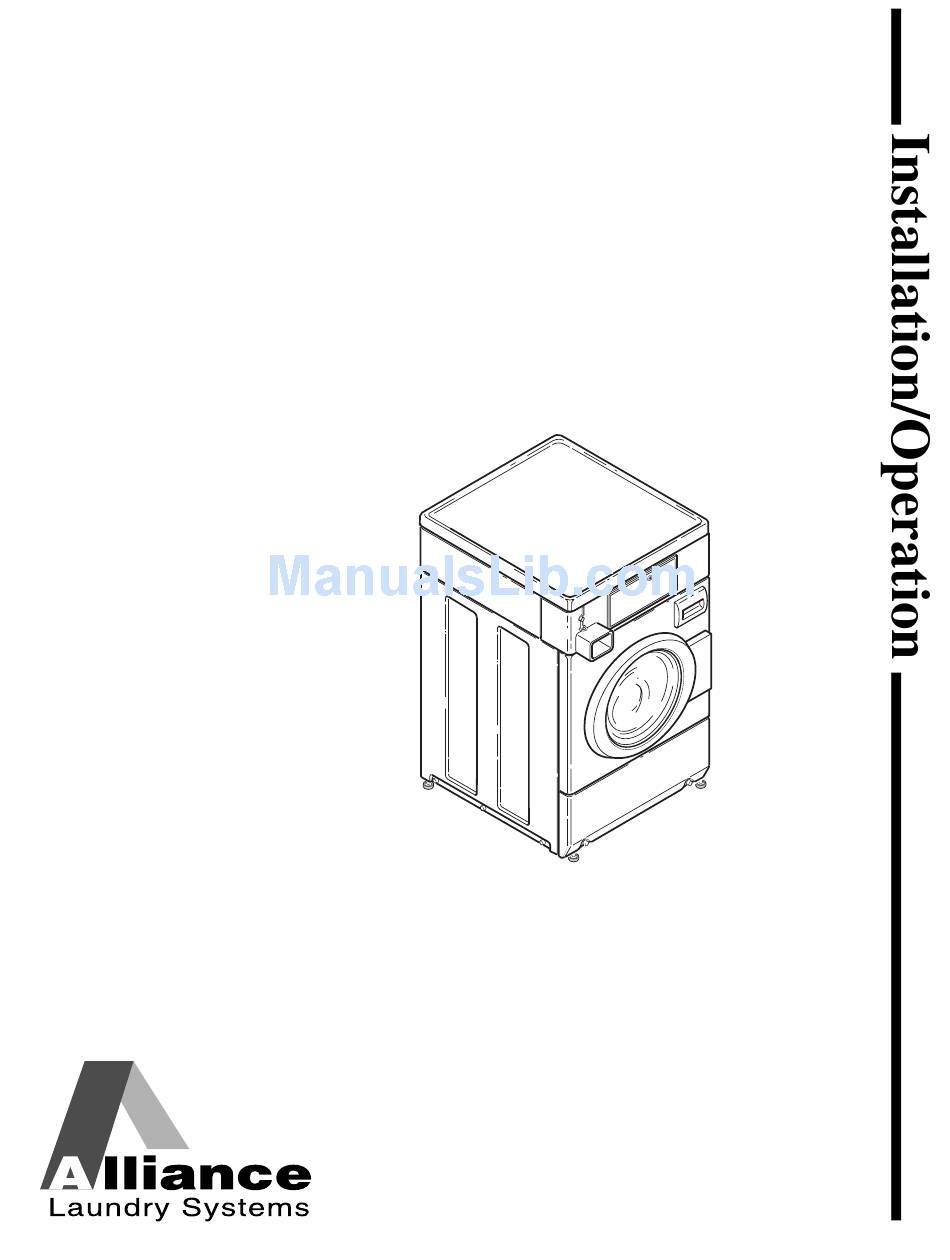

- Page 1 Frontload Washers Para bajar una copia de estas instrucciones en español, visite www.comlaundry.com. Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Metered Commercial www.comlaundry.com FLW1525C Part No. 802733R3 May 2008...
- Page 3 These factors MUST BE supplied by the person(s) installing, maintaining, or operating the washer. Always contact the distributor, service agent, or the manufacturer about any problems or conditions you do not understand.
-
Page 4: Table Of Contents
Step 4: (Gravity Drain Models Only) Connect Drain Outlet to Drain System ... 11 Step 5: Position and Level the Washer ... 12 Step 6: Remove the Shock Sleeves and Shipping Brace ... 13 Step 7: Wipe Out Inside of Wash Drum ... 13 Step 8: (Supply Injection Models Only) Connect External Supplies to Washer ... - Page 5 802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Vacations and Extended Non-Use ... 25 Reinstallation of Shipping Materials ... 26 Cleaning Foreign Object Trap ... 26 Troubleshooting ... 27 Contact Information... 29 Installer Checklist ... Back Cover...
-
Page 6: Safety Information
6. Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. This is a safety rule for all appliances. - Page 7 11. Do not repair or replace any part of the washer, or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out. 12. To reduce the risk of an electric shock or fire, DO NOT use an extension cord or an adapter to connect the washer to the electrical power source.
-
Page 8: Installation
Dimensions and Specifications 2 in. (5.1 cm) 24 in. (61.0 cm) 13.1 in. (33.3 cm) 28 in. (71.1 cm) 1.5 in. (3.8 cm) 2 in. (5.1 cm) 24 in. (61.0 cm) 13.1 in. (33.3 cm) 28 in. (71.1 cm) 1.5 in. (3.8 cm) 1.5 in. -
Page 9: Before You Start
NOTE: An 8 in. (20.32 cm) coin drawer is required for coin operated models. NOTE: If the washer is delivered on a cold day (below freezing), or is stored in an unheated room or area during the cold months, do not attempt to operate it until the washer has had a chance to warm up. -
Page 10: Installing The Washer
Installing the Washer Step 1: Position Washer Near Installation Area Move washer so that it is within 4 feet (1.2 meters) of the desired area of installation. NOTE: For best performance and to minimize vibration or movement, install washer on a solid, sturdy and level floor. -
Page 11: Connecting Hoses
Insert each plain rubber washer into the other end of each fill hose that will connect to the water mixing valve at the rear of the washer. Refer to Figure 3. Thread hose couplings onto valve connections finger- tight, then approximately 1/4 turn with pliers. -
Page 12: Step 3: (Non-Gravity Drain Models Only) Connect Drain Hose To Drain Receptacle
Connect Drain Hose to Drain Receptacle Remove the drain hose from its shipping position on the rear of the washer by removing the shipping tape. IMPORTANT: Drain receptacle must be capable of handling a minimum of 1-3/8 inch (3.5 cm) outside diameter drain hose. -
Page 13: Step 4: (Gravity Drain Models Only) Connect Drain Outlet To Drain System
Standpipe Installation Place the drain hose into the standpipe. Remove the beaded tie-down strap from accessories bag and place around standpipe and drain hose and tighten strap to hold hose to standpipe. Refer to Figure 7. This will prevent the drain hose from dislodging from drain receptacle during use. -
Page 14: Step 5: Position And Level The Washer
Place a level on the cabinet top and check if the washer is level from side to side and front to back. NOTE: Level must rest on raised portion of top panel. -
Page 15: Step 6: Remove The Shock Sleeves And Shipping Brace
Remove the five bolts and lockwashers from shipping brace with 9/16 in. wrench and remove brace. Refer to Figure 10. Four bolts are located on the washer base and one is holding the brace to the weight. Remove all four shock sleeves by pulling on the yellow rope. -
Page 16: Control Function Test
Any injection system pump which requires 110 VAC must be powered by a separate external power source. Control Function Test The washer should be cleaned after the installation is complete. A function test should then be executed on the unloaded machine: FLW2116N 1. -
Page 17: Step 9: Plug In The Washer
DO NOT operate other appliances on the same ● circuit. Use separately fused 15 Amp circuits. The washer is designed to be operated on a separate branch, polarized, three-wire, effectively grounded, 120 Volt, 60 Hertz, AC (alternating current), circuit protected by a 15 ampere fuse, equivalent fusetron or circuit breaker. -
Page 18: Step 10: Check Installation
DO NOT modify the plug provided with the washer – if it will not fit the outlet, have a proper outlet installed by a qualified electrician. -
Page 19: Operation
802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Operation Step 2: Close Loading Door Close loading door tightly. The washer will not operate with the loading door open. OPERATING INSTRUCTIONS Select Wash Temperature HOT, WARM, COLD. -
Page 20: Step 3: Add Laundry Supplies
Operation Step 3: Add Laundry Supplies Open dispenser drawer. Measure and add low sudsing, high efficiency (HE) detergent (1), bleach (2) and fabric softener (3) to the dispenser drawer (refer to Figure 17). Close dispenser drawer. IMPORTANT: If using non-HE detergent, avoid oversudsing by using 1/2 of the detergent manufacturer’s recommended amount. -
Page 21: Step 5: Insert Coin(S) Or Card
Insert card into opening. Figure 20 802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 6: Start Washer After vend price has been satisfied, push the START pad. DOOR MUST BE CLOSED TO START WASHER. -
Page 22: Indicator Lights
Are all the controls properly set? Have a qualified service person refer to the wiring diagram (located inside of washer control cabinet) and check for broken, loose or incorrect wiring. NOTE: Once a cycle has started, the door can only be opened by first unplugging the power cord and waiting one minute. -
Page 23: Operation Instructions For Netmaster Washers
802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 2: Close Loading Door Close loading door tightly. The washer will not operate with the loading door open. OPERATING INSTRUCTIONS Select Wash Temperature HOT, WARM, COLD. -
Page 24: Step 3: Add Laundry Supplies
Operation Step 3: Add Laundry Supplies Open dispenser drawer. Measure and add low sudsing, high efficiency (HE) detergent (1), bleach (2) and fabric softener (3) to the dispenser drawer (refer to Figure 24). Close dispenser drawer. IMPORTANT: If using non-HE detergent, avoid oversudsing by using 1/2 of the detergent manufacturer’s recommended amount. -
Page 25: Step 6: Insert Coin(S) Or Card
REMOVE CARD LED is lit. Figure 28 802733 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 7: Start Washer After vend price has been satisfied, push the START pad. DOOR MUST BE CLOSED TO START WASHER. - Page 26 Are all the controls properly set? Have a qualified service person refer to the wiring diagram (located inside of washer control cabinet) and check for broken, loose or incorrect wiring. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT...
-
Page 27: Maintenance
User-Maintenance Instructions Cold Weather Care If the washer is delivered on a cold day (below freezing), or is stored in an unheated room or area during the cold months, do not attempt to operate it until the washer has had a chance to warm up. -
Page 28: Reinstallation Of Shipping Materials
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Cleaning Foreign Object Trap The washer’s pump has a trap that may collect foreign objects. The trap may need to be cleaned if water is draining slower than usual. To clean: Disconnect washer from electrical supply. -
Page 29: Troubleshooting
• Foreign object trap in pump may be clogged. Clean the trap. Refer to Maintenance section. • Check that fill hoses are properly installed on the faucets and the washer’s water mixing Water Leaks valve. • Check the condition of the fill hoses. Replace fill hoses every five years. - Page 30 Vibrates/Moves Slightly • Make sure washer is installed on a solid, sturdy and level floor. The washer should not be installed on carpeting, soft tile, a platform or other weakly supported structures. • Make sure rubber feet are installed on all four leveling legs. Refer to Installation section, step 5.
-
Page 31: Contact Information
If replacement parts are required, contact the source from where you purchased your washer or call (920) 748-3950 for the name and address of the nearest authorized parts distributor. -
Page 34: Installer Checklist
Fast Track for Installing the Washer (Refer to the manual for more detailed information) ➊ • Position Washer Near Installation Area. CHECK ➋ • Connect Fill Hoses. CHECK ➌ (Non-Gravity Drain Models Only) • Connect Drain Hose to Drain Receptacle.
