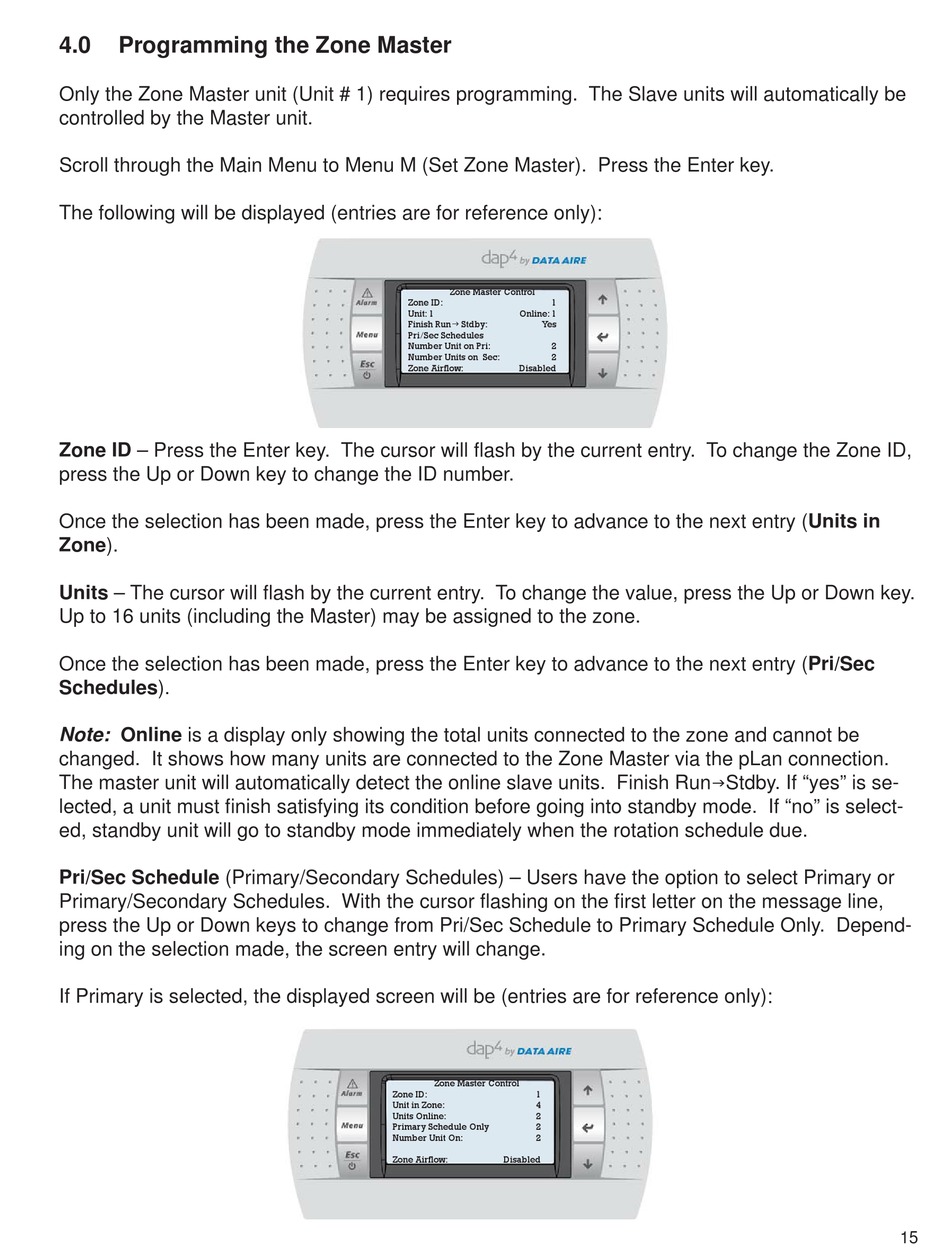

4.0
Programming the Zone Master
Only the Zone Master unit (Unit # 1) requires programming. The Slave units will automatically be
controlled by the Master unit.
Scroll through the Main Menu to Menu M (Set Zone Master). Press the Enter key.
The following will be displayed (entries are for reference only):
Zone ID – Press the Enter key. The cursor will fl ash by the current entry. To change the Zone ID,
press the Up or Down key to change the ID number.
Once the selection has been made, press the Enter key to advance to the next entry (Units in
Zone).
Units – The cursor will fl ash by the current entry. To change the value, press the Up or Down key.
Up to 16 units (including the Master) may be assigned to the zone.
Once the selection has been made, press the Enter key to advance to the next entry (Pri/Sec
Schedules).
Note: Online is a display only showing the total units connected to the zone and cannot be
changed. It shows how many units are connected to the Zone Master via the pLan connection.
The master unit will automatically detect the online slave units. Finish Run
lected, a unit must fi nish satisfying its condition before going into standby mode. If "no" is select-
ed, standby unit will go to standby mode immediately when the rotation schedule due.
Pri/Sec Schedule (Primary/Secondary Schedules) – Users have the option to select Primary or
Primary/Secondary Schedules. With the cursor fl ashing on the fi rst letter on the message line,
press the Up or Down keys to change from Pri/Sec Schedule to Primary Schedule Only. Depend-
ing on the selection made, the screen entry will change.
If Primary is selected, the displayed screen will be (entries are for reference only):
Zone Master Control
Zone ID:
1
Unit: 1
Online: 1
Finish Run Stdby:
Yes
Pri/Sec Schedules
Number Unit on Pri:
2
Number Units on Sec:
2
Zone Airflow:
Disabled
Zone Master Control
Zone ID:
1
Unit in Zone:
4
Units Online:
2
Primary Schedule Only
2
Number Unit On:
2
Zone Airflow:
Disabled
Stdby. If "yes" is se-
15
